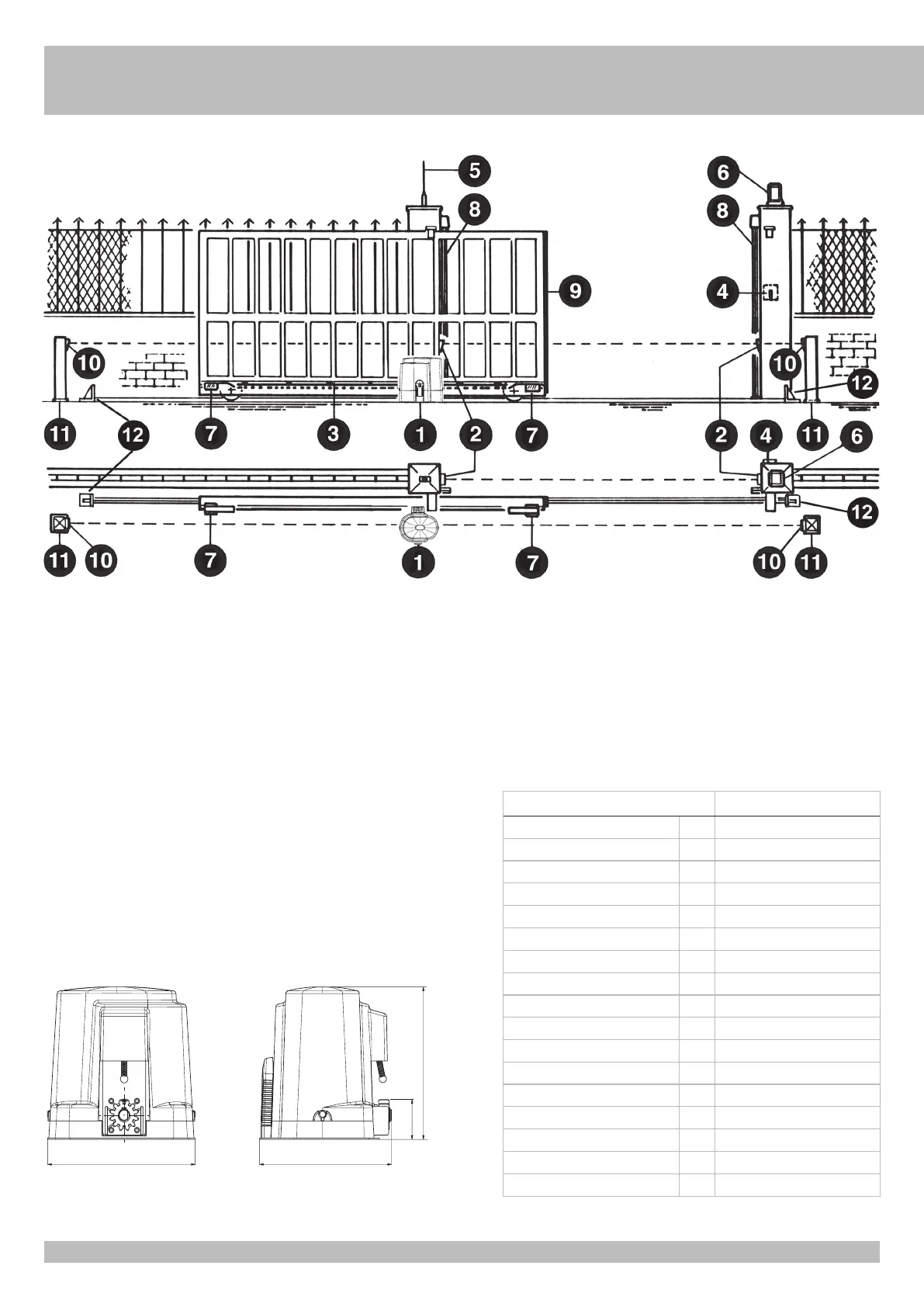

SYSTEM LAY-OUT
1 - K500 operating device
2 - External photocells
3 - Rack of Module 4
4 - Key selector
5 - Radio antenna
6 - Blinker
7 - Limit switch plate (cams)
8 - Mechanical strip
9 - Pneumatic strip or Fotocosta
10 - Internal Photocells
11 - Photocell columns
12 - Mechanical stops
TECHNICAL DATA
K500
Max. leaf weight kg 500
Rack 4
EEC Power supply 230V~ 50Hz
Thrust force with constant turns
N 400
Max torque Nm 9,5
Motor capacity W 229
Power absorbed A 1,21
Capacitor µF 10
Normative cycles 230V/50Hz n° 12 - 30s/2s
Daily operations suggested n° 300
Service 60%
Guaranteed consecutive cycles
n° 25/5m
Grease COMLUBE LHITGREASE EP/GR.2
Weight of electroreducer kg 8
Noise db <70
Working temperature °C -10 ÷ +55
Protection IP 54
Measurements in mm
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of
500 kg / 4900 lbs.
The irreversibility of this operating device allows you to avoid using any electric lock
for an effective closing of the gate. The motor is protected by an heat probe, that
temporary interrupts the operating cycle in case of prolonged use.
