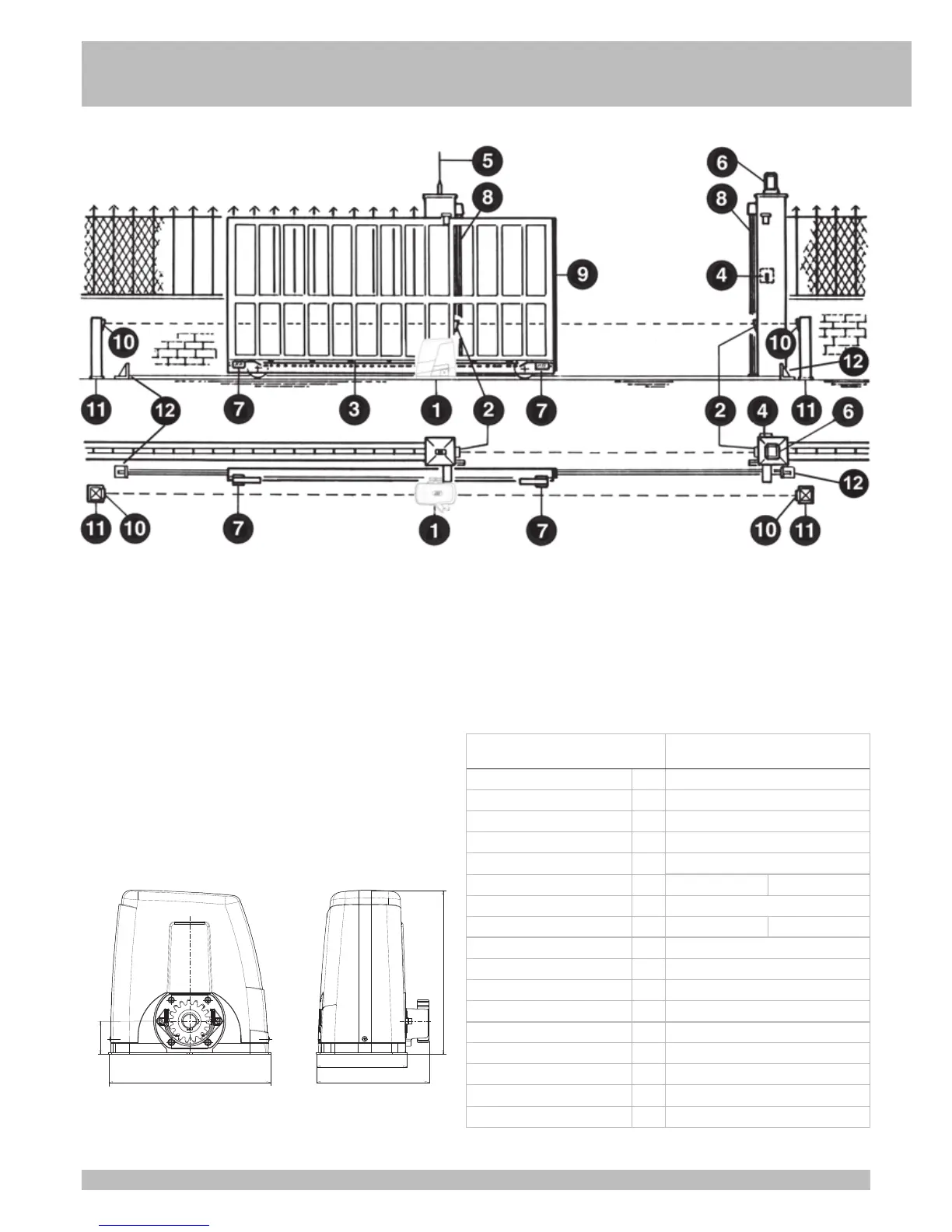

SYSTEM LAY-OUT
1 - K400 operating device
2 - External photocells
3 - Rack of Module 4
4 - Key selector
5 - Radio antenna
6 - Blinker
7 - Limit switch plate (cams)
8 - Mechanical strip
9 - Mechanical strip
10 - Internal Photocells
11 - Photocell columns
12 - Mechanical stops
TECHNICAL
DATA
K400
Max. leaf weight kg 400
Operating speed m/s 0,15÷0,33
torque Nm 434
Thrust force with constant turns
N 14,7
Rack module
M 4
Power supply 230V~ 50Hz 120V~ 60Hz
Motor capacity W 70
Power absorbed A 1 2
Normative cycles n° ∞ - 30s/2s
Daily operations suggested n° 78
Service % 100
Guaranteed consecutive cycles
n° 16/5m
Grease COMLUBE LHITGREASE EP/GR.2
Weight of electroreducer kg 9,8
Noise db <70
Working temperature °C -10 ÷ +55
Protection IP 54
Measurements in mm/inch
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of 400
kg / 881 lbs.
The irreversibility of this operating device allows you to avoid using any electric lock for
an effective closing of the gate.
