RIB T2 User Manual
5
of 1
of 1 rating
Go to English
48 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
F
13
13
T2
cod.
AC07086
T2
CRX
cod.
AC07085

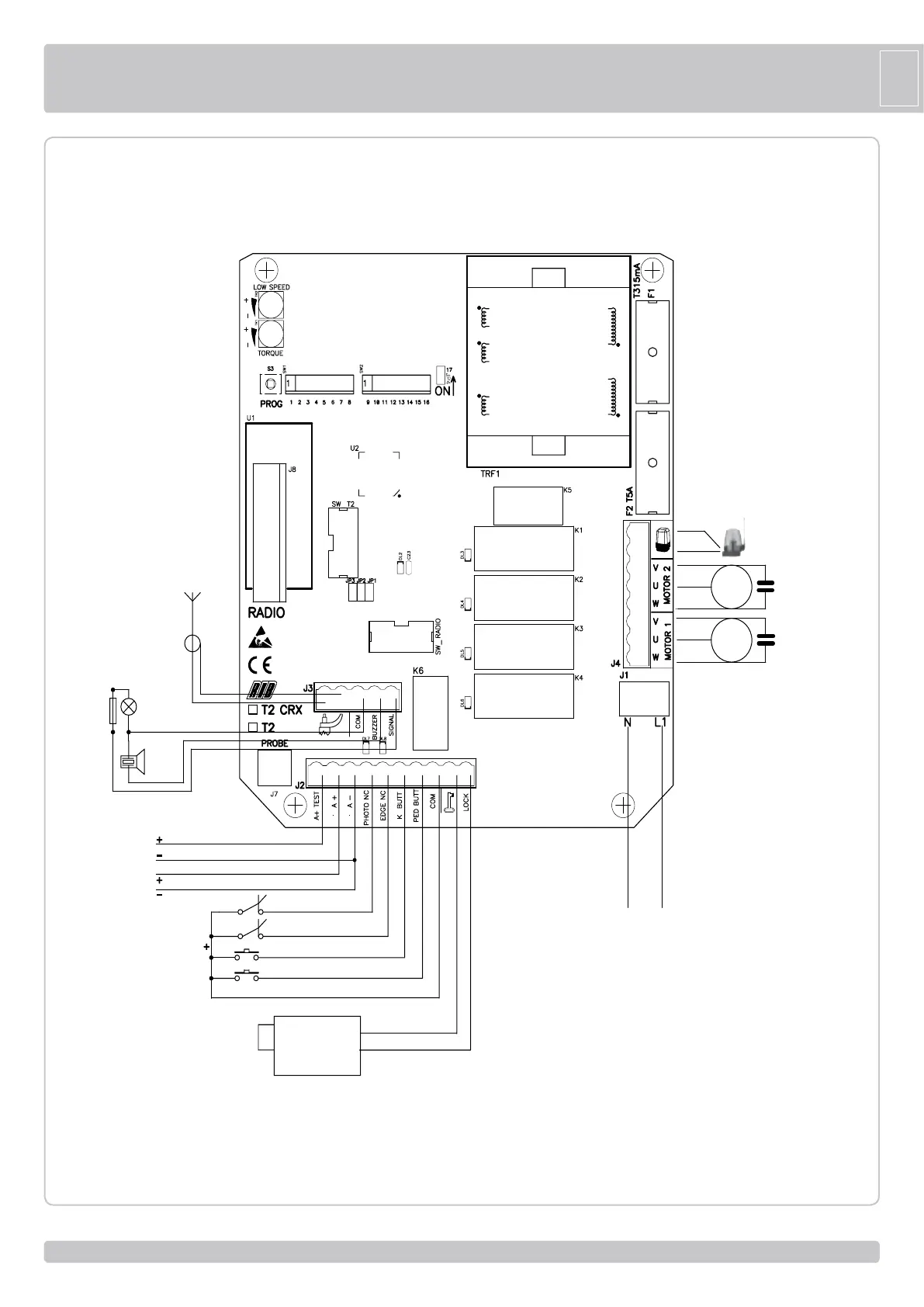

BRANCHEMENTS
ÉLECTRIQUES
+
+
-
-
+
R=2,2KΩ
BUZZER
+
-
MOTOR 1
MOTOR 2
ALIMENTATION
230Vac
50 Hz
ANTENNE
ENVELOPPE
ANTENNE
SIGNAL
24
Vdc pour
AUTOTEST
POUR
CORDON
DE
SICURITE
24
Vdc pour
ACCESSOIRES
PHOTOCELLULES
SERRURE
ÉLECTRIQUE
CORDON
PAS A
PAS
PIETON
COMMUN
FEU
CLIGNOTANT
CONDENSATEUR
M2
CONDENSATEUR
M1
12
14
Table of Contents
Safety Instructions for Installation
3
Collegamenti Elettrici
5
Branchements Électriques
13
Caractéristiques Techniques
18
Electric Connections
21
Conrol Panel Features
22
Settings
23
Motor Rotation Direction Check
23
Programming for 2 Motors
23
Programming for 1 Motor
24
Programming of Pedestrian Opening
24
Programming Radio Codes for Complete Opening
24
Programming Radio Codes for Pedestrian Opening
24
Clock Function
25
Pedestrian Command
25
Automatic Closing
25
Safety Strip
25
Technical Specifications
26
Troubleshooting
26
Buzzer
26
Gate Open Indicator
26
Optional Equipment
27
Lateral Support
27
Wi-Fi Devices
28
Conexiones Eléctricas
37
Características Técnicas
42
Esolución de Problemas
42
Soporte Lateral
43
Registro DI Manutenzione
45
Other manuals for RIB T2
Instructions
40 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the RIB T2 and is the answer not in the manual?
Ask a question
RIB T2 Specifications
General
Brand
RIB
Model
T2
Category
Control Unit
Language
English
