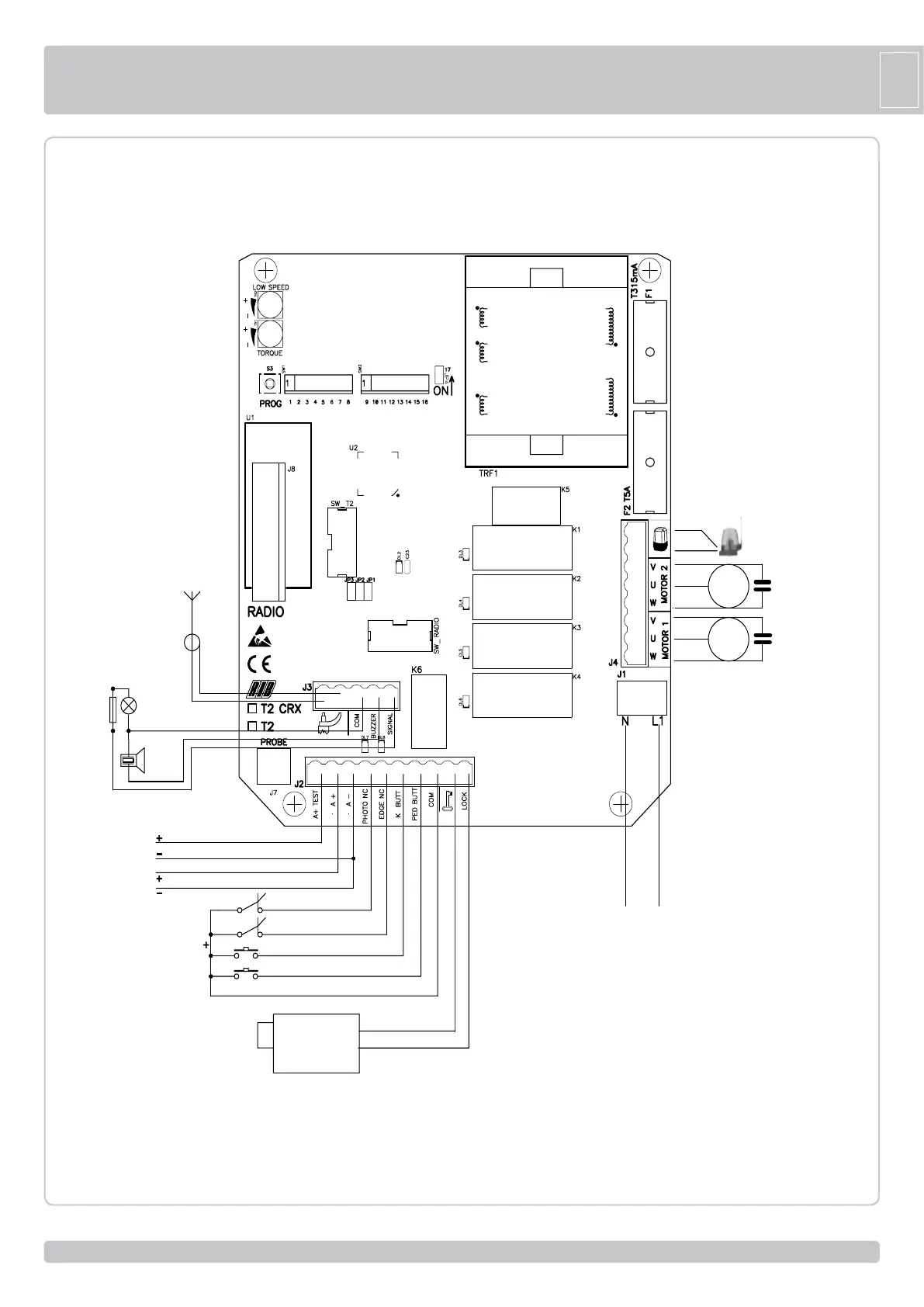

ELECTRIC
CONNECTIONS
G
B
T2
cod.
AC07086
T2
CRX
cod.
AC07085
+
+
-
-
+
R=2,2KΩ
BUZZER
+
-
MOTOR 1
MOTOR 2
POWER SUPPLY
AERIAL
COAX
SIGNAL
24
Vdc for
AUTOTEST
EDGE
24
Vdc for
ACCESSORY
SUPPLY
PHOTOCELL
ELECTRIC
LOCK
EDGE
K BUTTON
PED. BUTTON
COM
BLINKER
CAPACITOR
M2
CAPACITOR
M1
20
22
