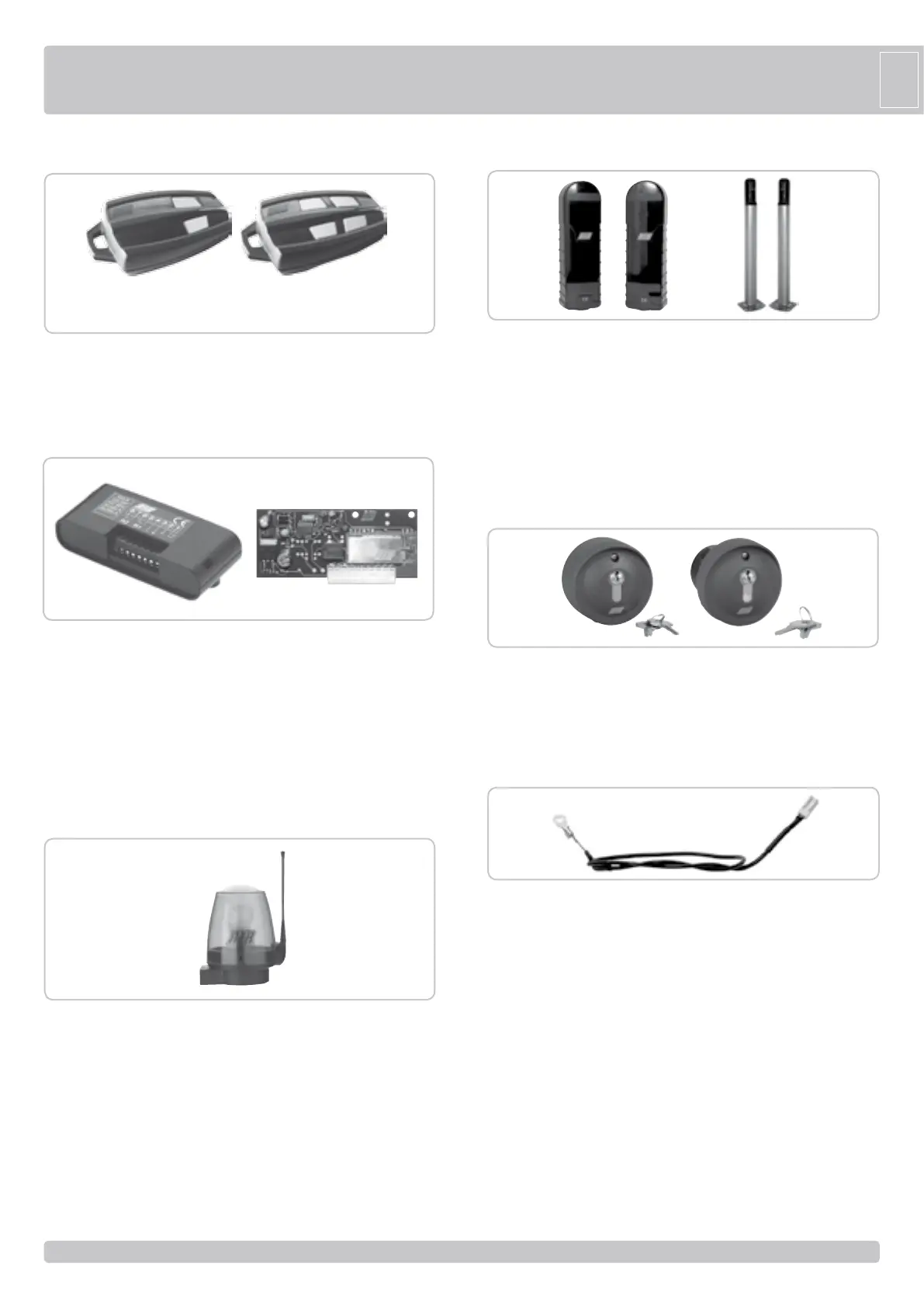

OPTIONALS - For the connections and the technical data of the fixtures follow the relevant handbooks.
CODE LEARNIG SYSTEM RADIORECEIVERS
RX433/A super eterodyne and coupling code ACG5055
RX433/A super eterodyne and terminal board code ACG5056
RX433/A 2CH super eterodyne, 2 channel and coupling code ACG5051
RX433/A 2CH super eterodyne, 2 channel and terminal board
code ACG5052
HEATER ONLY FOR KING ICE
The in-built thermal sensor of the KING ICE motor can be connected to
the terminal block J7 on the T2 control board. For the connection details
please refer to the KING ICE Instruction Manual.
The probe for motor heating is a device intended to be used in extremely
cold environment (up to -30°C) to avoid motor freezing.
Such device activates automatically when the gate is steady (the position
being irrelevant, provided it is not moving) at a ambient temperature
motor inferior to 10°C (found from the sensor of temperature PROBE).
The work of the heater is indicated by both the DL6 and DL7 leds for the
motor number 1, and by the DL4 and DL5 leds for the motor number 2.
When the motor is running the heating system is inoperative.
On elapsing of 10 seconds delay from gate stop, the heating system
gets activated (in case the environment temperature in the motor area
is below 10°C).
Upon achieving a 20°C temperature the heating system deactivates,
maintaining a constant environment temperature.
TECHNICAL DATA
Operation voltage 5Vdc
Resistance 10K ±2% (at 25°C)
Working temperature -30 ÷ +55°C
FIT SLIM
PHOTOCELLS for the wall-installation code ACG8032
PAIR OF COLUMNS FOR FIT SLIM code ACG8065
FIT SLIM photocells have synchronism function in AC current and
ranges of 20 m.
You can fit many photocell couples close together thanks to the optional
synchronizing circuit SYNCRO TRANSMITTER TX SLIM SYNCRO
code ACG8029 for more than 2 photocells couples (up to 4).
BLOCK
KEY SELECTOR FOR WALL-INSTALLATION code ACG1053
KEY SELECTOR TO BUILD-IN code ACG1048
SPARK
In order to make the systems mentioned above give the best
performances, you need to install an antenna tuned on the frequency
of the radio receiver installed.
N.B. Pay attention to not let the central wire of the cable to came
Into contact with the external copper sheath, since this would
prevent the antenna from working.
Install the antenna vertically and in such a way the remote control can
reach it.
SPARK BLINKER WITH IN-BUILT INTERMITTENT CARD
code ACG7059
LATERAL SUPPORT code ACG7042
SPARK ANTENNA 433 code ACG5452
RADIO TRANSMITTER SUN
SUN 2CH cod. ACG6052 SUN 4CH cod. ACG6054
SUN CLONE 2CH cod. ACG6056 SUN CLONE 4CH cod. ACG6058
