Ricoh Aficio MP 6002 User Manual

Entering the Path to the Destination Manually

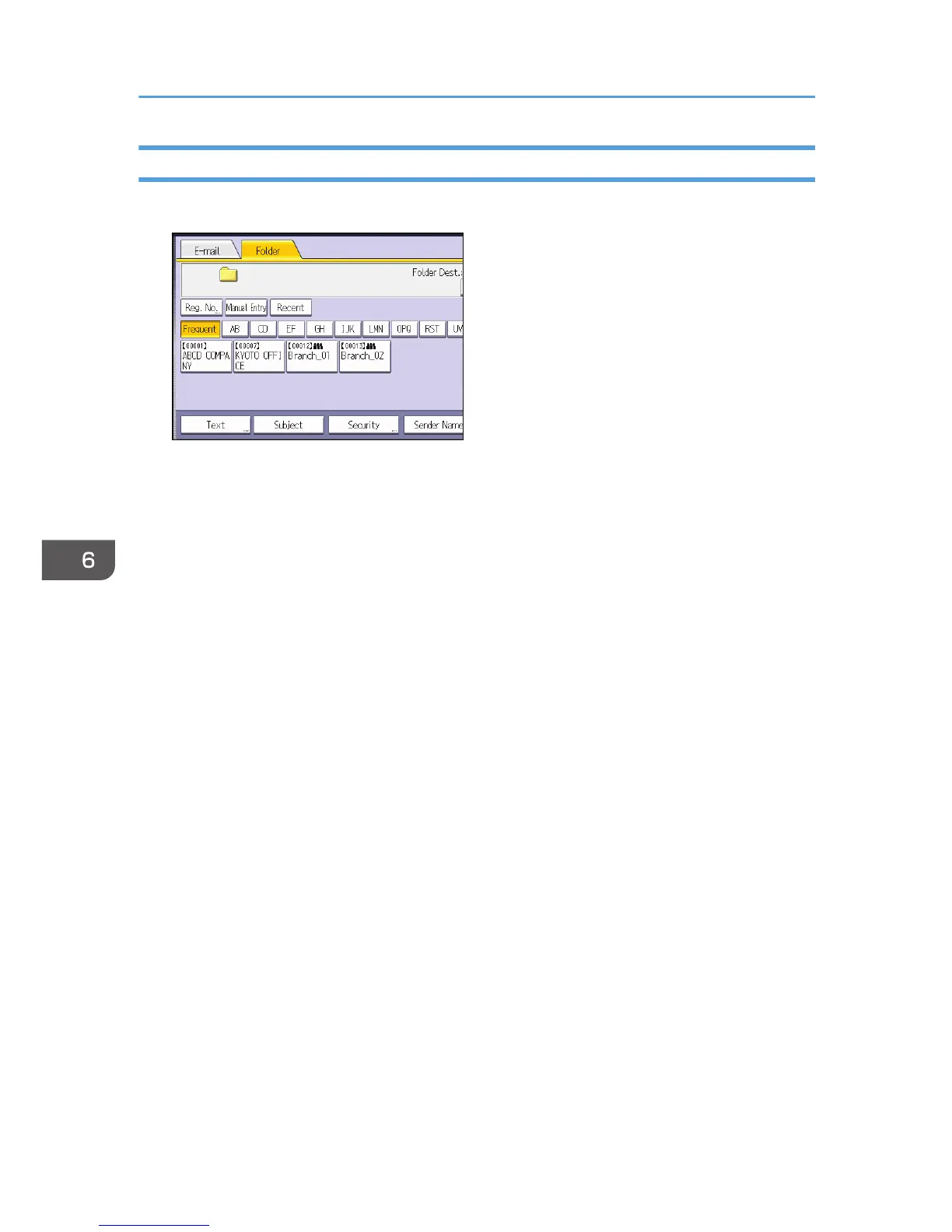

1. Press [Manual Entry].
2. Press [SMB].
3. Press [Manual Entry] on the right side of the path field.
4. Enter the path for the folder.
In the following example path, the shared folder name is "user" and the computer name is
"desk01":
\\desk01\user
5. Press [OK].
6. Depending on the destination setting, enter the user name for logging in to the computer.
Press [Manual Entry] to the right of the user name field to display the soft keyboard.
7. Depending on the destination setting, enter the password for logging in to the computer.
Press [Manual Entry] for the password to display the soft keyboard.
8. Press [Connection Test].
A connection test is performed to check whether the specified shared folder exists.
9. Check the connection test result, and then press [Exit].
10. Press [OK].
6. Scan
106

Ricoh Aficio MP 6002 Specifications

General

Print Speed	60 ppm
Print Resolution	1200 x 1200 dpi
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Copy Speed	60 cpm
Copy Resolution	600 x 600 dpi
Fax	Yes
Paper Capacity	Standard: 4, 300 sheets; Maximum: 8, 300 sheets
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Fax Transmission Speed	3 seconds per page
Memory (RAM)	1.5 GB
Power Source	120V/60Hz
Operating System Compatibility	Windows, Mac, Linux
Scan Speed	Up to 80 ipm (B/W), Up to 80 ipm (Color)
