SP1100S/Aficio SP1100S
- 10 -
2 - Installation

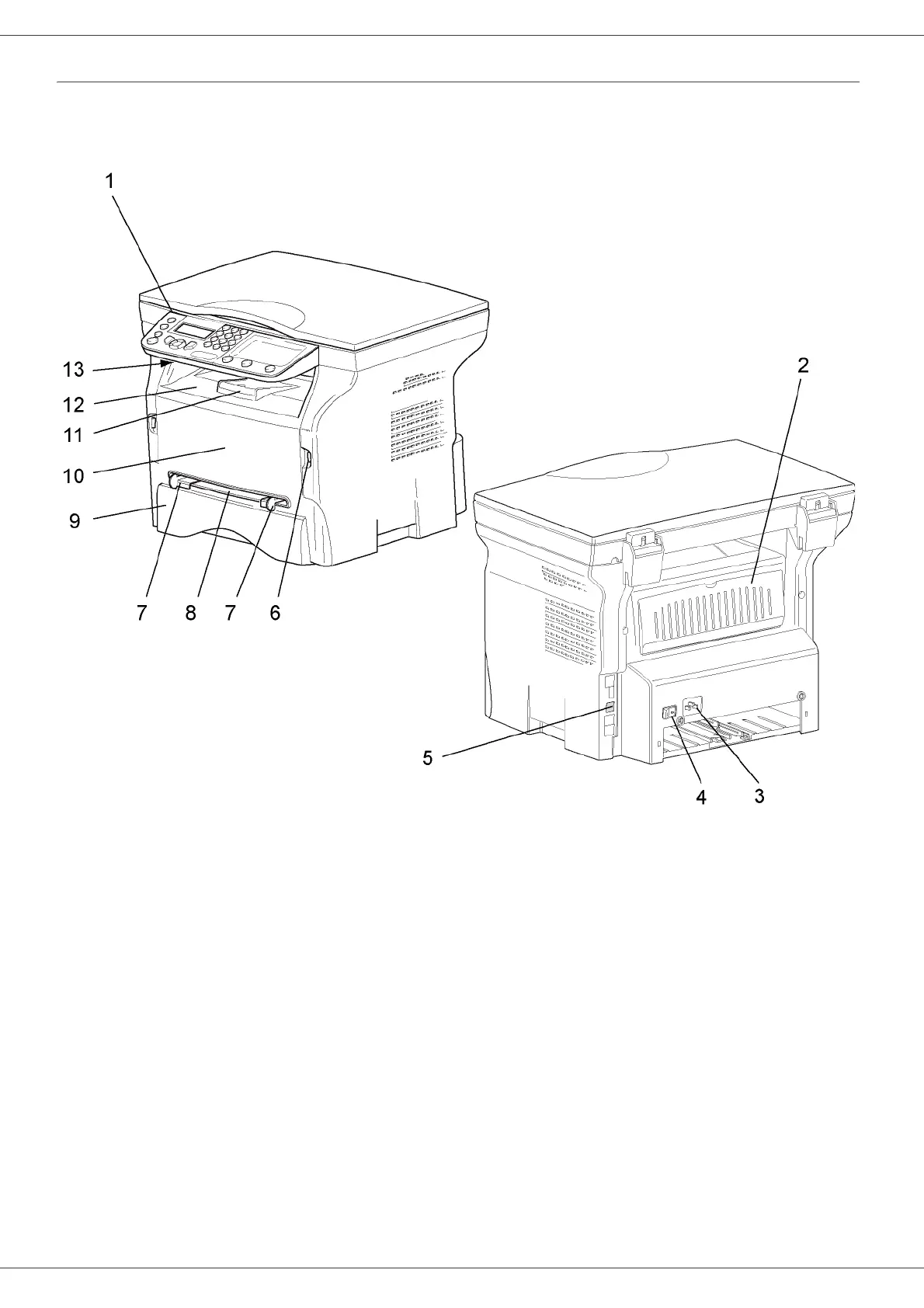

Terminal description
Front and Back sides
1. Control panel
2. Paper jam cover
3. Power supply cord connection
4. On/Off switch
5. Slave USB connection (for PC)
6. Master USB connection (USB key)
7. Manual paper feed setup guides
8. Manual input tray
9. Paper tray
10. Cartridge access cover
11. Fold-down stopper for paper delivery
12. Paper output
13. Smart card insertion point
