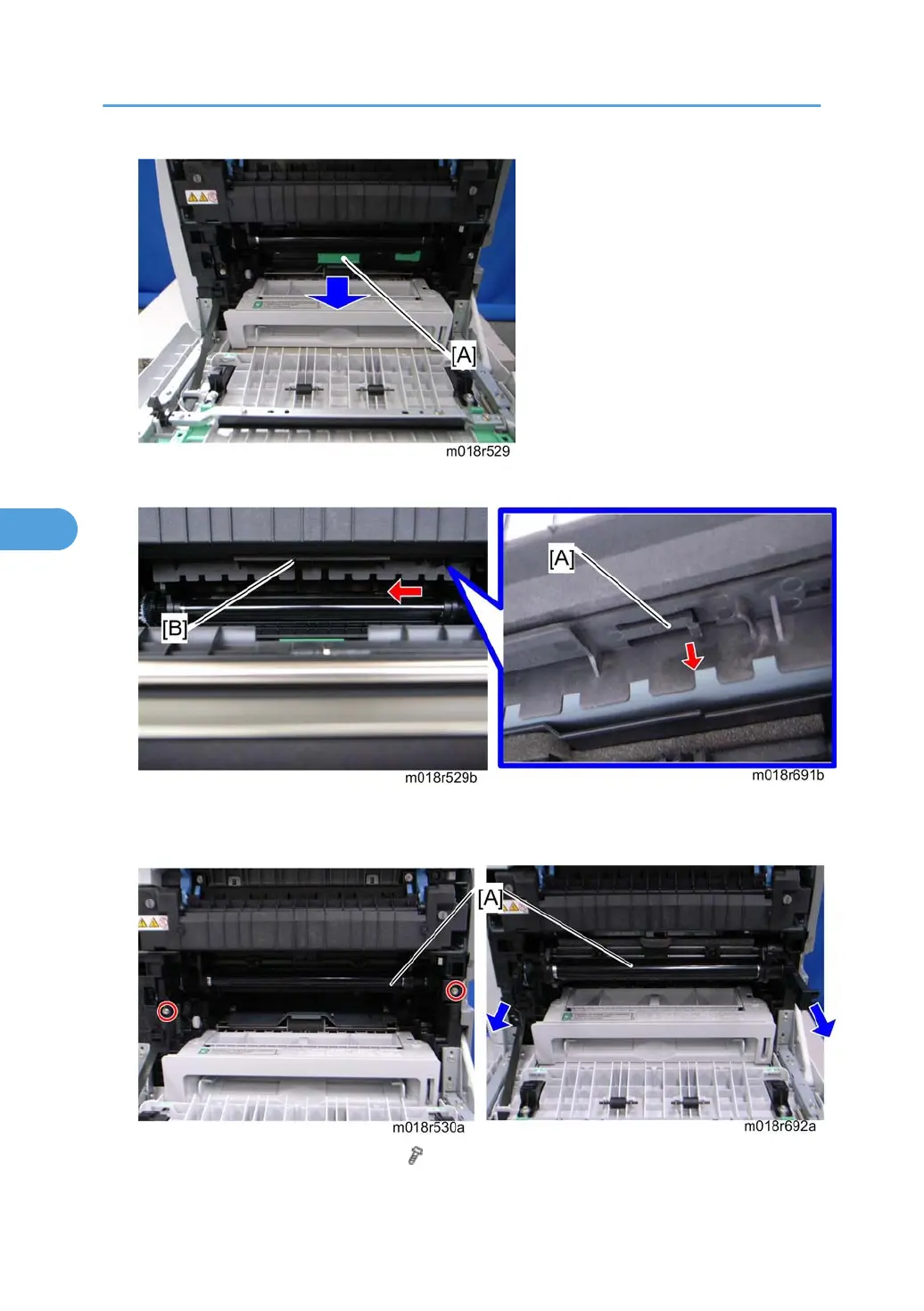

4. Pull out the waste toner bottle [A].
5. Release the hook [A] under the guide plate.
6. Move the guide plate [B] underneath the fusing unit to the left, and then remove it.
7. Pull out the image transfer belt unit [A] ( x 2).
5. Appendix: Machine Swap
