Ricoh Aficio SP C232DN - Waste Toner Bottle Set Sensor

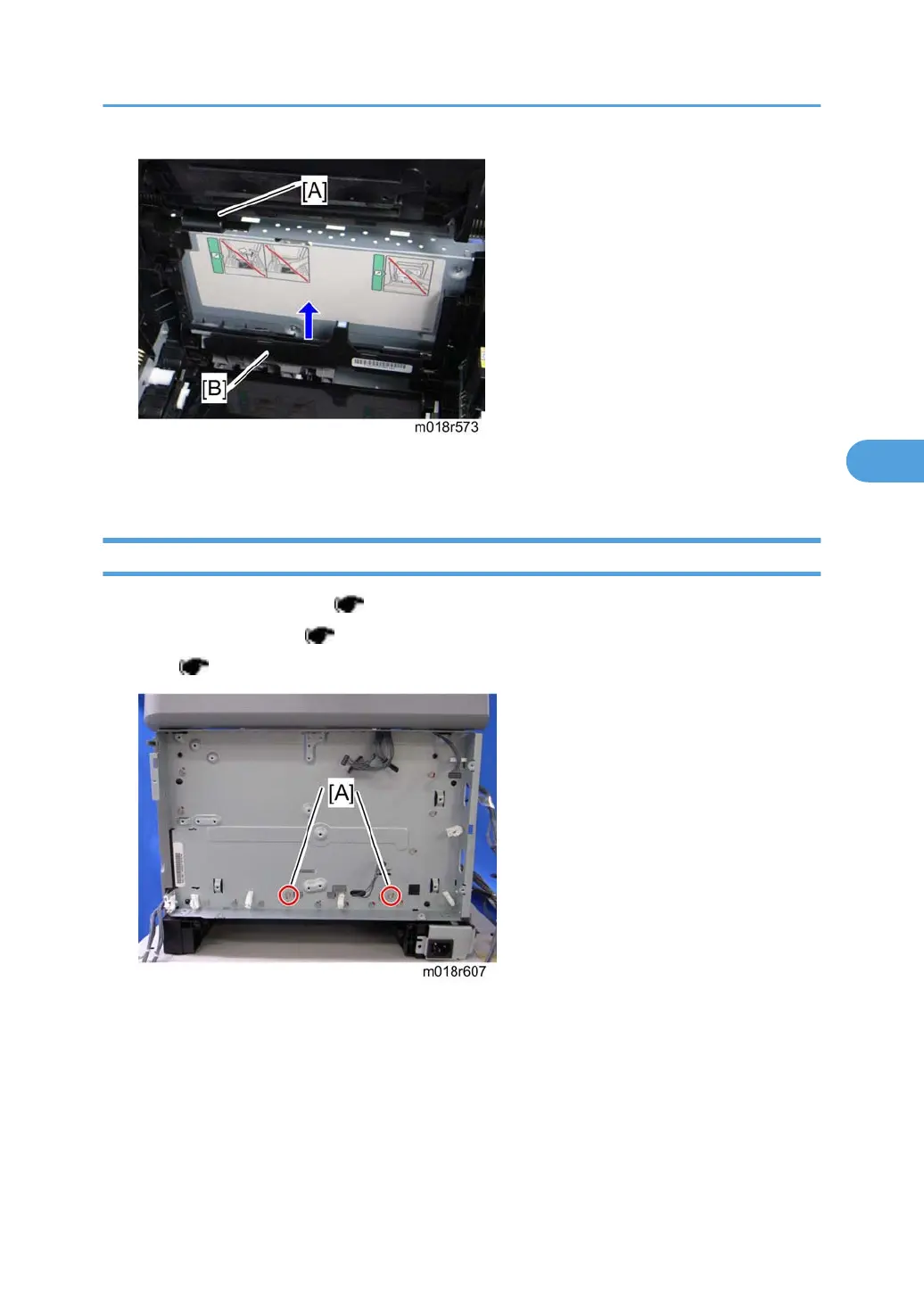

8. Harness cover [A] (hook)
9. TM sensor base [B]
Waste Toner Bottle Set Sensor
1. Remove all AIO cartridges. ( p.33)
2. Image transfer belt unit (
p.38)
3. EGB ( p.65)
4. Remove two screws [A] for the waste toner sensor base.
