When Reinstalling the Fusing Lamp

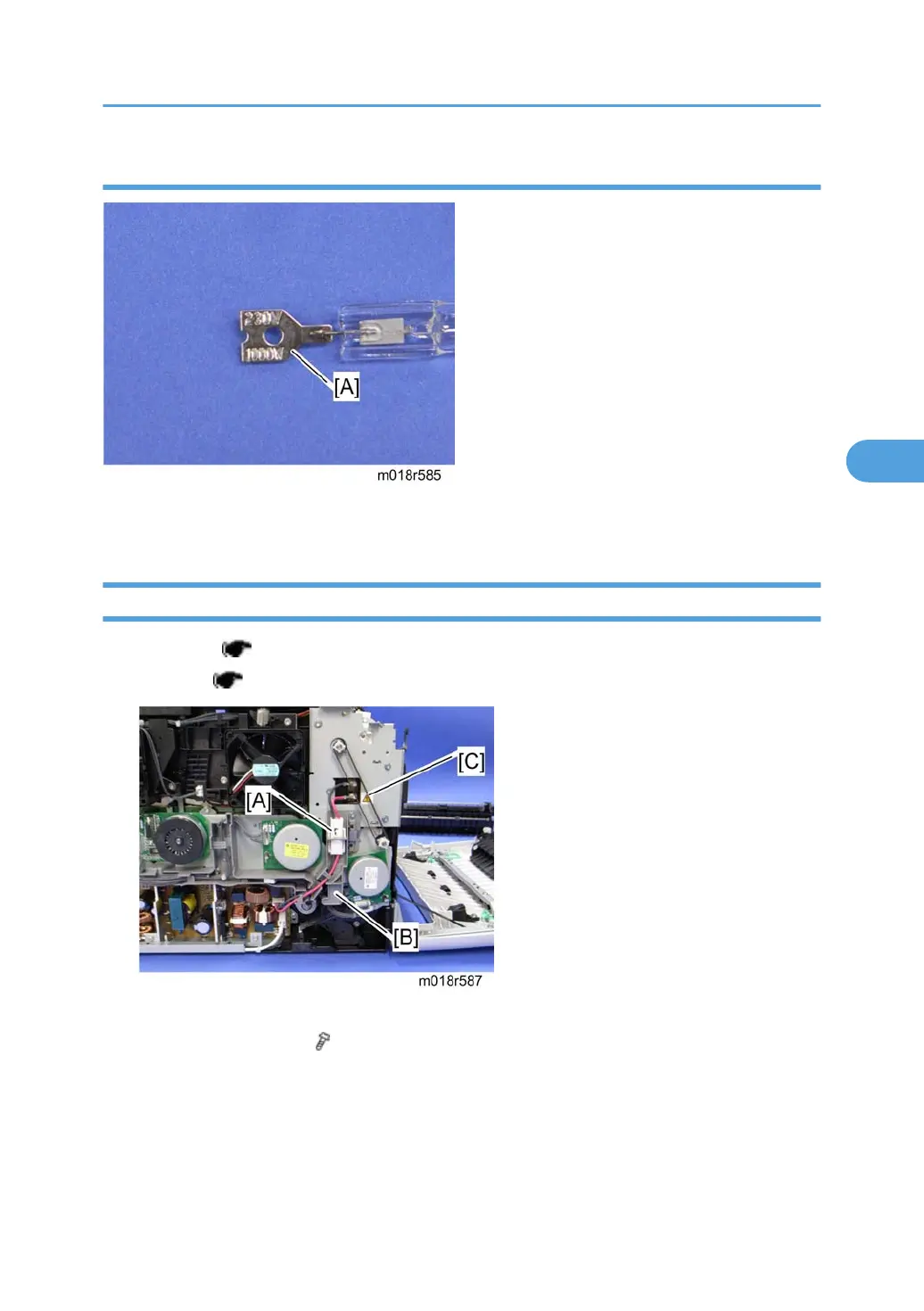

The terminal [A], which shows the voltage and power ratings, must be placed at the left side of the fusing
unit (fusing cable side).
Transport/Fusing Motor
1. Rear cover ( p.23)
2. Left cover ( p.25)
3. Disconnect the fusing connector [A] (hook).
4. Fusing harness guide [B] ( x 2)
5. Duplex timing belt [C]
Image Fusing
55
