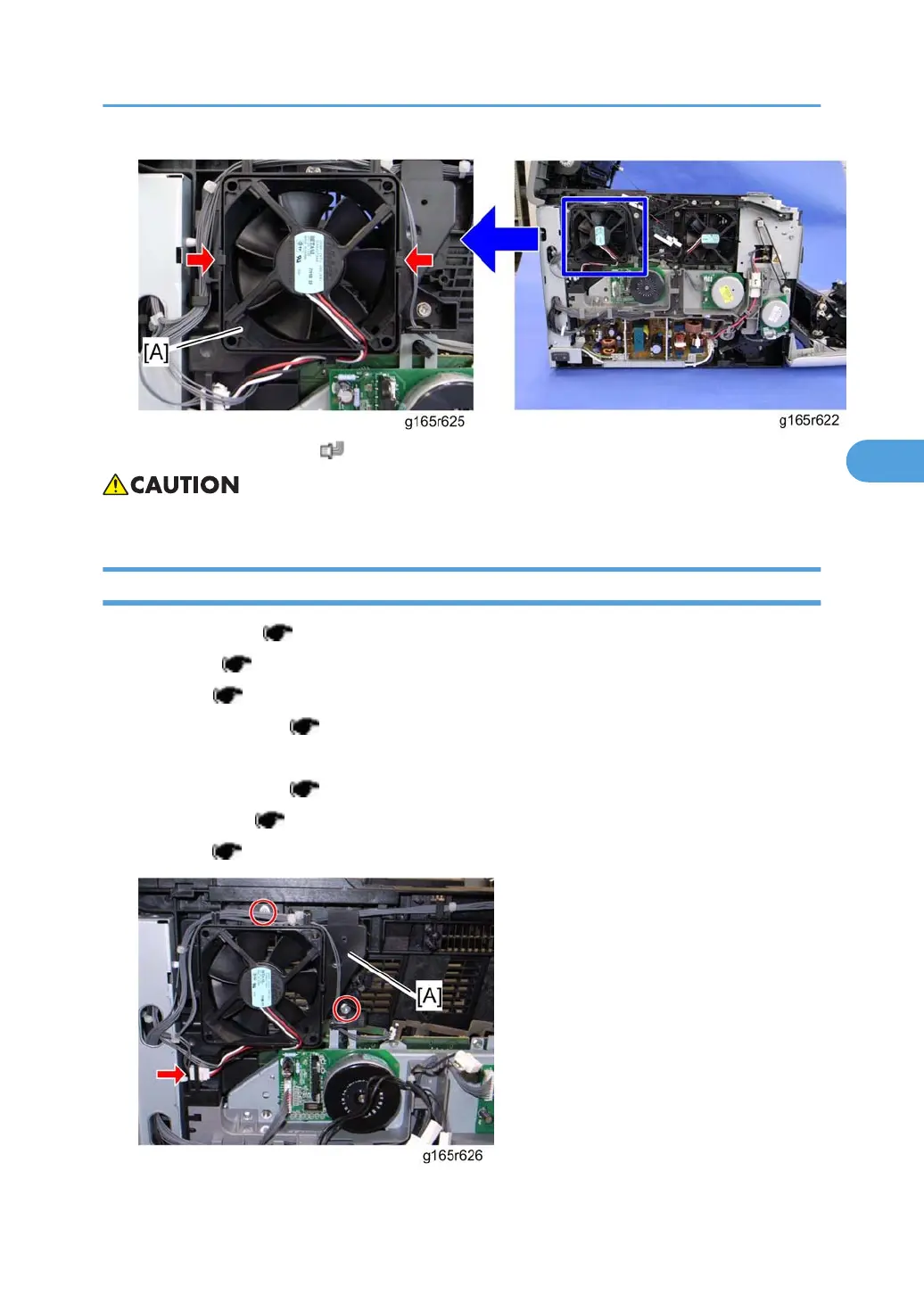

4. LSU fan motor [A] (hooks, x 1)
• Install the LSU fan motor with its decal facing the outside of the machine.
ID Chip Board
1. Operation panel ( p.24)
2. Rear cover ( p.23)
3. Left cover ( p.25)
4. Controller box cover ( p.64)
5. Disconnect the connector (CN305) on the EGB.
6. Interlock switch base ( p.67)
7. Fusing fan base ( p.67)
8. Drive unit ( p.33)
9. Take the harnesses aside around the LSU fan base [A].
Electrical Components
69
