Ricoh Aficio SP C232DN Field Service Manual

Paper Feed

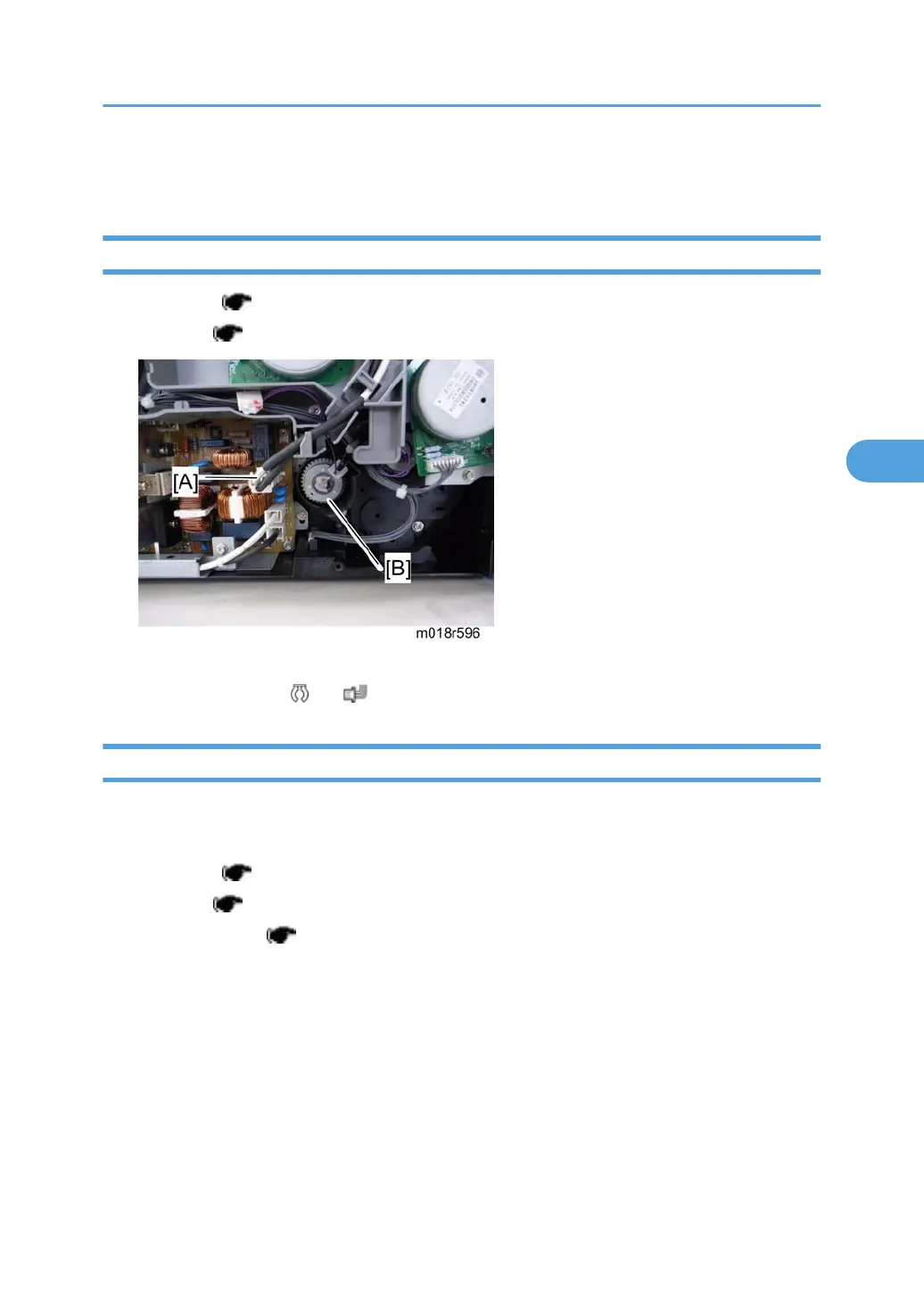

Paper Feed Clutch
1. Rear cover ( p.23)
2. Left cover ( p.25)
3. Disconnect the fusing relay harness [A] (hook).
4. Paper feed clutch [B] ( x 1, x 1)
Paper Feed Roller
1. Remove all the AIO cartridges.
2. Remove the waste toner bottle.
3. Rear cover ( p.23)
4. Left cover ( p.25)
5. Paper feed clutch ( p.57)
6. Close the top cover and front cover.
7. Pull out the tray.
Paper Feed
57
4
