6. Remove a spring [B] ( x 1)
• Never remove the spring with the front cover open.
• If removing the spring which is extending, it may leap to the unexpected direction and cause a
slight injury.
7. Open the front cover.

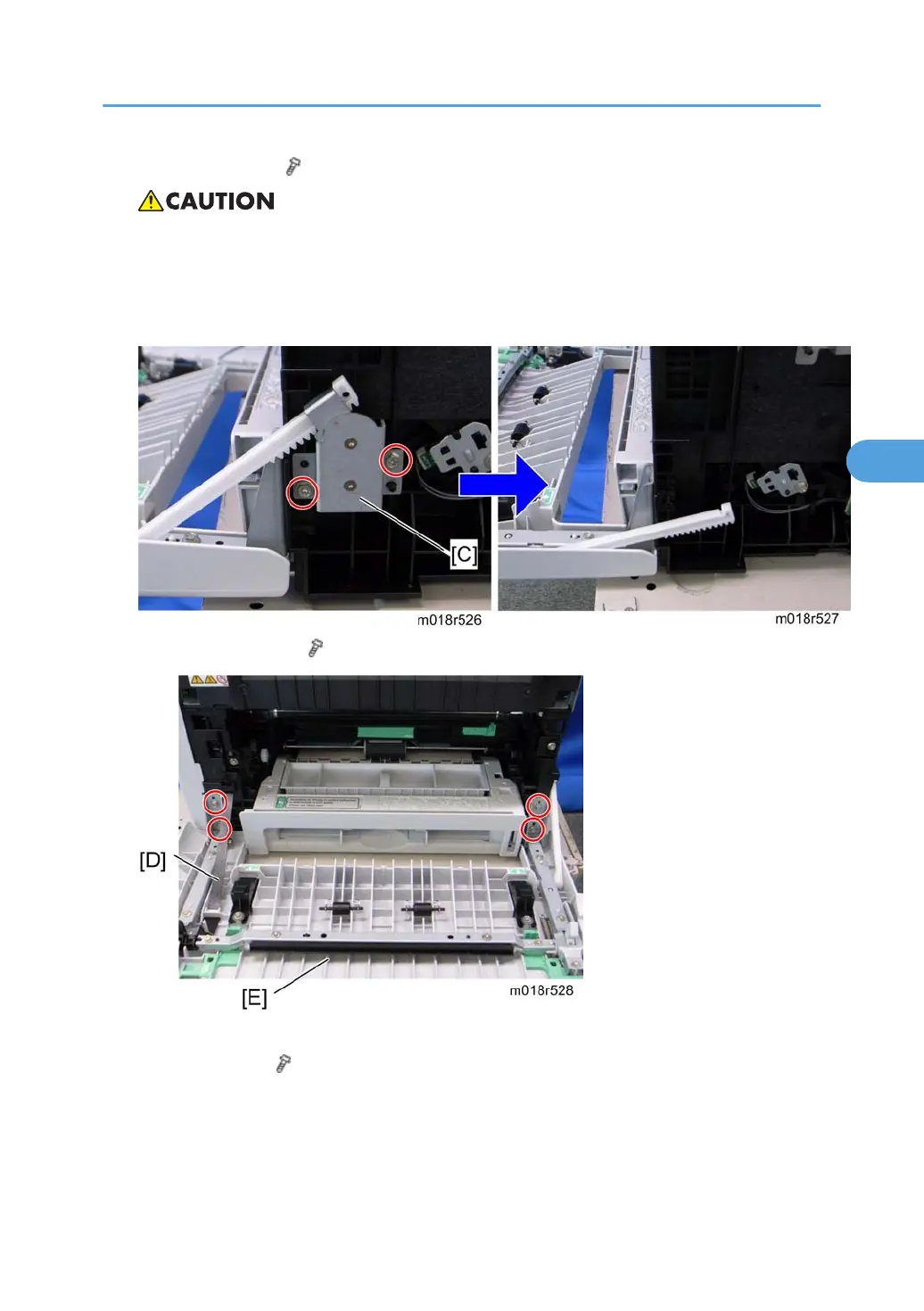

8. Cover link gear unit [C] ( x 2)
9. Release the belt [D]
10. Front cover unit [E] ( x 4)
Exterior Covers
