Ricoh Aficio SP C232DN - Page 31

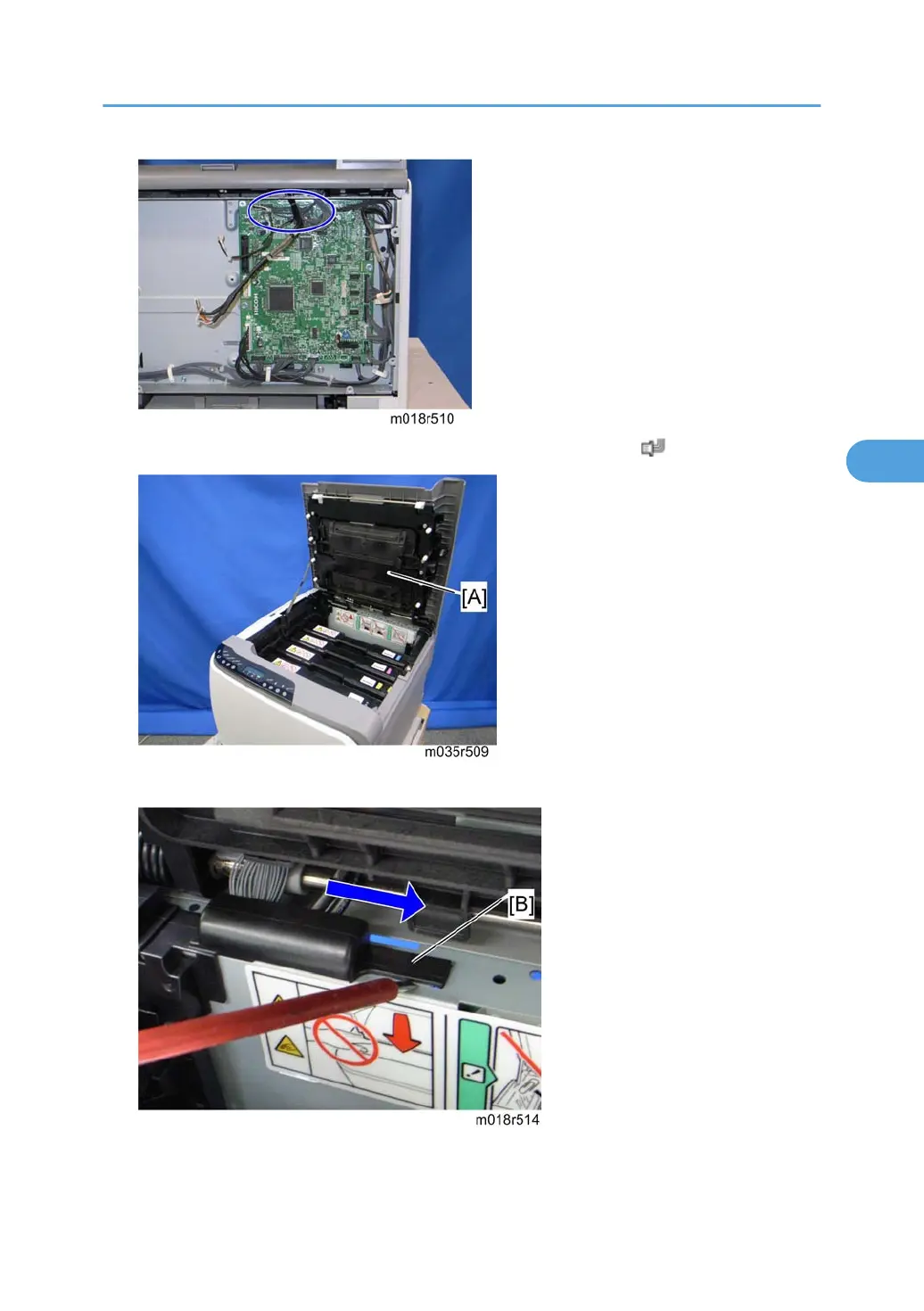

4. Disconnect the three harnesses from CN301, 302 and 303 on the EGB ( x 3).
5. Open the top cover [A].
6. Lift up the hook [B] of the harness guide at the rear-left frame and slide the harness guide to the right.
Laser Optics
29
4
