5. Remove the mylar fixing three hooks of the waste toner bottle set sensor.

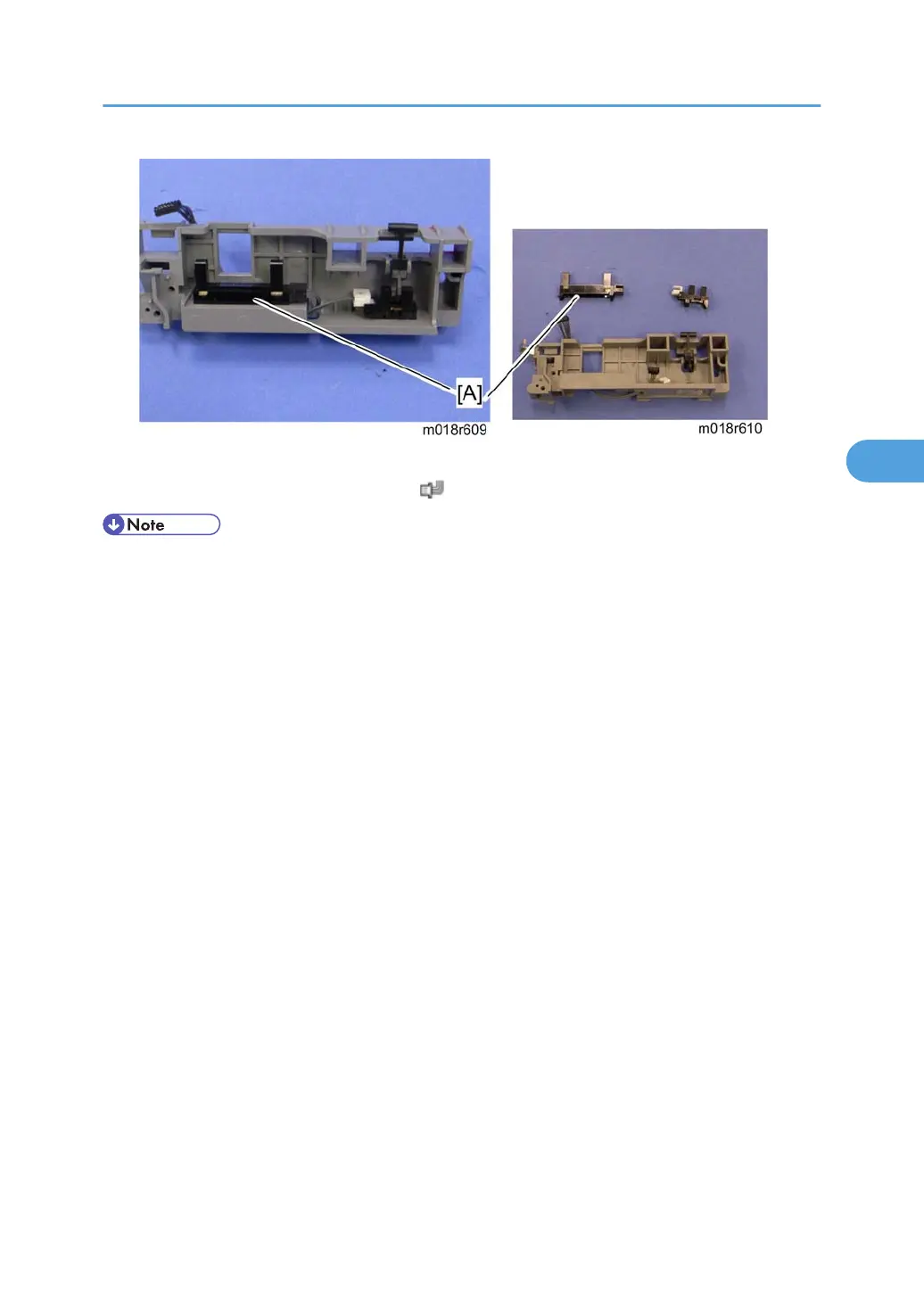

6. Waste toner overflow sensor [A] (hooks, x 1)

• When reinstalling the waste toner overflow sensor, connect it to the black connector of the harness.

Image Transfer
