4.Replacement and Adjustment
93
Electrical Components
Main Board
Settings such as network settings and initial settings are registered in the flash memory on the main
board.
When replacing the main board, ask the customer to back up/restore the settings in Administrator Tools
in the WIM.
Backup Setting:
Back up Network Settings
Back up Menu Settings
Back up Scan Destination
Back up Address Book
Main Board (Printer Models)
1. Remove the left cover (Left Cover).

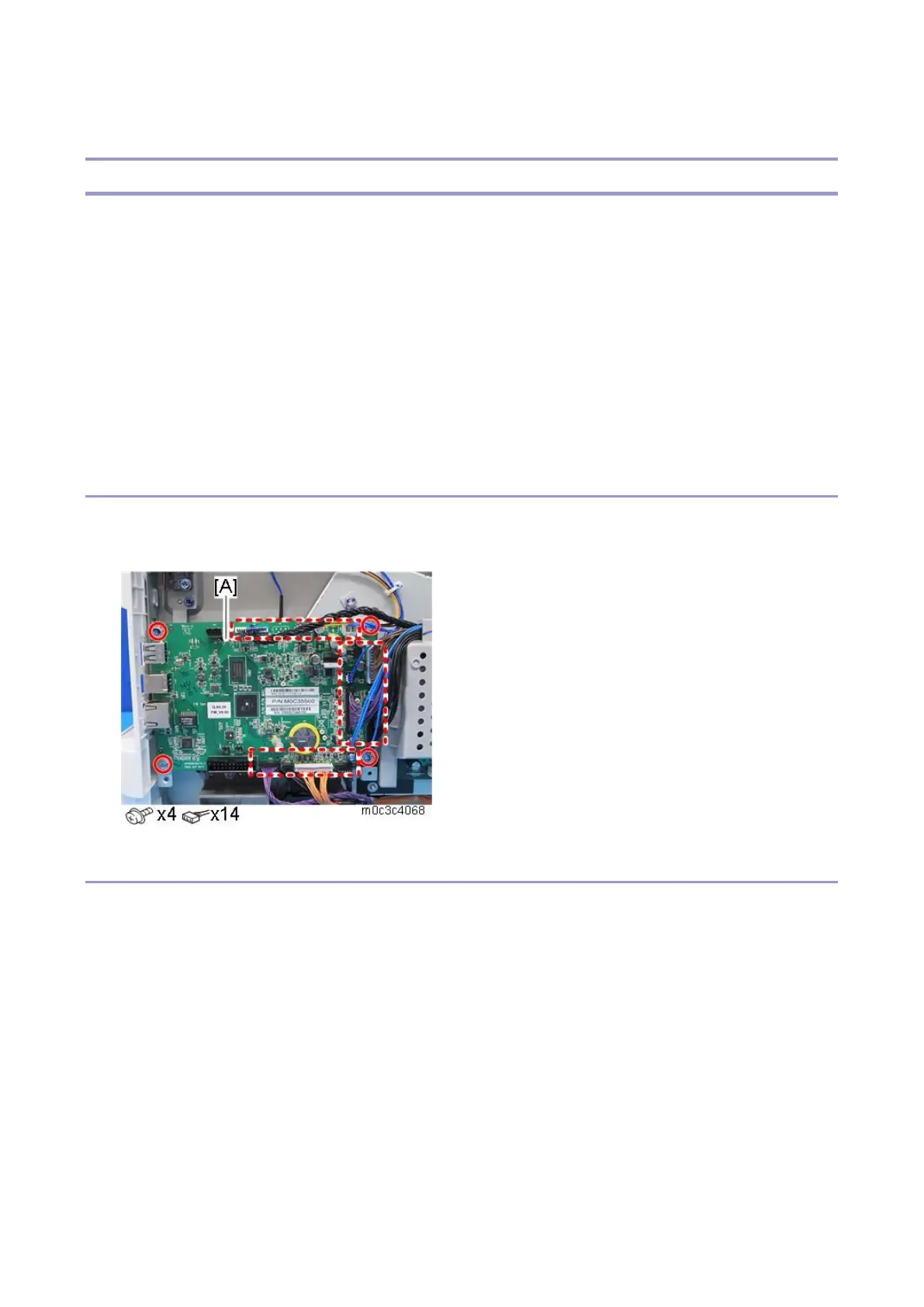

2. Remove the main board [A].
Main Board (MF Four-line LCD Models)
1. Remove the left cover (Left Cover).
