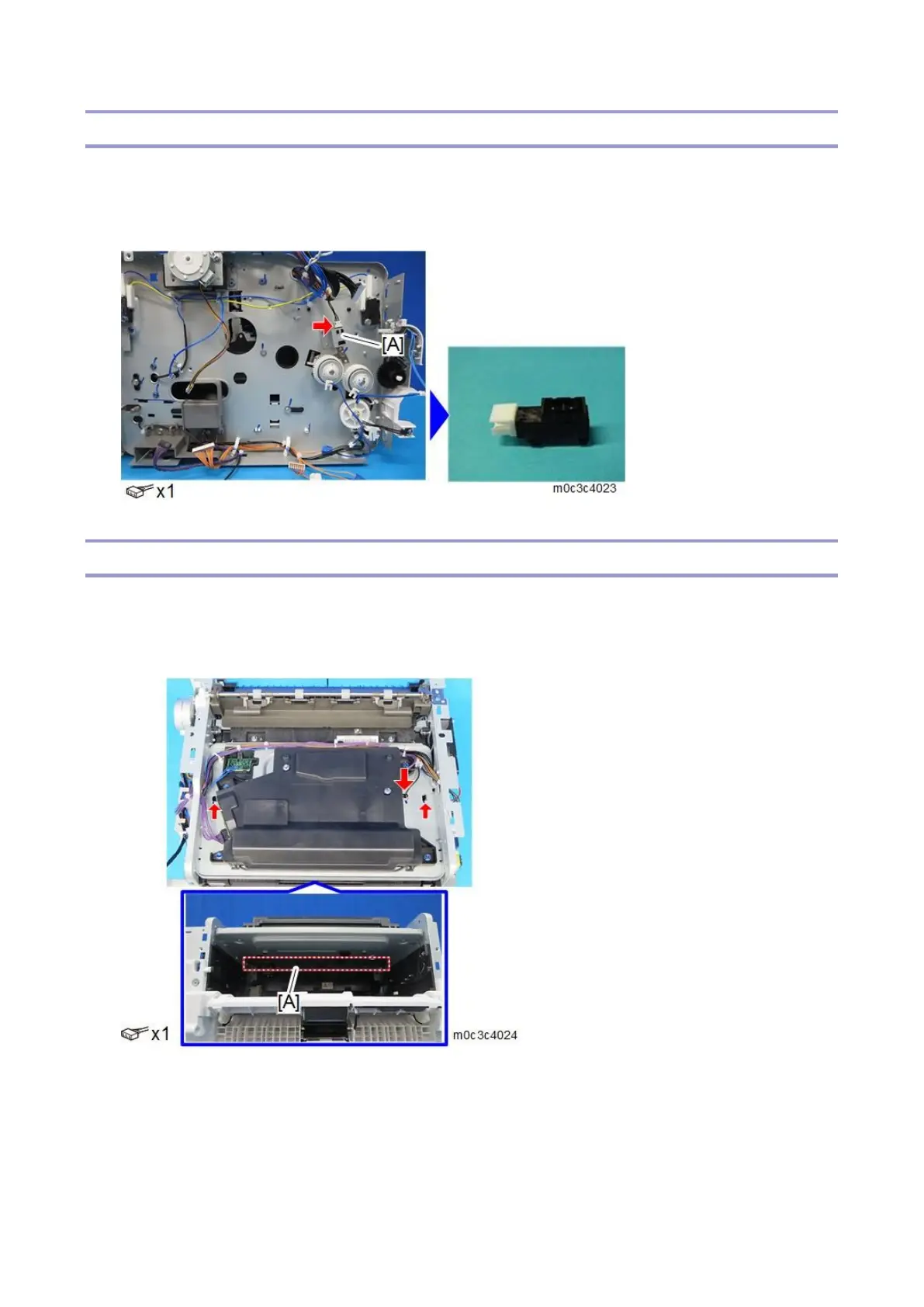

Toner End Sensor
1. Remove the left cover (Printer models: Left Cover MF models: Left Cover).
2. Remove the drive unit (Drive Unit).
3. Remove the toner end sensor [A].
Quenching Lamp
1. Remove the top cover (Printer models: Top Cover MF models: Top Cover).
2. Remove the AIO.
3. Remove the quenching lamp with the case [A] (2 hooks).
