Ricoh FAX1120L Field Service Manual

7.Detailed Descriptions
214
Scanner (for MF models)

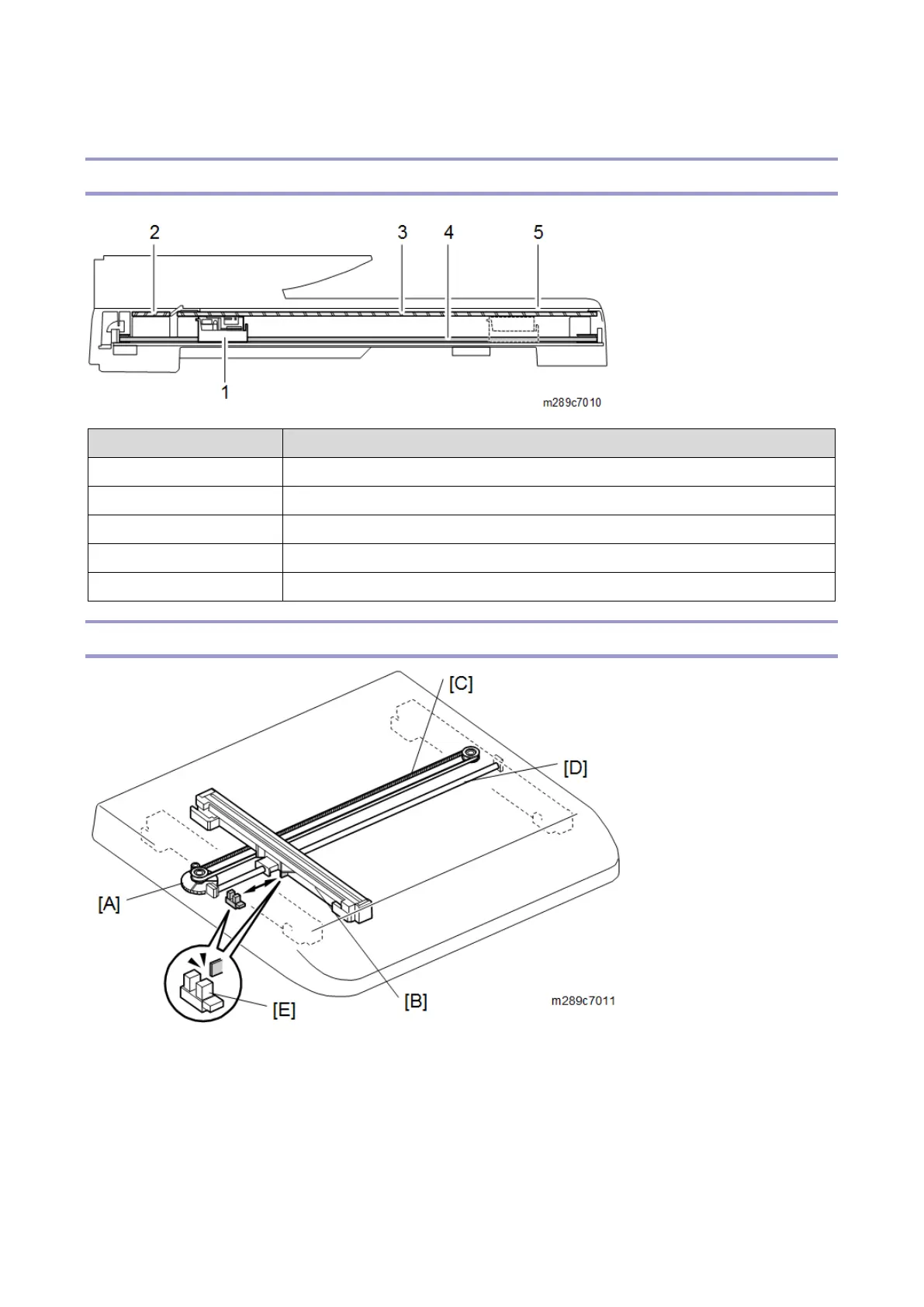

Overview
Callout
Item
1.
Scanner carriage unit
2.
DF exposure glass
3.
Scanner exposure glass
4.
Carriage drive shaft
5.
White sheet
Mechanism
The scanner motor [A] drives the scanner carriage unit [B] through gears and a timing belt [C]. The
scanner carriage unit moves along the carriage drive shaft [D]. The carriage home position sensor [E] in
the scanner detects the home position of the carriage unit when initializing the scanner or before/after
scanning. The scanner carriage unit moves to read the white sheet before every scan mode to adjust
the white level.

Ricoh FAX1120L Specifications

General

Type	Laser Fax
Print Speed	12 ppm
Resolution	600 x 600 dpi
Paper Size	A4
Dimensions	400 x 400 x 300 mm
Weight	10.5 kg
Modem Speed	33.6 kbps
Transmission Speed	3 seconds per page
Printing Method	Laser
Paper Tray Capacity	250 sheets
Document Memory	Up to 42 pages
