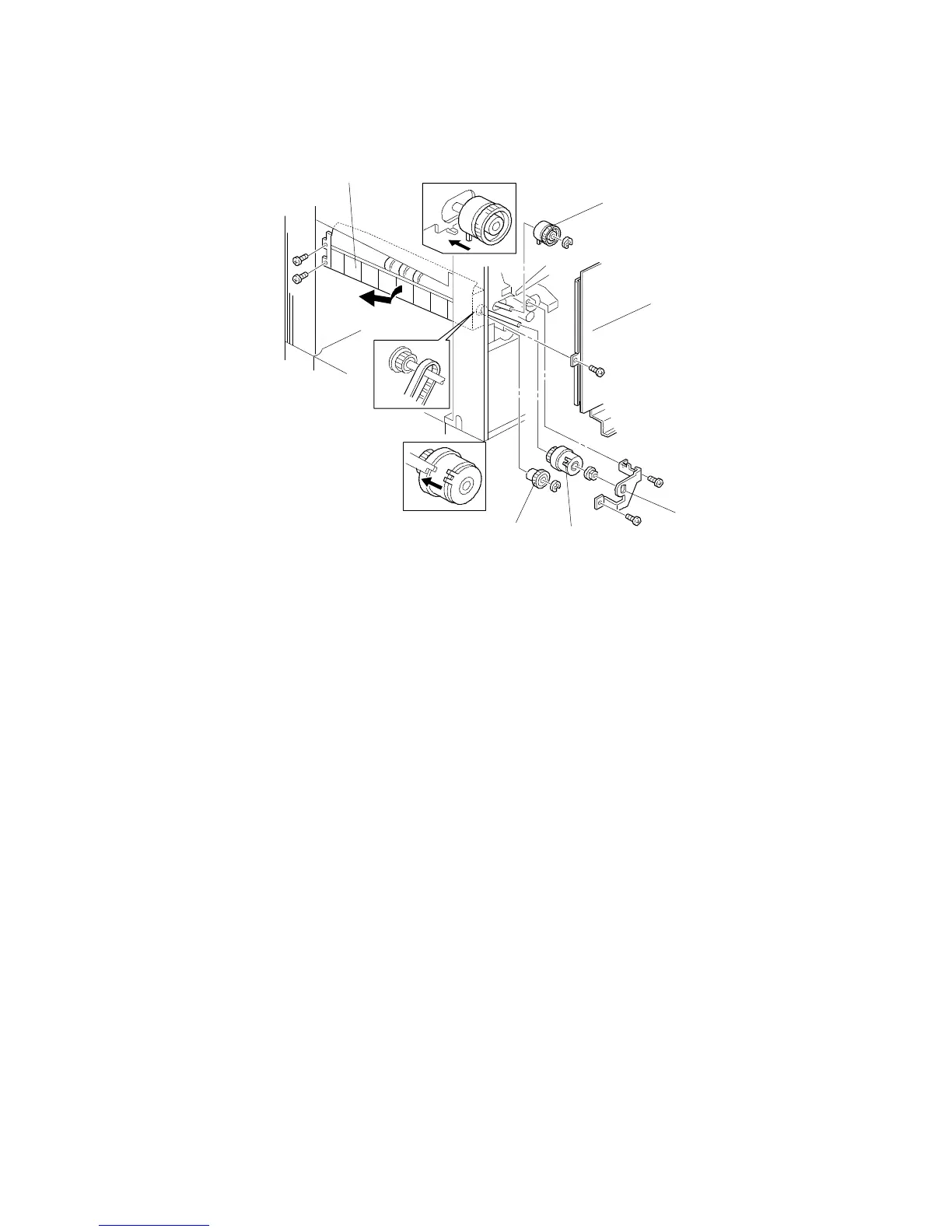

6.4 UPPER PAPER FEED UNIT REPLACEMENT
(A153/A155/A156)
1. Remove the lower paper feed unit (see "Lower Paper Feed Unit
Replacement").
2. Remove the main control board unit [A] (4 screws, all connectors).
3. Remove the bracket [B] (2 screws).
4. Remove the relay clutch [C] (1 connector, 1 bushing).
5. Remove the upper paper feed clutch [D] (1 E-ring, 1 connector).
6. Remove the separation roller drive gear [E] (1 E-ring).
7. Remove the upper paper feed unit [F] (2 screws, 1 connector).
[F]
[B]
[D][E]
FSM 5-35 FT5535/4527/4522
