7. LCT

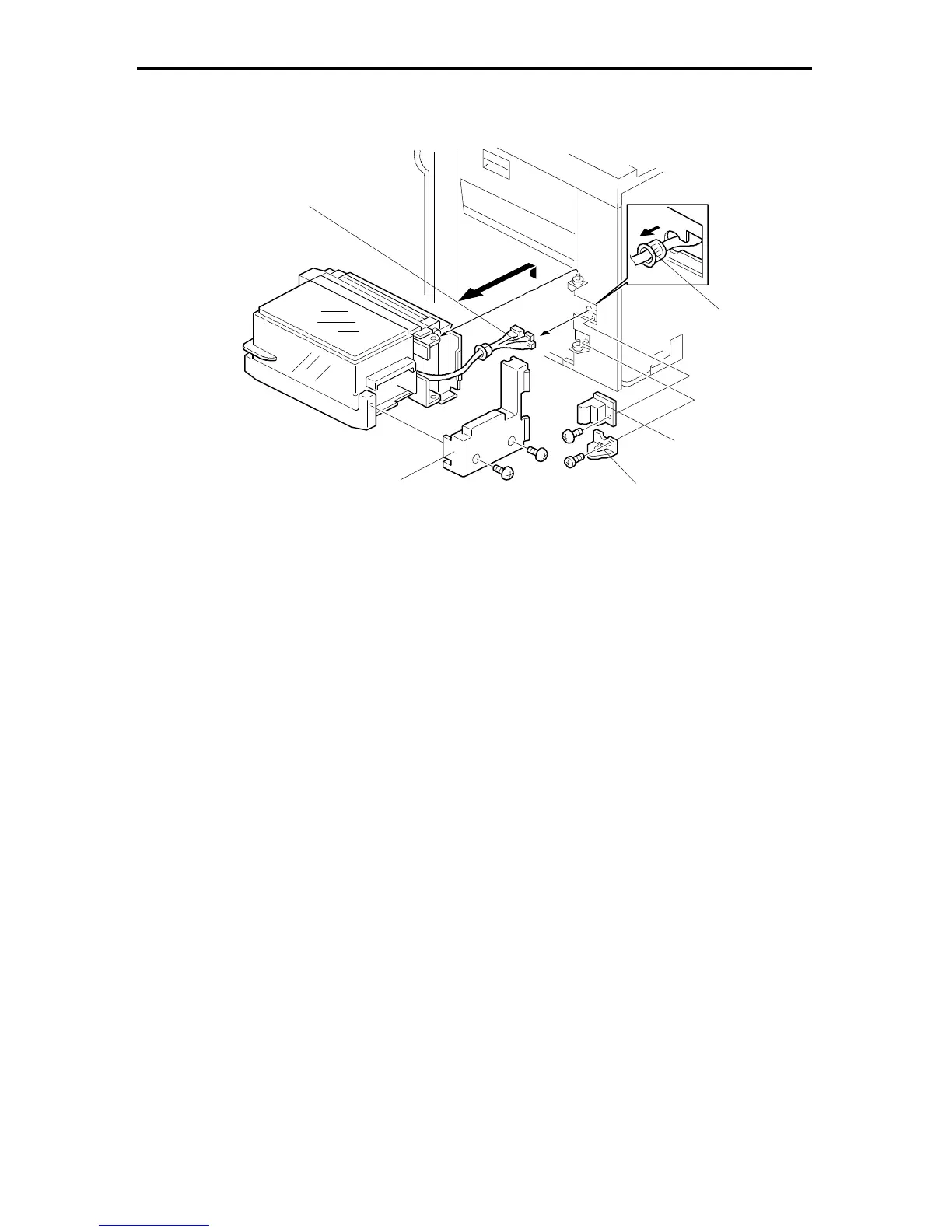

7.1 LCT UNIT REMOVAL
1. Remove the rear cover (see "Outer Cover Removal").
2. Remove the harness cover [A] (1 screw).
3. Remove the LCT’s rear cover [B] (2 screws).
4. Remove the stopper bracket [C] (1 screw).
5. Disconnect five connectors [D] and remove the harness bushing [E].
6. Remove the LCT.
[D]
[E]
[A]
[B]
