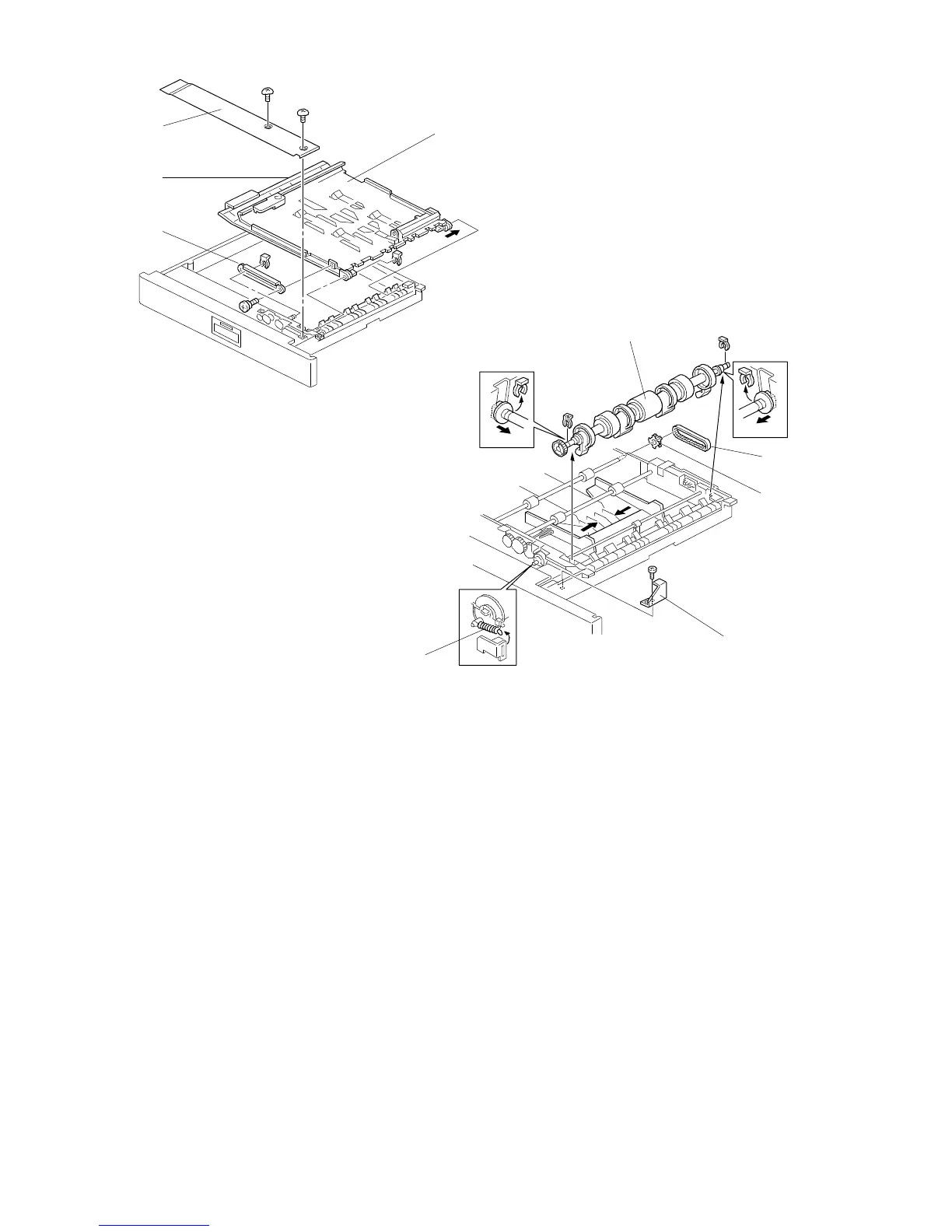

9.3 DUPLEX FEED MOTOR REPLACEMENT
1. Remove the duplex unit (4 screws).
2. Remove the link bracket [A] (1 screw, 1 clip).
3. Remove the upper guide plate [B] and the lower guide plate [C] (1 clip).
4. Remove the inner cover [D] (1 screw).
5. Remove the inner cover bracket [E] (1 screw).
6. Remove the duplex feed roller assembly [F] (2 clips).
7. Remove the timing belt pulley [G] and remove the timing belt [H].
8. Remove the spring [I].
[F]
[I]
[H]
[G]
[E]
[D]
[B]
[C]
[A]
FSM 5-49 FT5535/4527/4522
