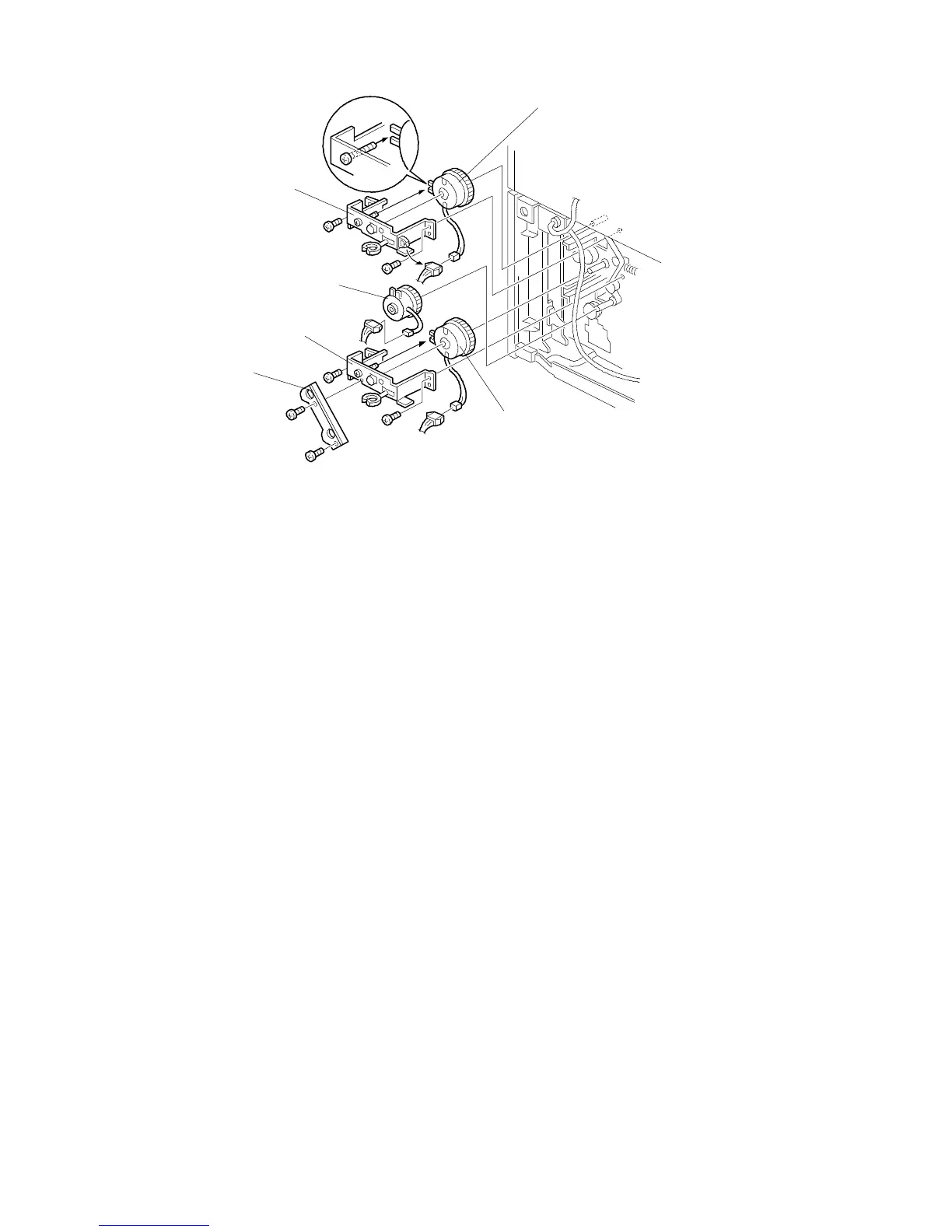

5.3 CLUTCH REPLACEMENT
First Paper Feed Clutch
1. Remove the rear cover (see Exterior Cover Removal).
2. Remove the bracket [A] (2 screws).
3. Remove the first paper feed clutch [B] (1 connector).
Second Paper Feed Clutch
1. Remove the rear cover (see Exterior Cover Removal).
2. Remove the link bracket [C] (2 screws).
3. Remove the bracket [D] (2 screws)
4. Remove the second paper feed clutch [E] (1 connector).
Relay Clutch
1. Remove the rear cover (see Exterior Cover Removal).
2. Remove the link bracket [C] (2 screws).
3. Remove the main motor bracket assemlby (see Main Motor Replacement).
4. Remove the relay clutch [F] (1 connector).
NOTE: When you reinstall a clutch, make sure that the clutch stopper groove
engages the clutch stopper.
[B]
[A]
[C]
[D]
[E]
[F]
