2.2.9 EXTERNAL USB KEYBOARD (EXTERNAL OPTION)
Customers can use an external USB keyboard when the software keyboard is shown on the
operation panel, if an external USB keyboard is connected to the USB port at the side of the
operation panel or the controller box USB port.
If customers would like to use an external USB keyboard, execute the following steps to enable
this feature.
1. Connect the external keyboard to the USB port at the right side of the operation panel or the
controller box USB port.
 The external keyboard that is available in this machine is principally for the Windows
OS. However, no compatibility check is done, and there is no warranty.

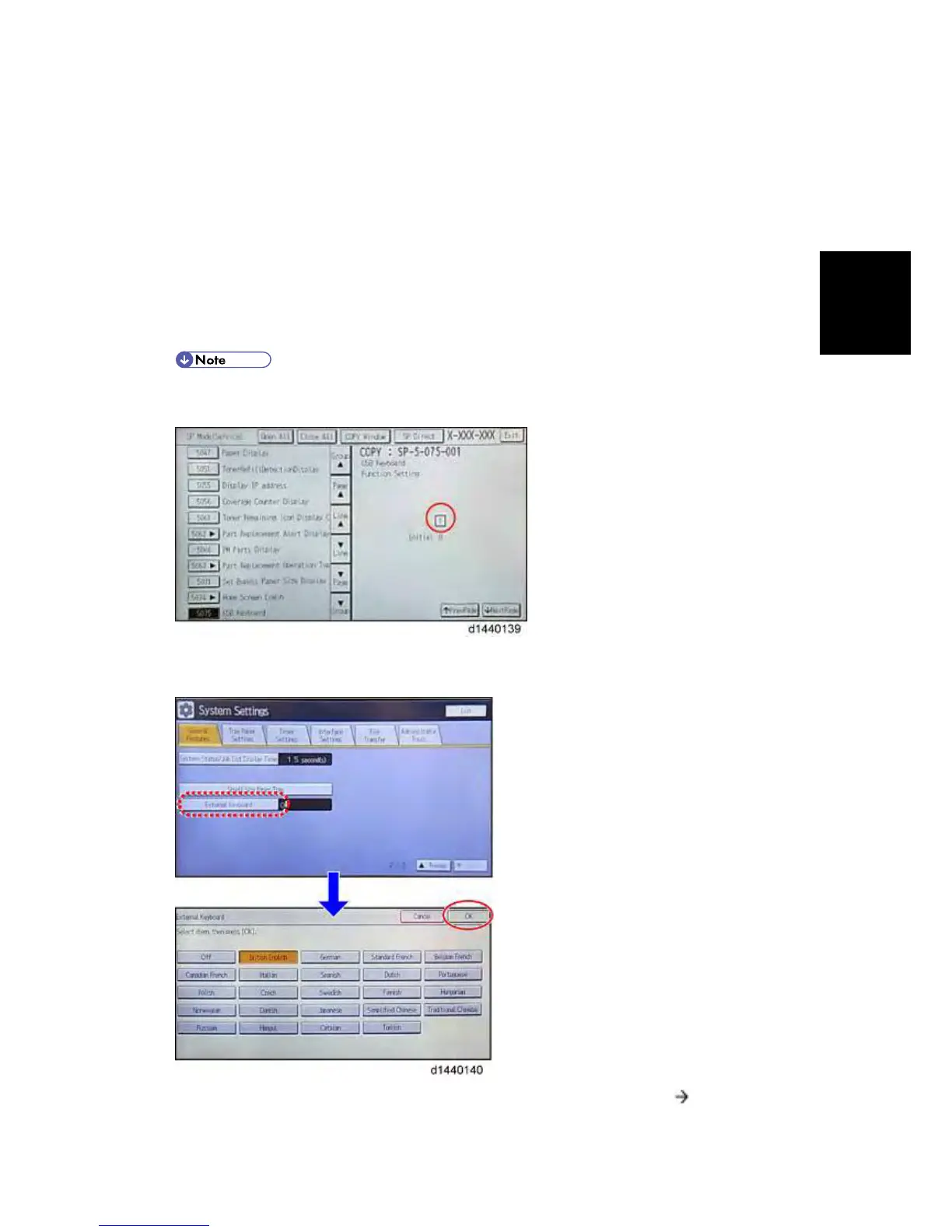

2. Enter the SP mode and set SP5075-001 to ON (1) (USB keyboard).
3. Exit the SP mode and turn the main power off and on.
4. Select a language type for the external USB keyboard with [User Tools]
[System
To Next Page
