1-Bin Tray Unit (D574)
D117/D118 2-34 SM
 The flat cable [B] should go through the ferrite cores [C].
 The harnesses [A] and the flat cable [B] should be routed under the harness [D]
when these are reconnected.
 Never connect the flat cable [B] obliquely. Otherwise, the scanner unit may be
damaged.

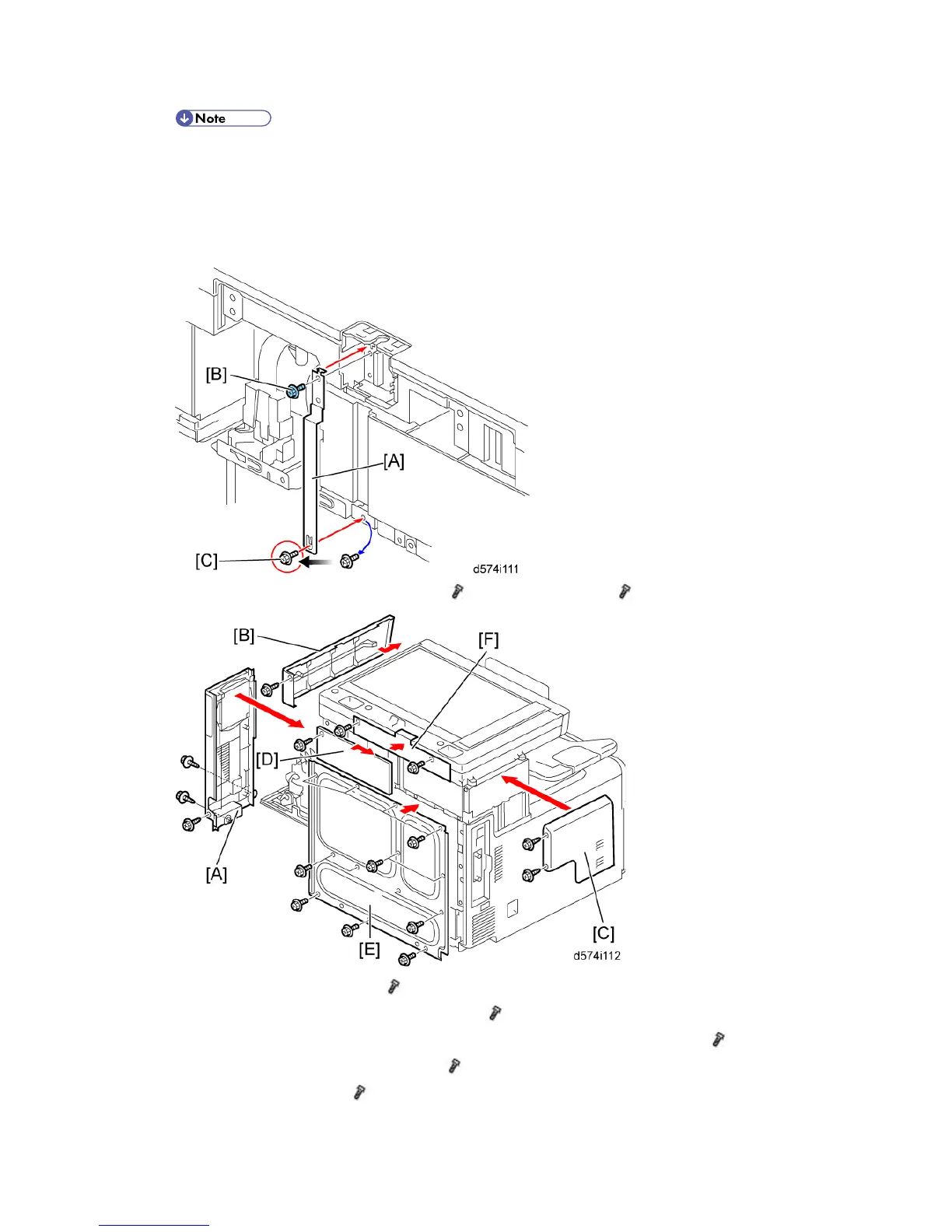

21. Attach the grounding plate [A] (Upper:
(blue) [B] x 1, Lower: x 1 (existing) [C])
22. Attach the rear right cover [A] (
x 3).
23. Attach the rear upper right cover [B] (M3x10:
x1).
24. Attach the left cover [C] (from the accessories, not the original cover) (M3x10:
x 2).
25. Attach the rear upper cover [D] (M3x10:
x 1).
26. Attach the rear cover [E] (
x 13).
