Paper Feed Unit (D573)
D117/D118 2-26 SM
2.3.2 INSTALLATION PROCEDURE
 Turn off the main switch of the copier and unplug the power cord before you start the
installation procedure.
 You need two or more persons to lift the copier. The copier is highly unstable when lifted
by one person, and may cause human injury or property damage.
 Do not lift the copier with the paper feed unit installed. The handle and grips may be
damaged.
1. Remove the tapes on the paper feed unit.
2. Remove the paper [A].

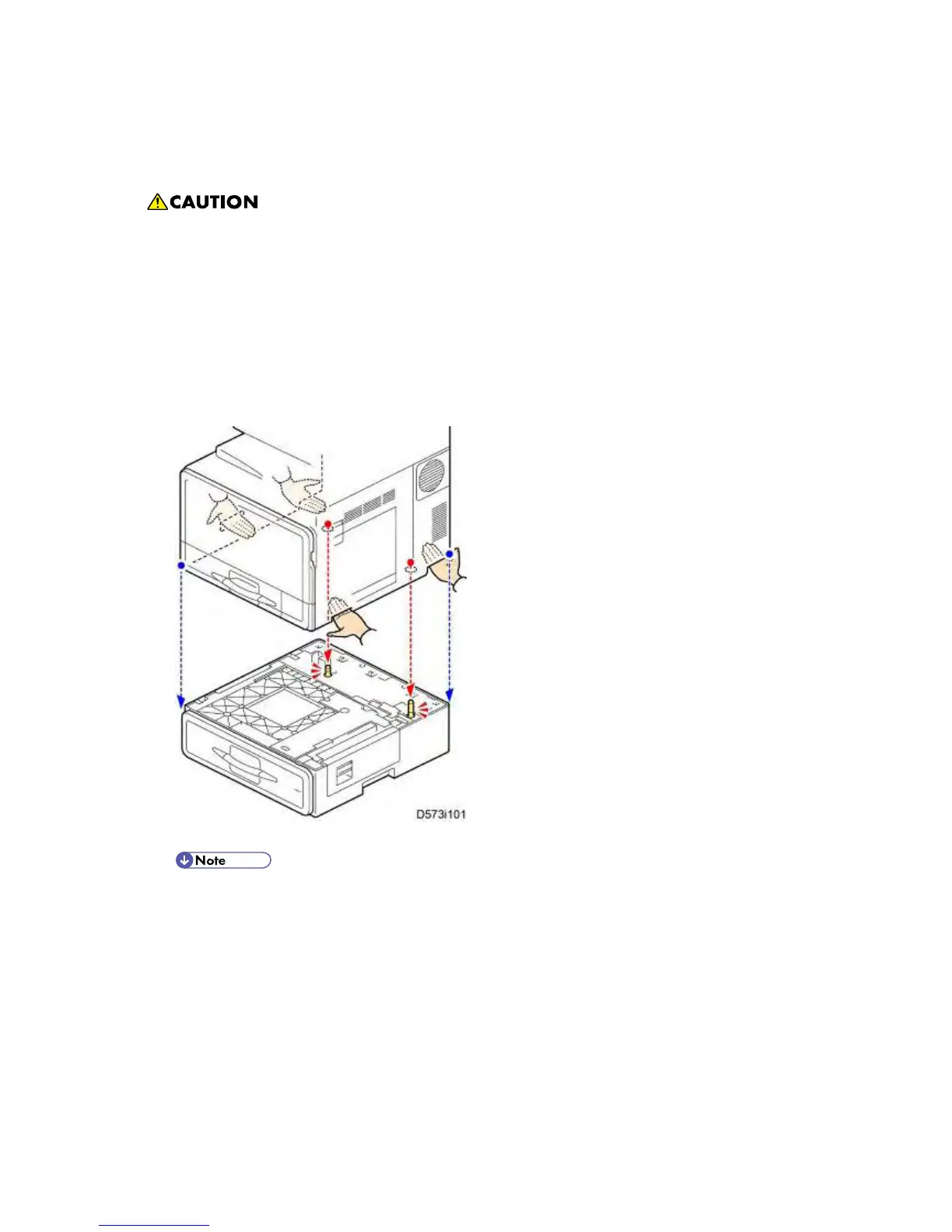

3. Set the copier on the paper feed unit.
 When installing a second paper feed unit, place it on the first paper feed unit. Then
place the copier on the pair of paper feed units.
4. Remove the paper tray(s) from the paper feed unit(s).
To Next Page
