Ricoh GR-C1 User Manual

1-Bin Tray Unit (D574)
D117/D118 2-30 SM

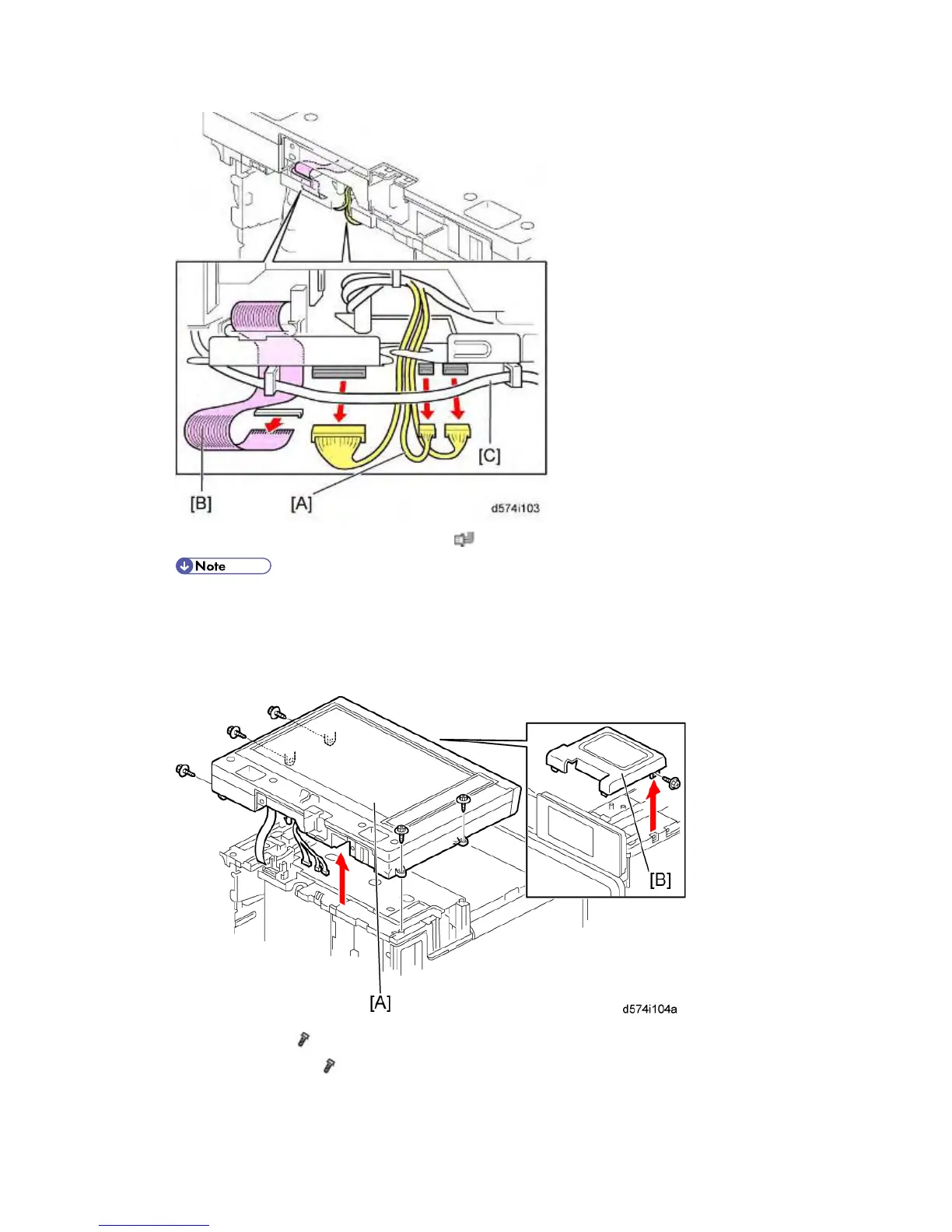

6. Three harnesses [A] and a flat cable [B] (
x 4).
 The harnesses [A] and the flat cable [B] should be routed under the harness [C]
when these are reconnected.
 To release the lock of the flat cable connector, lift up the small white tab of the
connector, and to lock the flat cable, push down the small white tab.
7. Scanner unit [A] (
x 5)
8. Front right cover [B] (
x 1)
