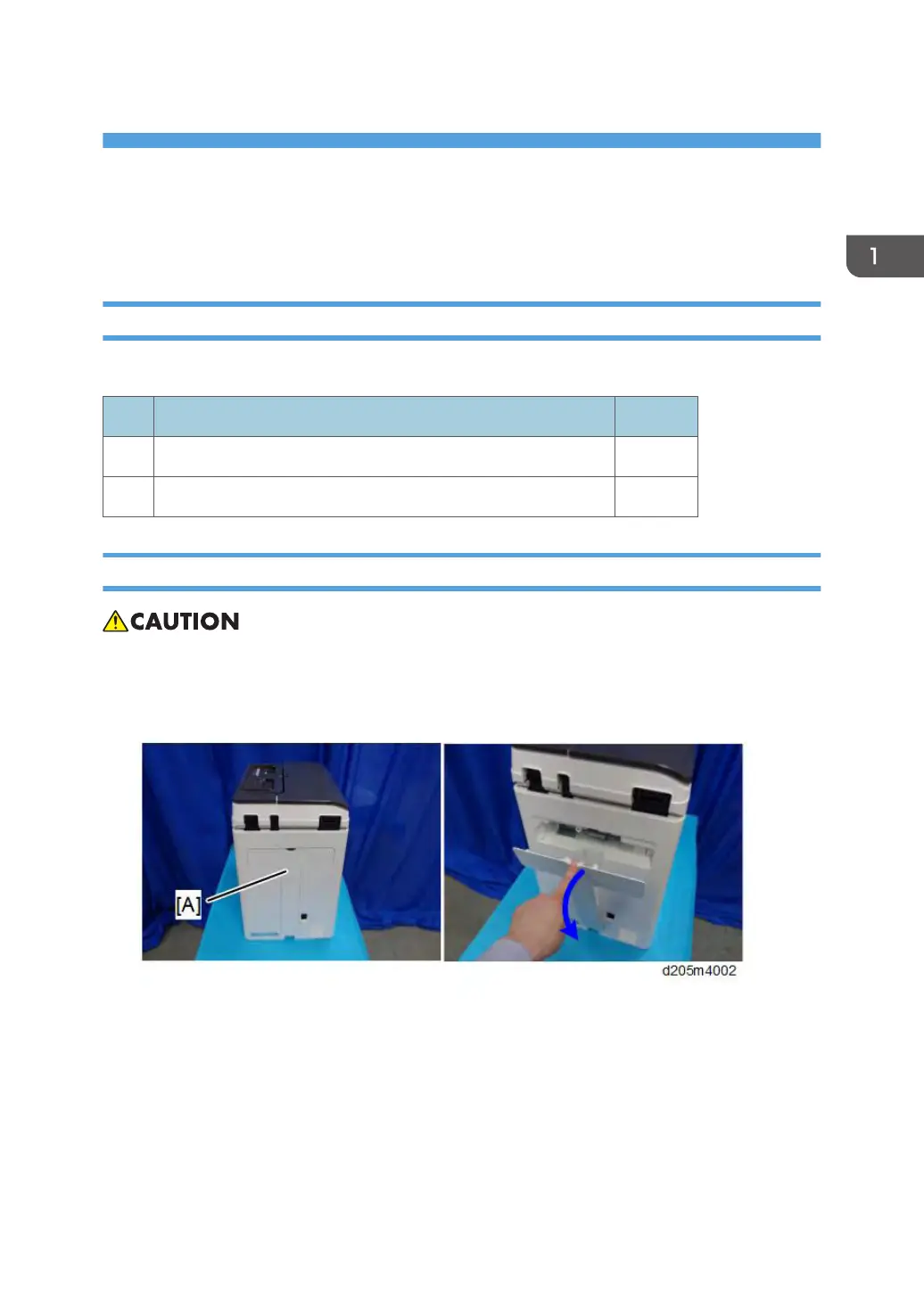

1. Installation
Fax Option Type M15 (D3B3)
Accessory Check
Check the quantity and condition of the components against the following list.
No.
Description
Q’ty
1
Bracket
1
2
EMC address
1
Installation Procedure
•
Unplug the machine power cord before starting the following procedures. Otherwise, it may result
in an electric shock or a malfunction.
1.
Remove the T-shaped cover [A].
7
8
10
Table of Contents
Symbols and Abbreviations
3
Conventions Used in this Manual
3
Cautions, Notes, Etc
3
Table of Contents
5
Installation
9
Fax Option Type M15 (D3B3)
9
Accessory Check
9
Installation Procedure
9
Fax Unit Options
13
Fax Connection Unit Type M15
13
Overview of Fax Connection Unit
13
Installing the Application in the Remote Machine and Client-Side Machine
13
Registering the Client-Side Machine(S)
16
Registering the Remote Machine
17
Configuring the Remote Reception Settings
19
Remote Fax Icon Addition for Remote Machine
21
Replacement and Adjustment
23
Fcu
23
SRAM Data Transfer Procedure
23
Troubleshooting
27
Fax Connection Unit Error Codes
27
Fax Connection Unit Error Code List
27
Machine_Err_01
27
Machine_Err_02
27
Machine_Err_03
28
Machine_Err_04
28
Machine_Err_05
28
Machine_Err_06
29
Machine_Err_07
29
Machine_Err_08
29
Error Codes
30
IFAX Troubleshooting
51
IP-Fax Troubleshooting
54
IP-Fax Transmission
54
Cannot Send by IP Address/Host Name
54
Cannot Send Via Voip Gateway
55
Cannot Send by Alias Fax Number
55
IP-Fax Reception
57
Cannot Receive Via IP Address/Host Name
57
Cannot Receive by Voip Gateway
57
Cannot Receive by Alias Fax Number
58
Beforehand
61
Service Tables
62
SP1-XXX (Bit Switches)
62
Sp2-XXX (Ram)
63
SP3-XXX (Machine Set)
63
SP4-XXX (ROM Version)
64
SP5-XXX (RAM Clear)
64
SP6-XXX (Report)
65
SP7-XXX (Tests)
67
Bit Switches - 1
68
System Switches
68
Bit Switches - 2
82
I-Fax Switches
82
Printer Switches
90
Bit Switches - 3
98
Communication Switches
98
Bit Switches - 4
108
G3 Switches
108
Bit Switches - 5
118
IP Fax Switches
118
NCU Parameters
127
Dedicated Transmission Parameters
131
Programming Procedure
131
Parameters
131
Fax Parameters
131
E-Mail Parameters
136
Specifications
141
General Specifications
141
Fcu
141
Capabilities of Programmable Items
142
IFAX Specifications
143
IP-FAX Specifications
145
Fax Unit Configuration
146
4
