9. Lower paper trays
Load paper here.
For details, see p.32 "Guide to Functions of the Machine's Options".

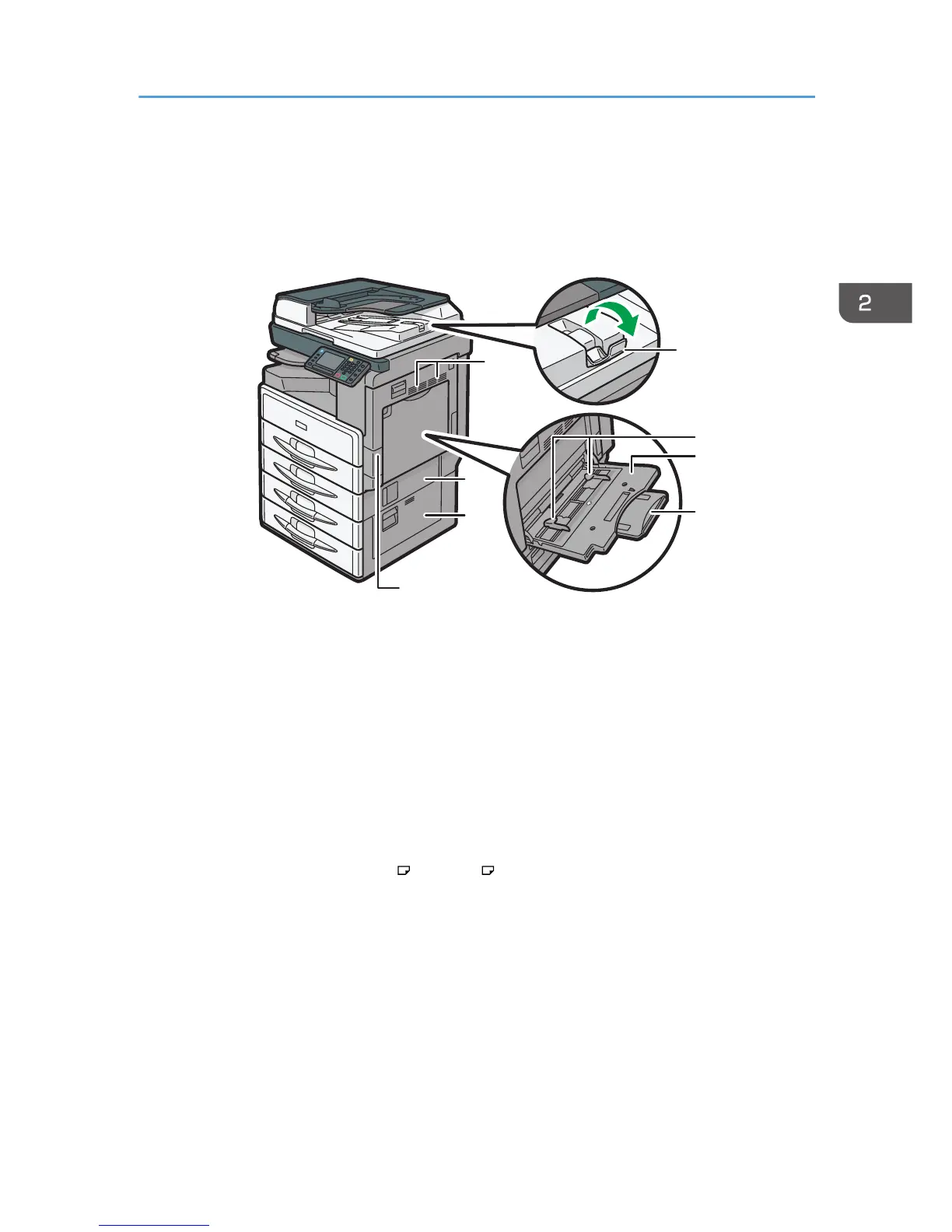

Front and right view
CSL003
2
3
4
5
1
6
7
8
1. Extender
Raise the extender to support large paper.
2. Ventilation holes
Prevent overheating.
3. Paper guides
When loading paper in the bypass tray, align the paper guides flush against the paper.
4. Bypass tray
Use to copy or print on thick paper, OHP transparencies, envelopes, and label paper (adhesive labels).
5. Extender
Pull this extender out when loading A4 , 8
1
/
2
× 11 or larger size paper in the bypass tray.
6. Lower right cover
Open this cover when a paper jam occurs.
7. Lower paper tray right cover
Open this cover when a paper jam occurs.
8. Right cover
Open this cover to remove jammed paper fed from the paper tray.
