Ricoh PJ LX3000ST Technical Training

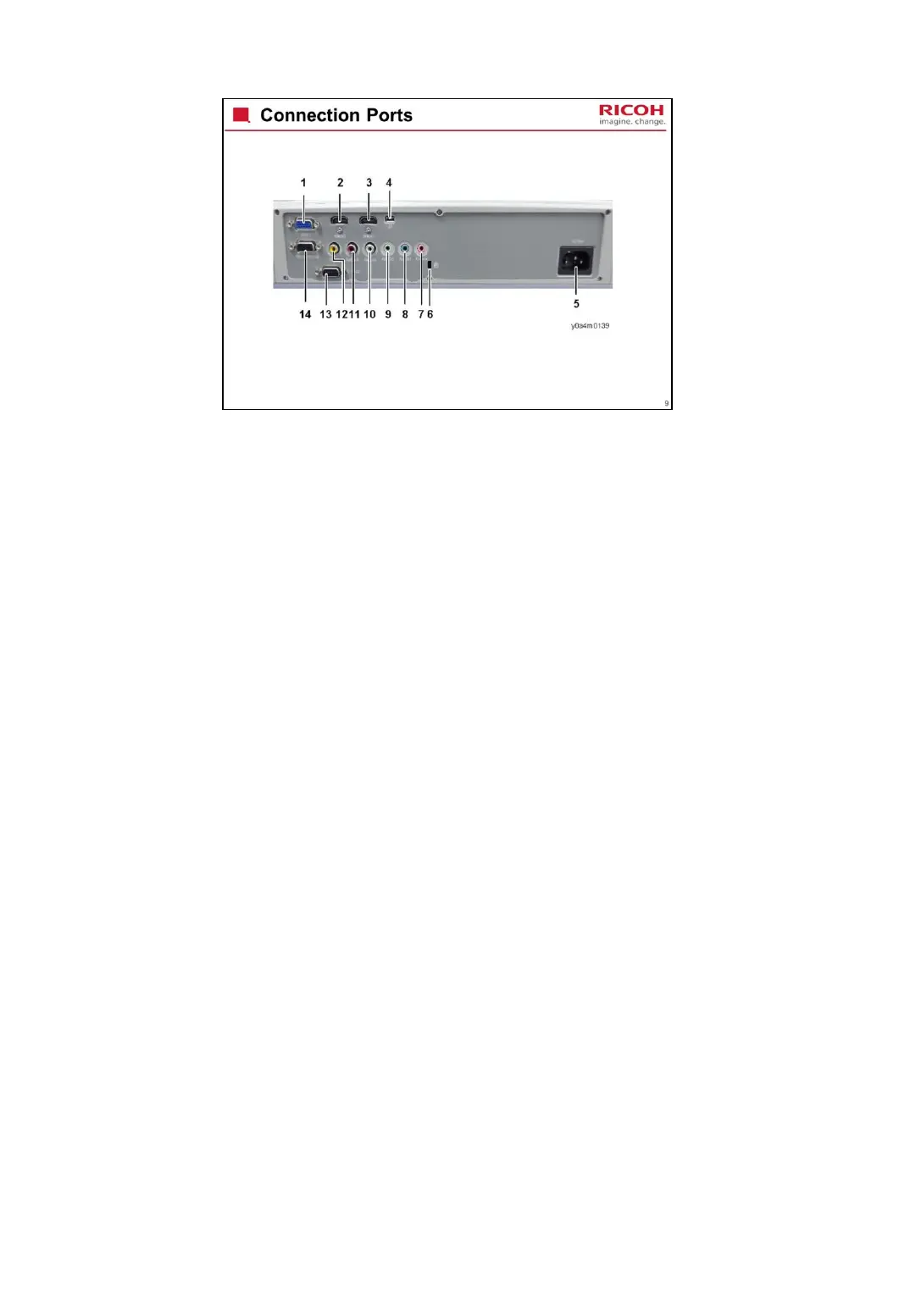

1. Computer-In/YPbPr Connector (PC Analog Signal/Component Video
Input/HDTV/YPbPr)
2. HDMI2 Input Connector
3. HDMI1 Input Connector
4. USB socket for firmware update
5. Power Socket
6. Kensington Lock Port
7. Microphone Input Connector
8. Audio Input 1 Connector (3.5mm mini jack)
9. Audio Output Connector (3.5mm mini jack)
10. Audio Input 2 (left) Connector
11. Audio Input 2 (right) Connector
12. Video Input Connector
13. PC Control (9-pin DIN Type)
14. Monitor-Out Connector
9
