Loading Paper into the Large Capacity Tray
(mainly Europe and Asia)
The LCT can hold A4 paper only. If you want to print on 8
1
/
2
× 11 or B5 JIS from the LCT, contact
your service representative.
(mainly North America)
The LCT can hold 8
1
/
2
× 11 paper only. If you want to print on A4 or B5 JIS from the LCT, contact
your service representative.
The extension unit is required to load A4 , B4 JIS , 8
1
/
2
× 14 , or 8
1
/
2
× 11 .
• Check the paper edges are aligned at the left side.

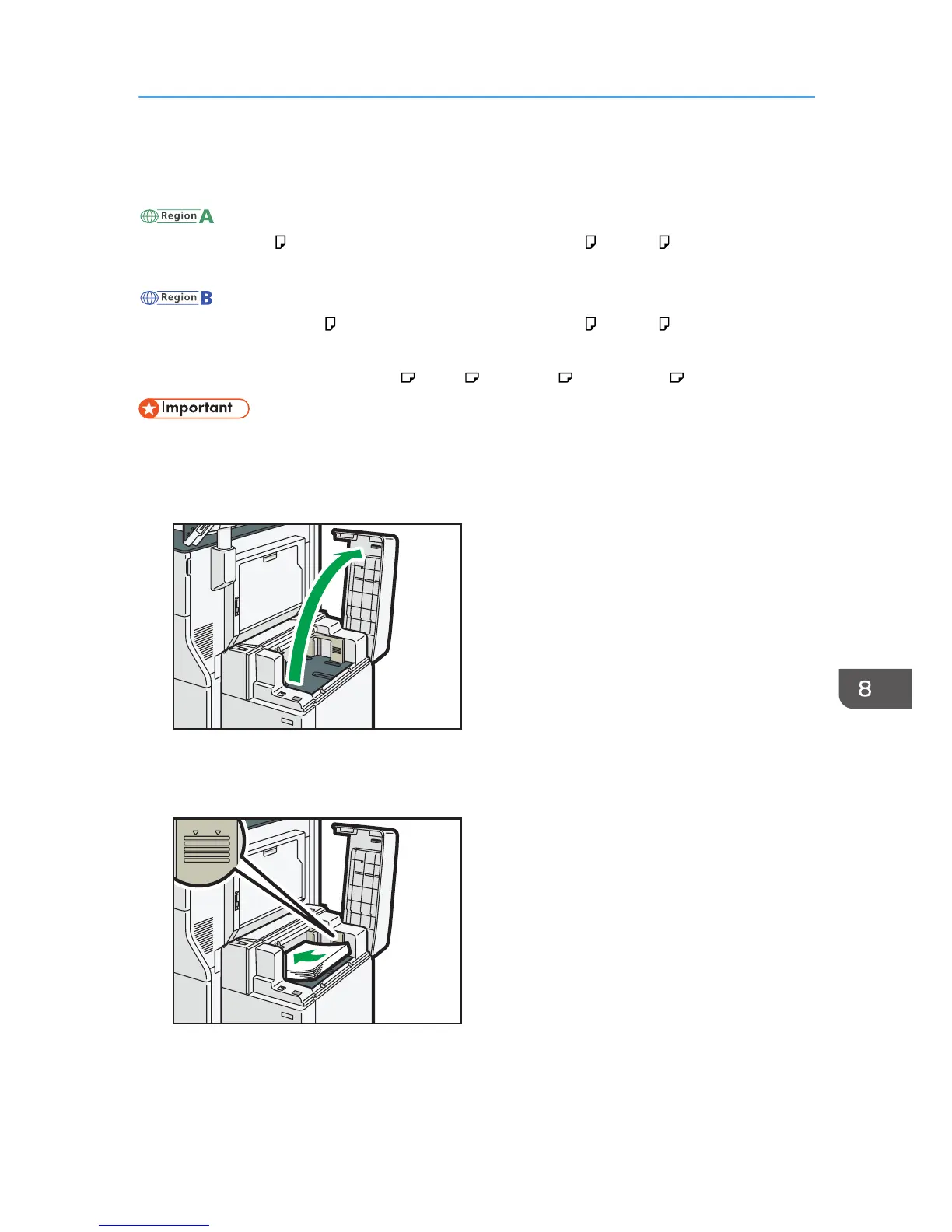

1. Check that paper in the paper tray is not being used, and then open the top cover of the
LCT.
CVA023
2. Load paper into the paper tray with the print side up.
Do not stack paper over the limit mark.
CVA024
3. Press the [Down] key.
The key blinks while the bottom plate is moving down.
Loading Paper into the Large Capacity Tray
