Technical Bulletin PAGE: 3/3
Model: Vacuum Feed LCIT RT5100
3. Slide the side fence back and forth about ten round trips.

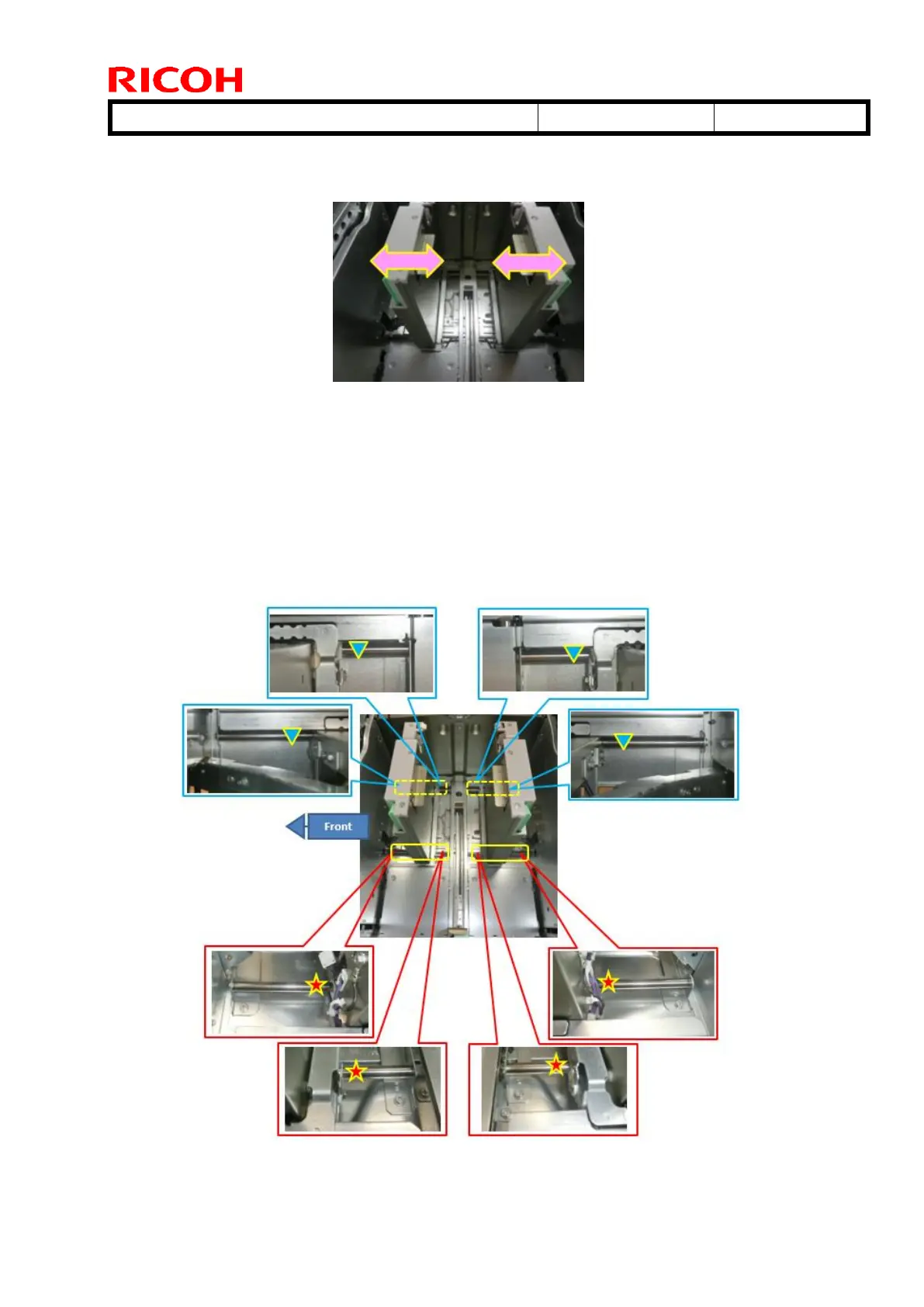

Fig. 4
4. Clean off any paper dust or foreign material that was scraped out, using a cloth.
5. Repeat Steps 2-4 until there are no foreign materials or dust on the cloth after
cleaning the shaft.
6. Apply small drops of engine oil to the shaft in the areas shown in Fig. 5 (marked by red
stars).
Note: Each small drop would amount to roughly 0.0570±0.0114g.
7. Slide the side fence back and forth for three round trips.
Fig. 5
