Technical Bulletin PAGE: 2/4
Model: Vacuum Feed LCIT RT5100
Date: 31-Oct-16
No.: RD777012

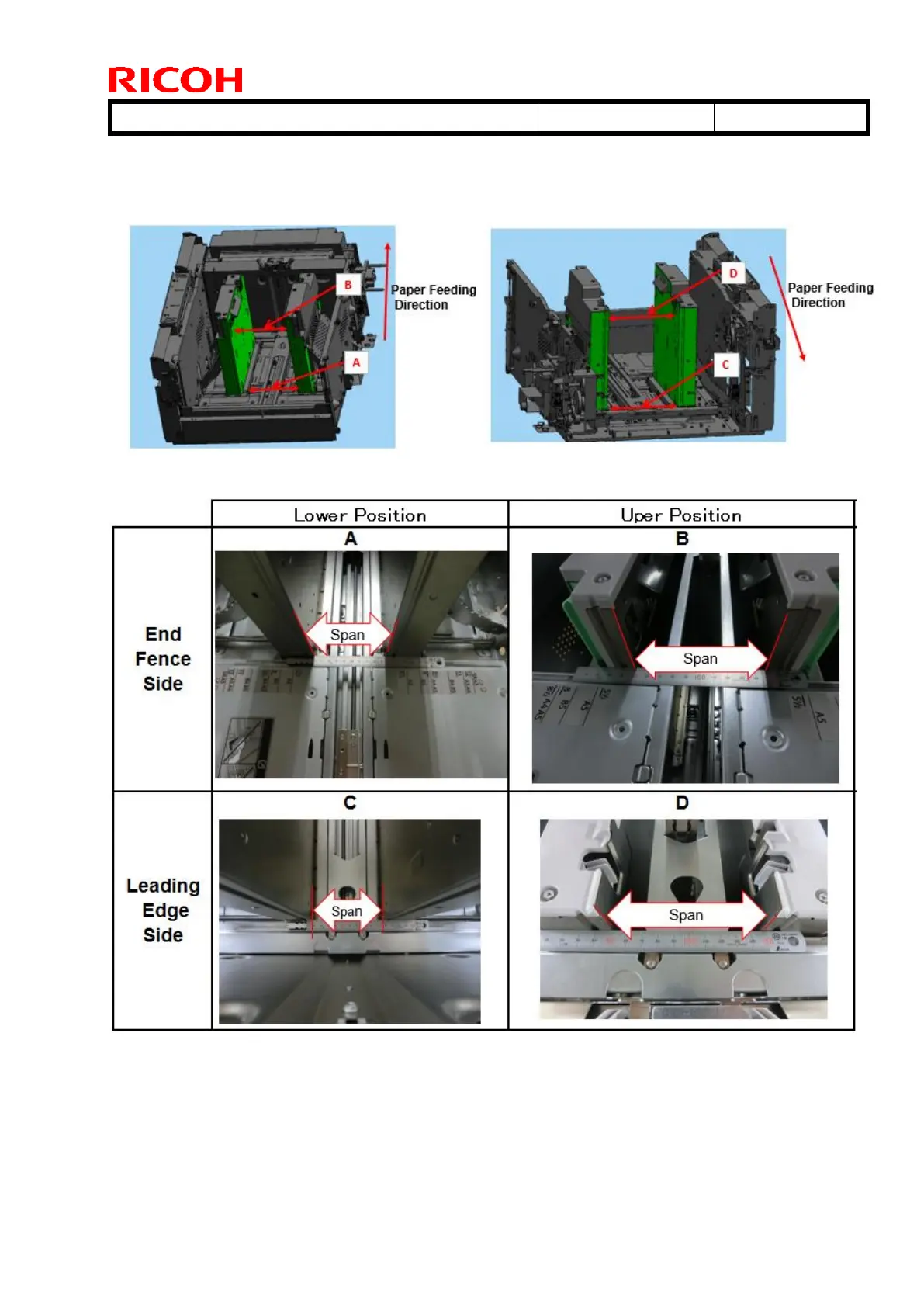

4. Measure the distances (spans A, B, C, D) between the two side fences as shown in
Figs. 2 and 3.
Fig. 2
Fig. 3
