Technical Bulletin PAGE: 3/4
Model: Vacuum Feed LCIT RT5100
IMPORTANT:
- Make sure the scale ends touch the bent portion of each side fence.

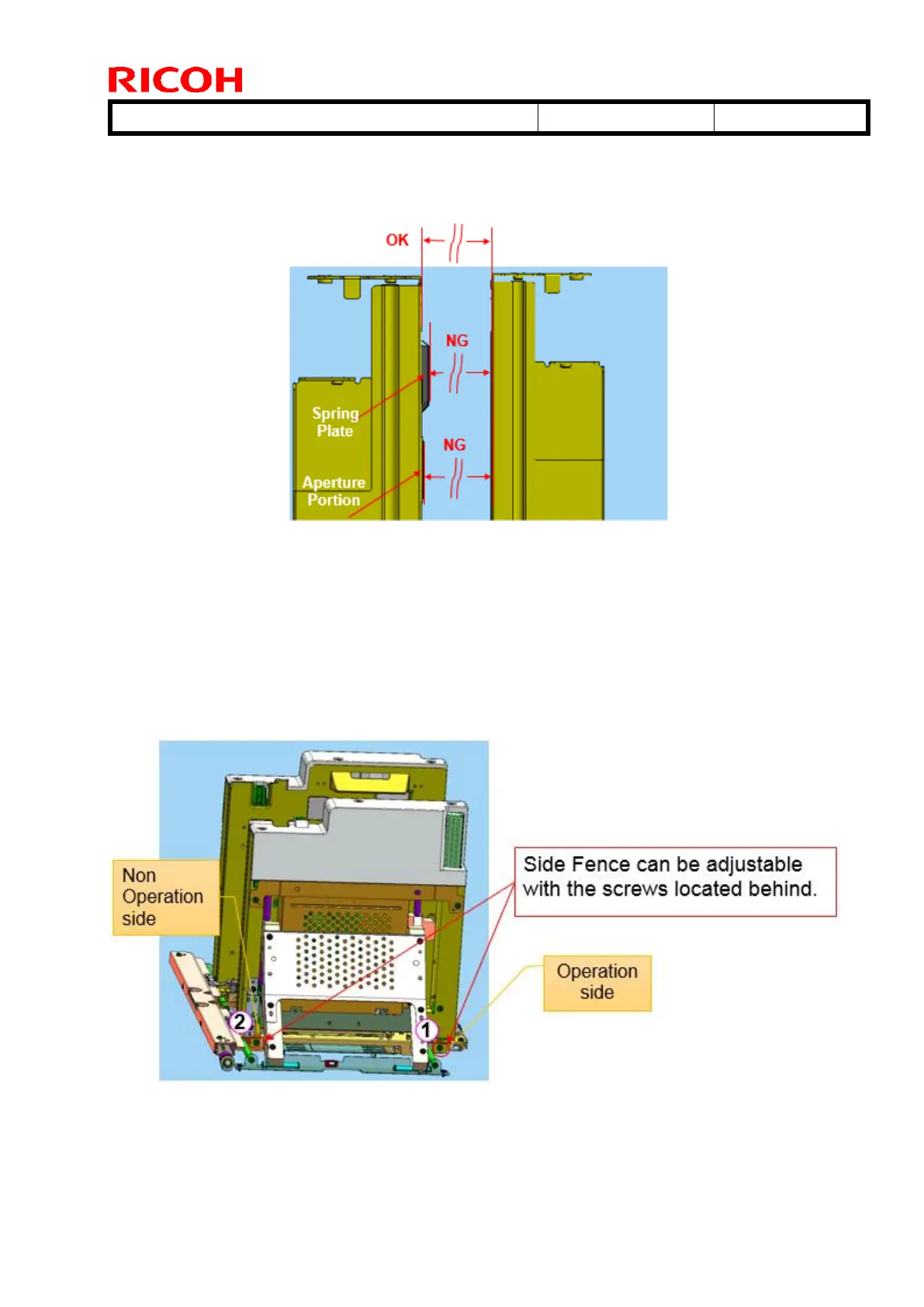

- See Fig. 4 below for the correct and incorrect measuring positions.
Fig. 4
5. Compare span A to B, and then C to D.
Specification: Difference between top and bottom is 0-2.0 mm.
If the difference for either is more than 2.0mm, go to Step 6.
Otherwise, the procedure is finished.
6. Disassemble the tray as shown in Fig.5.
Fig. 5
To Next Page
