Taurus-C1 Training
204
Slide 204

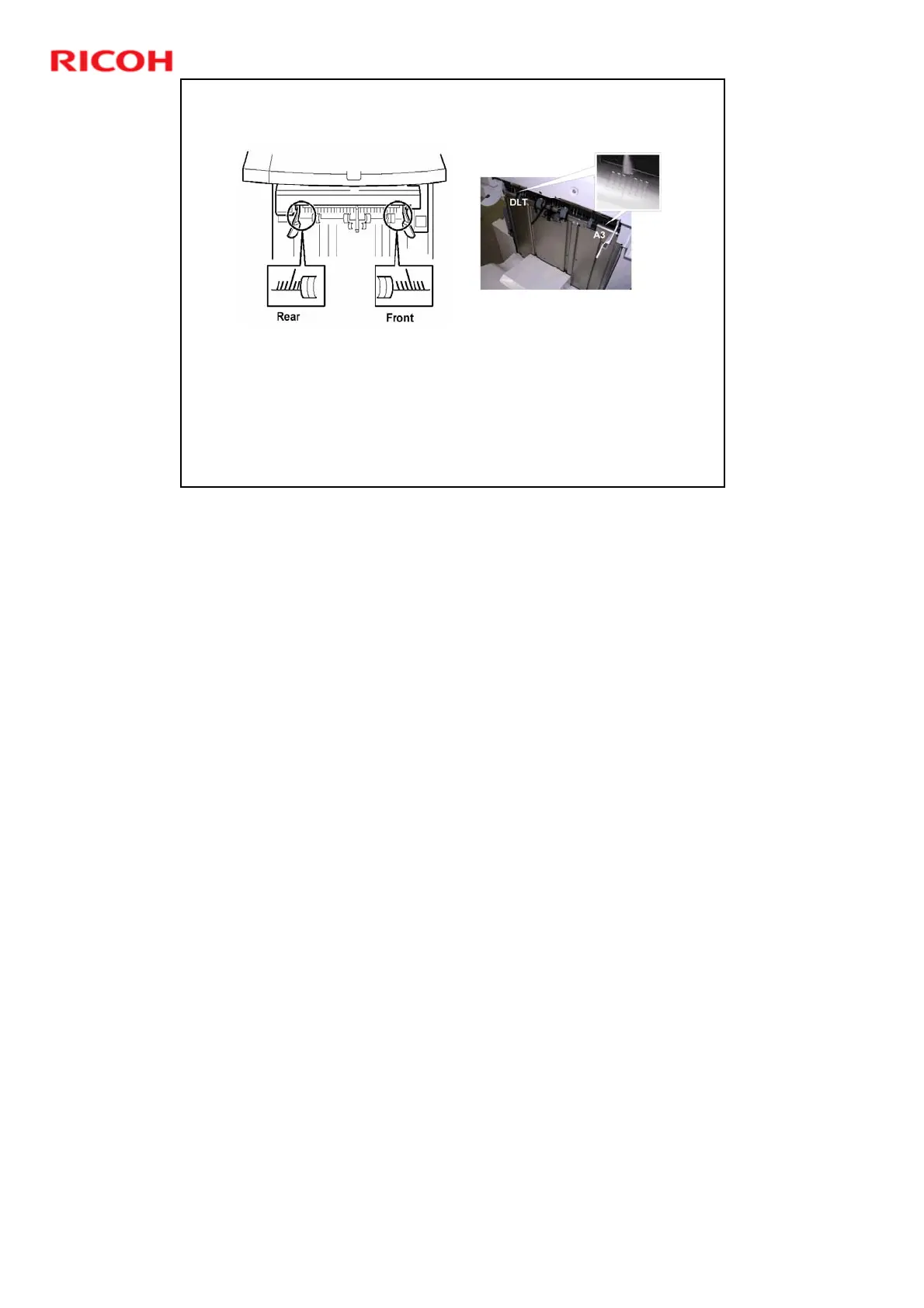

Where Skew and Side-to-Side
Registration Are Measured
Use the two scales at the output slot of each peripheral to
measure the skew and errors in side-to-side registration, as
shown above.
Important! There are two scales. The one at the rear is for DLT
paper (LT LEF for the ring binder), and the one at the front is for
A3 paper (A4 LEF for the ring binder). Use the correct scale.
No additional notes
