Ricoh SR3260 - Component Layouts and Drive Systems

1.Detailed Descriptions
11

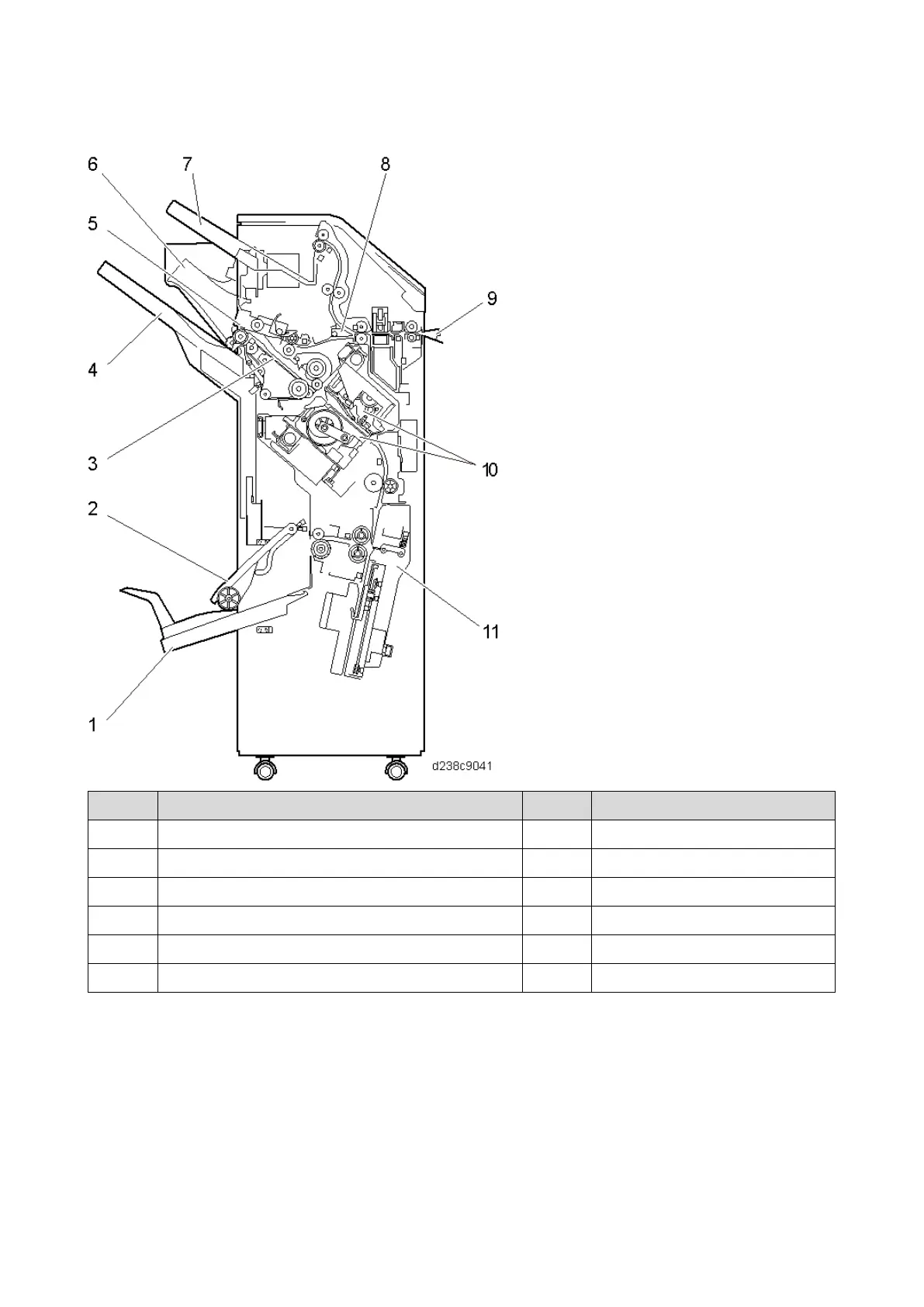

Parts Layout
No.
Description
No.
Description
1
Booklet tray
7
Proof tray
2
Paper surface detecting arm
8
Junction gate
3
Stapler tray
9
Relay Guide Plate
4
Shift tray
10
Stapler unit
5
Paper exit guide plate
11
Saddle stitch unit
6
Paper exit guide
-
-
