2.Replacement and Adjustment

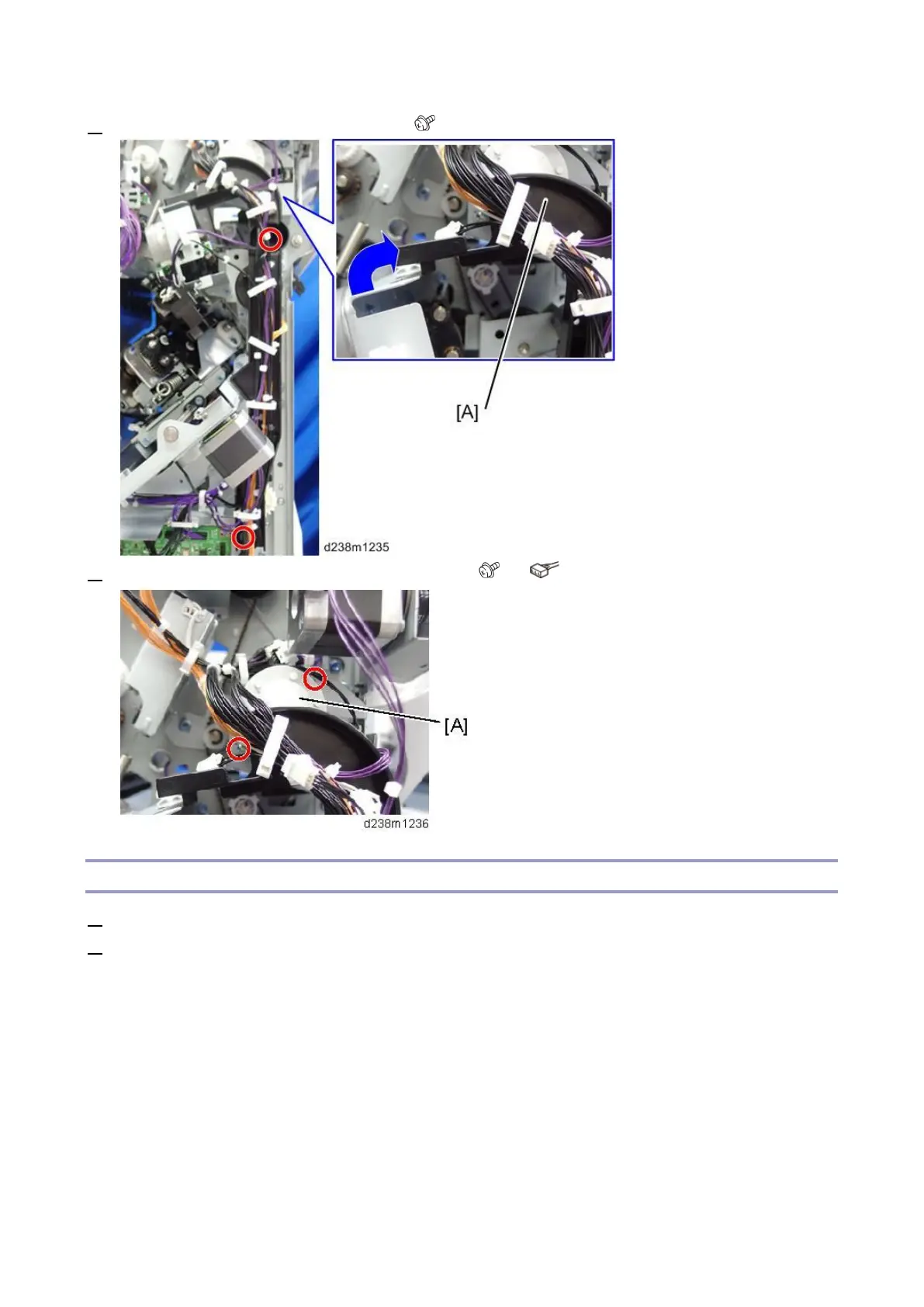

2. Move the harness guide [A] to the right. ( ×2).

3. Remove the Positioning Roller Motor (STM5) [A] ( ×2, ×1).

Shift Motor (STM1)

1. Remove the rear cover (Rear Cover).

2. Remove the upper left cover (Upper Left Cover).
