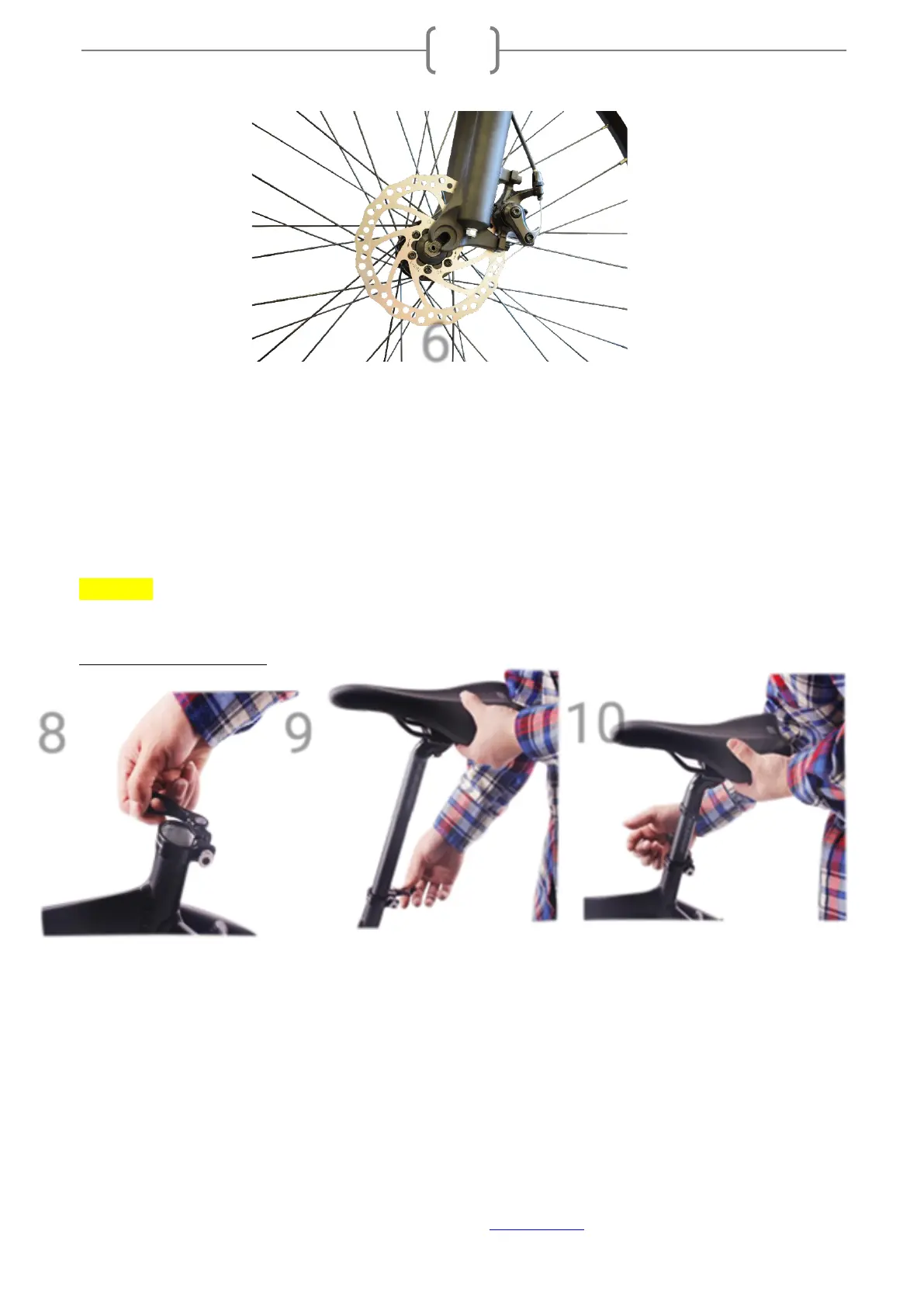

• Align the disc rotor so it fits between the brake pads. Do not force it. (Figure 4)
• Place the front wheel axle onto the fork dropouts. (Figure 5)
• Line up the disc rotor to make sure there is space on each side, so they don’t rub. Then make
sure the wheel is secure. (Figure 5)
• Tighten the nuts on each side. Make sure they are secure and that the wheel is fully seated in
the dropouts of the fork. Tighten the axle nuts to 35nm of torque.
WARNING ◆ IT IS VITAL THAT THE AXLE NUTS HAVE BEEN TIGHTENED. IF THEY ARE NOT PROPERLY
ALIGNED, THE WHEEL MAY COME OFF, CAUSING SERIOUS INJURY AND/OR DEATH.
2.3 Seat Post Assembly:
• Open the seat clamp and insert the seat post to or past the minimum insertion point. (Figure 8 & 9)
• Adjust the suitable height and rotate the clamp to tighten and then shut it. (Figure 10)
To Next Page
