13

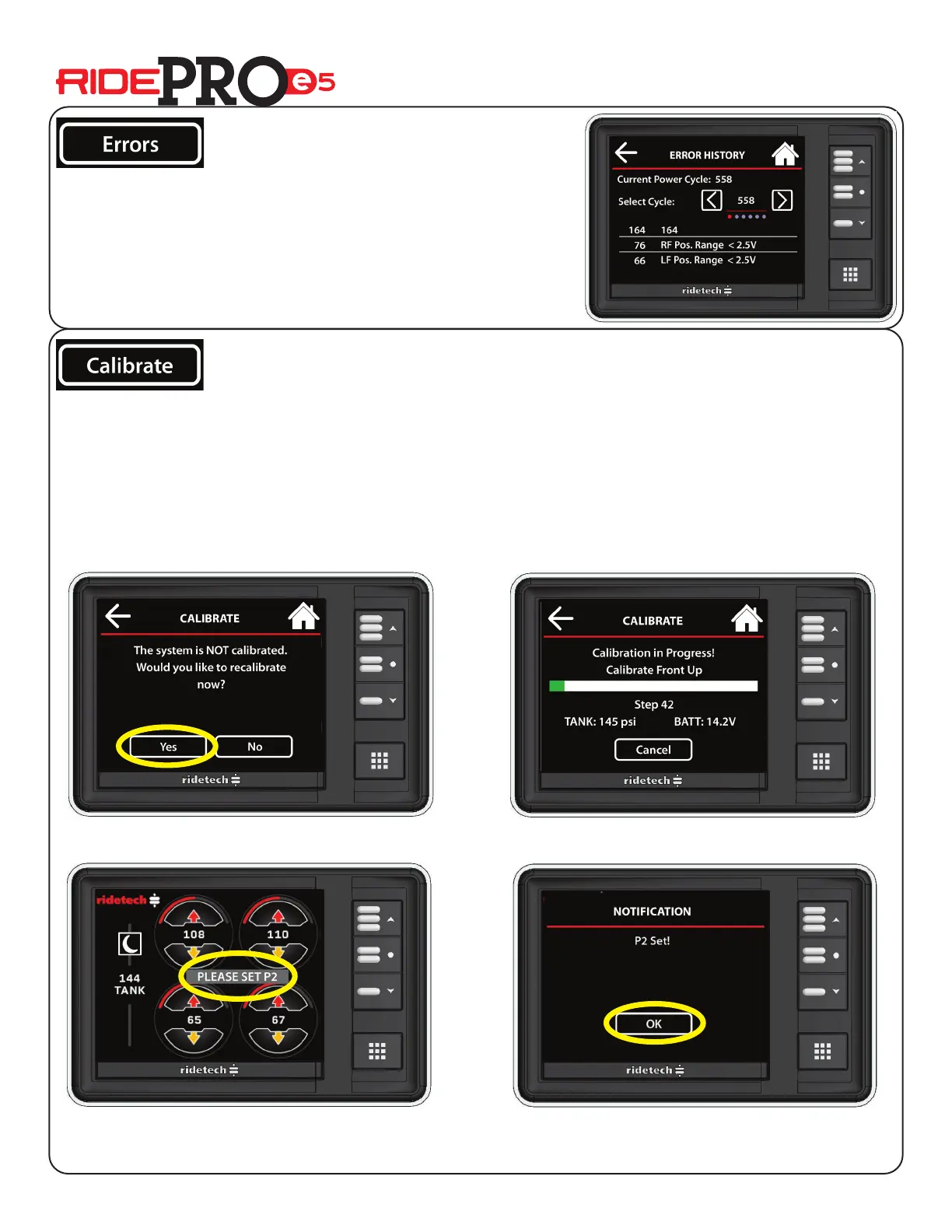

Control Panel Users Guide
The Menu Error History screen displays any errors that have occurred, as well as
the ignition cycle during which they occurred.
You can see what power cycle the system is currently on by going to the info
screen.
Pages 24 & 25 have a complete list of the systems error codes along with causes
and solutions.
Make sure nothing is under the vehicle before performing
calibration. To Calibrate the system, select “Yes”.
The system will tell you what it is doing throughout the
calibration process.
This screen will pop up after the system is calibrated. Use
the Manual Up & Down Buttons to set your ride height.
After you get your ride height set, hold the #2 for 5 seconds.
“P2 Set” will pop up, select “OK”.
If you are not running level sensors, you will need to
program all 3 presets.
The Menu Calibration screen allows the user to calibrate the system.
Though Calibration is not required for manual control of the system, Calibration is required to enable functionality of the Presets.
During Calibration, the system learns specic characteristics of the vehicle into which it is installed. This information is used by the
system to accurately and eciently reach preset destinations.
!ATTENTION!!!!! The vehicle MUST be running in order to calibrate this system!
Only turning the key on will NOT work!
Hooking it to a battery charger will NOT work!
The vehicle must be running!
DO NOT RERUN CALIBRATION ON A SYSTEM THAT HAS BEEN PREVIOUSLY CALIBRATED. IF YOU
ARE HAVING A PROBLEM WITH THE SYSTEM, TRYING TO RECALIBRATE WILL MAKE IT DIFFICULT
TO DIAGNOSE THE PROBLEM.
