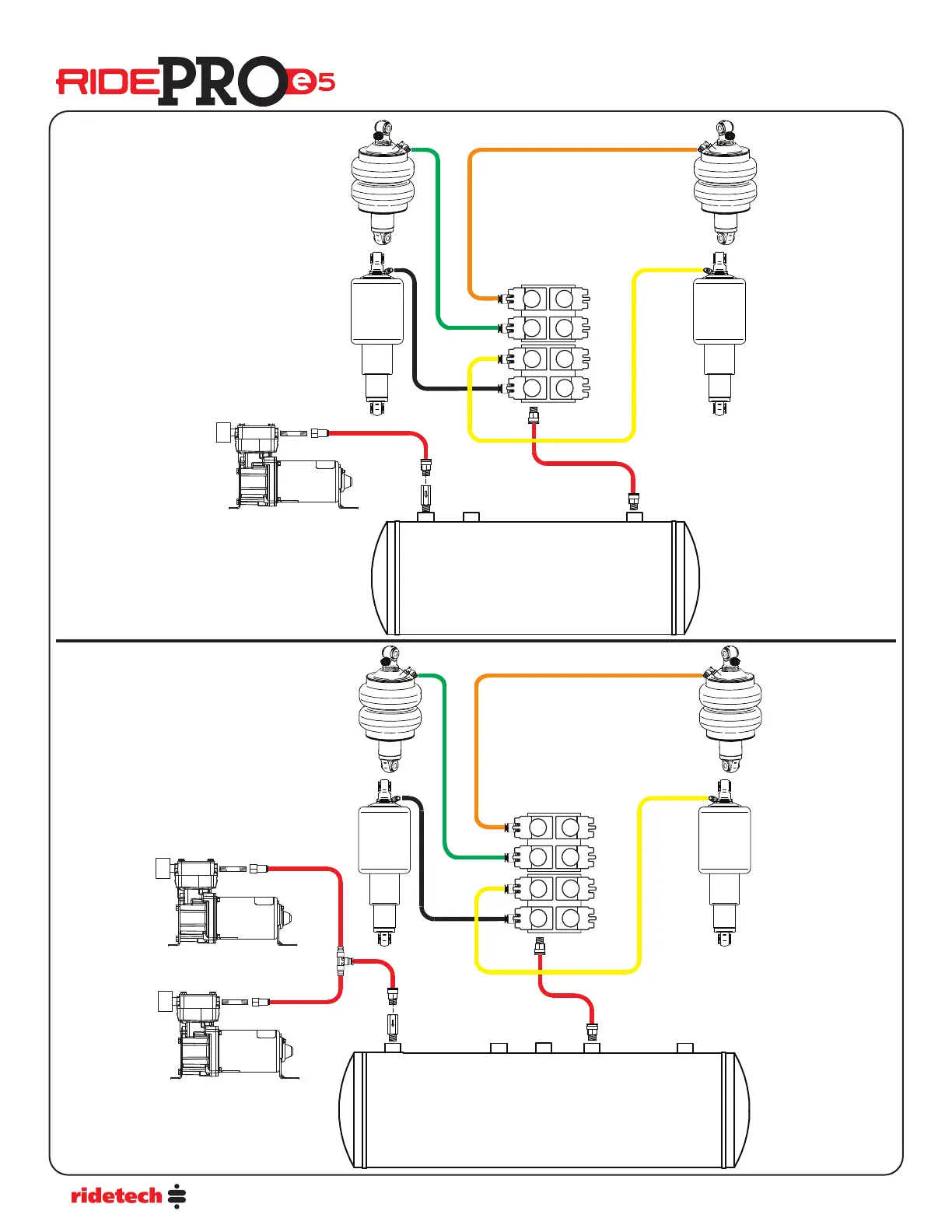

Plumbing Diagram
Dual Compressor Systems
RFD LFD
RFU LFU
RRD LRD
RRU LRU
RFD LFD
RFU LFU
RRD LRD
RRU LRU
Single Compressor Systems
Tank
Tank
Compressor
Compressor
Compressor
Solenoid
Valve
Solenoid
Valve
Driver
Front
Driver
Front
Driver
Rear
Driver
Rear
Passenger
Rear
Passenger
Rear
Passenger
Front
Passenger
Front
Check Valve
Check Valve
