Air Distribution Block
RFD LFD
RFU LFU
RRD LRD
RRU LRU
Storage Tank
Optional
Secondary Compressor
Primary Compressor
+12VDC
R
E
T
A
B
T
Y
SWITCHED +12VDC (IGNITION)
BLACK-TO CHASSIS OR BATTERY GROUND
GREY
BLUE
RED
YELLOW
BLACK
RED
BLACK
RED
White - LR
Yellow - RR
Green - LF
Orange- RF
PINK
Air Pressure Sensors
+12VDC
+12VDC
Green - Left Inate
Yellow - Right Inate
Brown - Left Deate
Grey - Right Deate
Rear Valve Harness
Blue - Left Inate
Black - Right Inate
Red - Left Deate
Orange - Right Deate
Front Valve Harness
20 Amp Fuse
LR
RR
LF RF
20 Amp Fuse
15 Amp Fuse
30 Amp Fuse
30 Amp Fuse
Ground
Ground
Blue- LR
Brown- LF
Orange- RF
Tan- RR

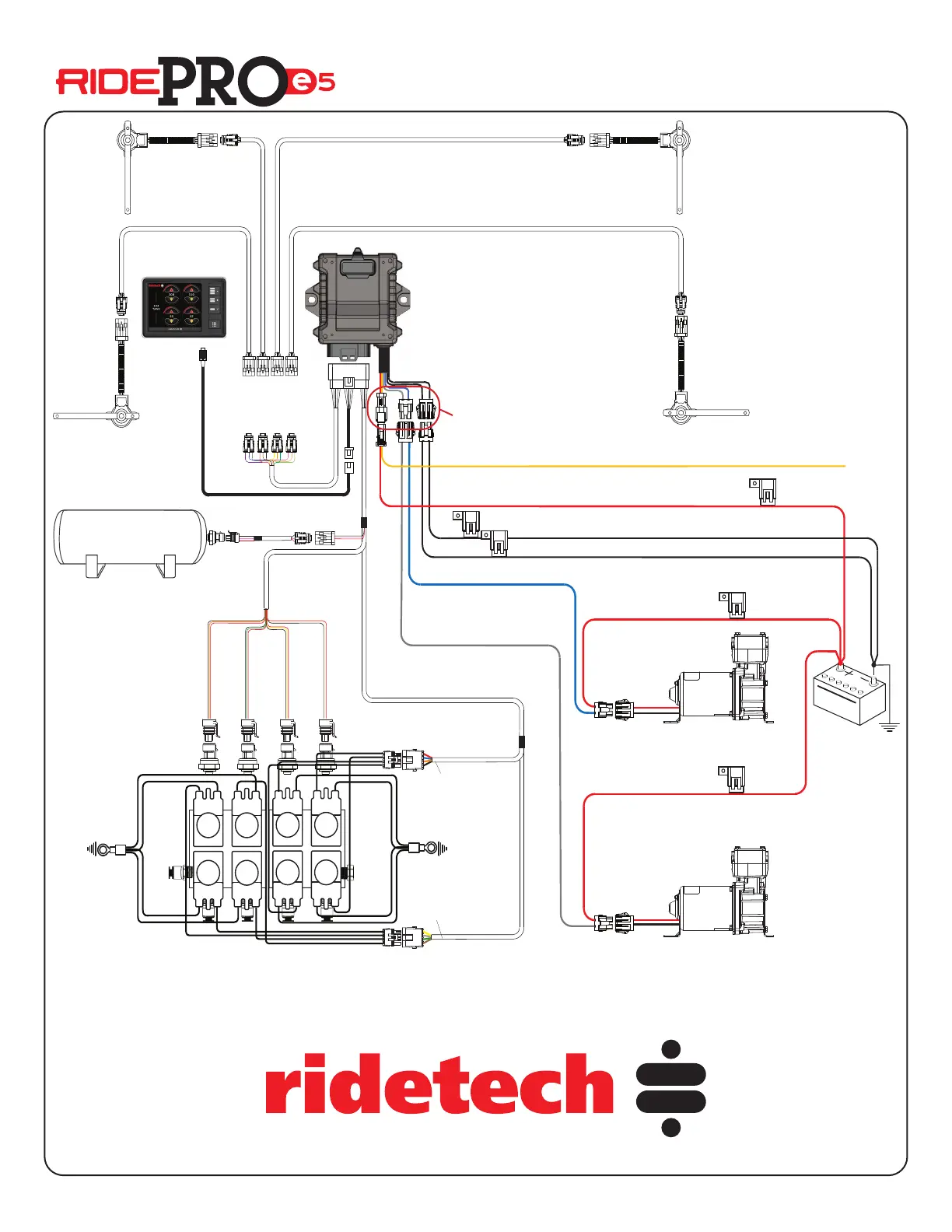

Wiring Diagram
Shown with
level sensor
upgrade
350 S. St. Charles St. •Jasper, IN 47546 • 812-481-4969
CUTTING OFF ANY OF
THESE PLUGS WILL
VOID THE WARRANTY.
NOTE: AIRPOD WIRING IS THE SAME, BUT THE AIRPOD HAS IT’S OWN FUSE BLOCK FOR THE ECU AND COMPRESSORS.
THE AIRPOD STILL REQUIRES A FUSE TO BE INSTALLED AT THE BATTERY. See page 7.
