7
MOUNT THE MAIN UNIT:
1- Mount the base at to the vehicle surface (do not bend the base)
2- Secure the base with self-tapping screws or bolts.
3 - If optional cover is used, secure the cover to the airpod base using the supplied screws.
CONNECT AIR LINES:
1 - Airline cuts must be straight and clean - use a razor blade or tubing
cutter. (part # - 90001081)
2 - All ttings are DOT-approved, reusable, push-to-connect style. Firmly
push the airline into the tting to attach. To release the airline, push
the collar on the tting back towards the tting and pull the airline
out.
3 - All of our airlines are DOT-approved so they are very strong. Secure
the airline with zip ties, keep them away from any sharp edges, and
when passing through a hole in the frame, use a grommet.
4 - Keep away from intense heat including mu ers and exhaust
manifolds.
CONNECT POWER HARNESS:
1 - Connect the red power wire directly to the
battery.
Use included fuse within 18” of battery.
3 Gallon - 30 amp fuse
5 Gallon - 40 amp fuse
2 - Connect the yellow ignition wire to switched
12v.
(Fuse Panel is the best location)
3 - Connect the black wire to chassis ground.
CONNECT RIDE HEIGHT SENSORS
if equipped:
See Ride Height Sensor section for
more information on installing and
calibrating height sensors.
POWER RED
SWITCHED YELLOW
GROUND BLACK
Be sure to use included
fuse holder in the battery
feed wire as close to the
battery as possible.
CAUTION: Use 8 gauge wire
or larger to extend red power
feed if needed

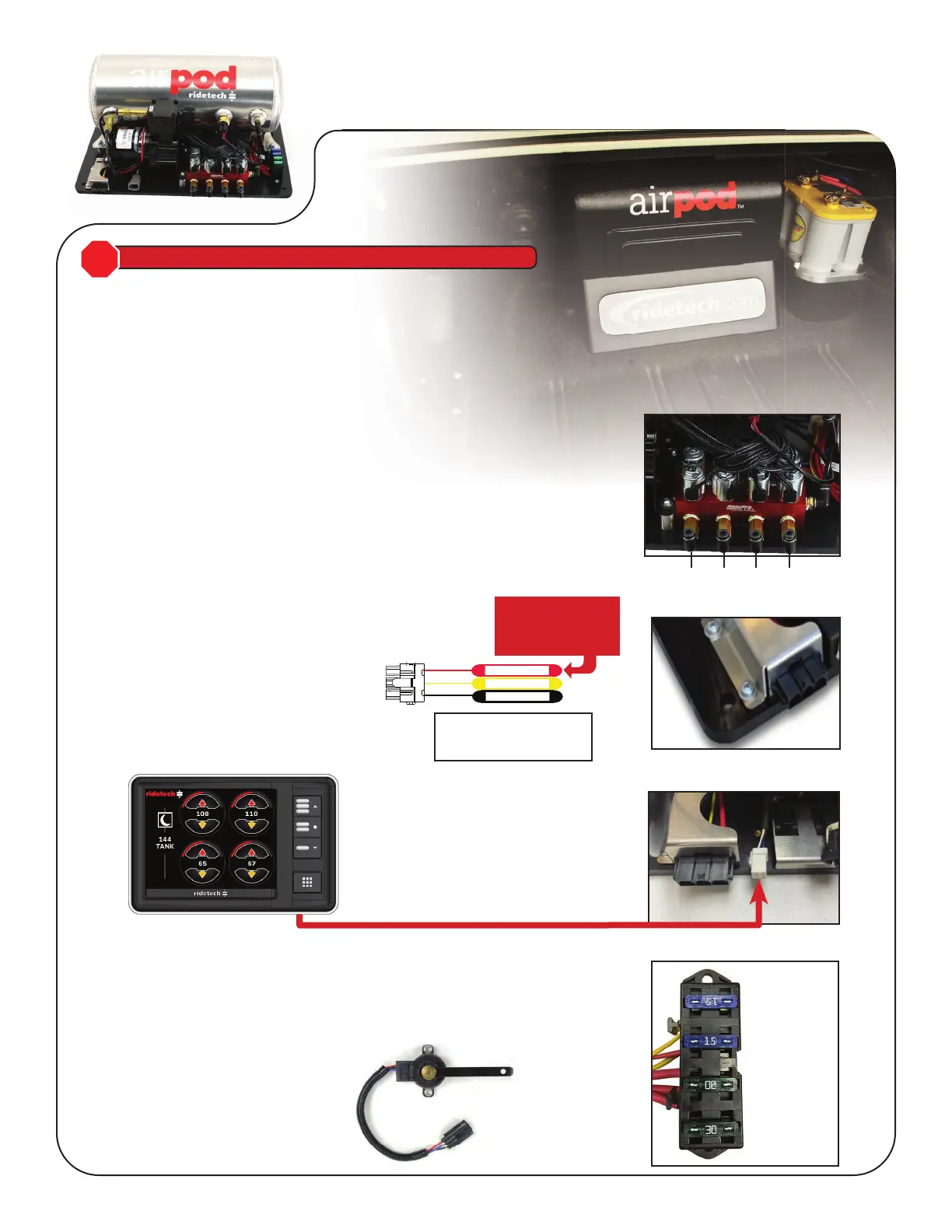

Installing an AirPod
Remove the negative battery cable before beginning installation.
STOP
RF LF RR LR
CONNECT THE DISPLAY/CONTROLS
See control programming and additional features section for more
information on using the control panel.
Required airline hookup.
SWITCHED 12V
CONSTANT 12V
COMPRESSOR
5 Gallon only
COMPRESSOR
AirPod Fuse Block
Display hookup
Power Harness Hookup
To Next Page
