Riedex DM-250 - 7 S Pare Parts

23
1
32
1
0
9
5
11
8
3
11
1
6
2
e-mail info@riedex.nl
www.riedex.nl
RIEDEX
Hoofdstraat 17
8811 HD RIED
fax 0517-269366
tel. 0517-269241
Dust extraction system

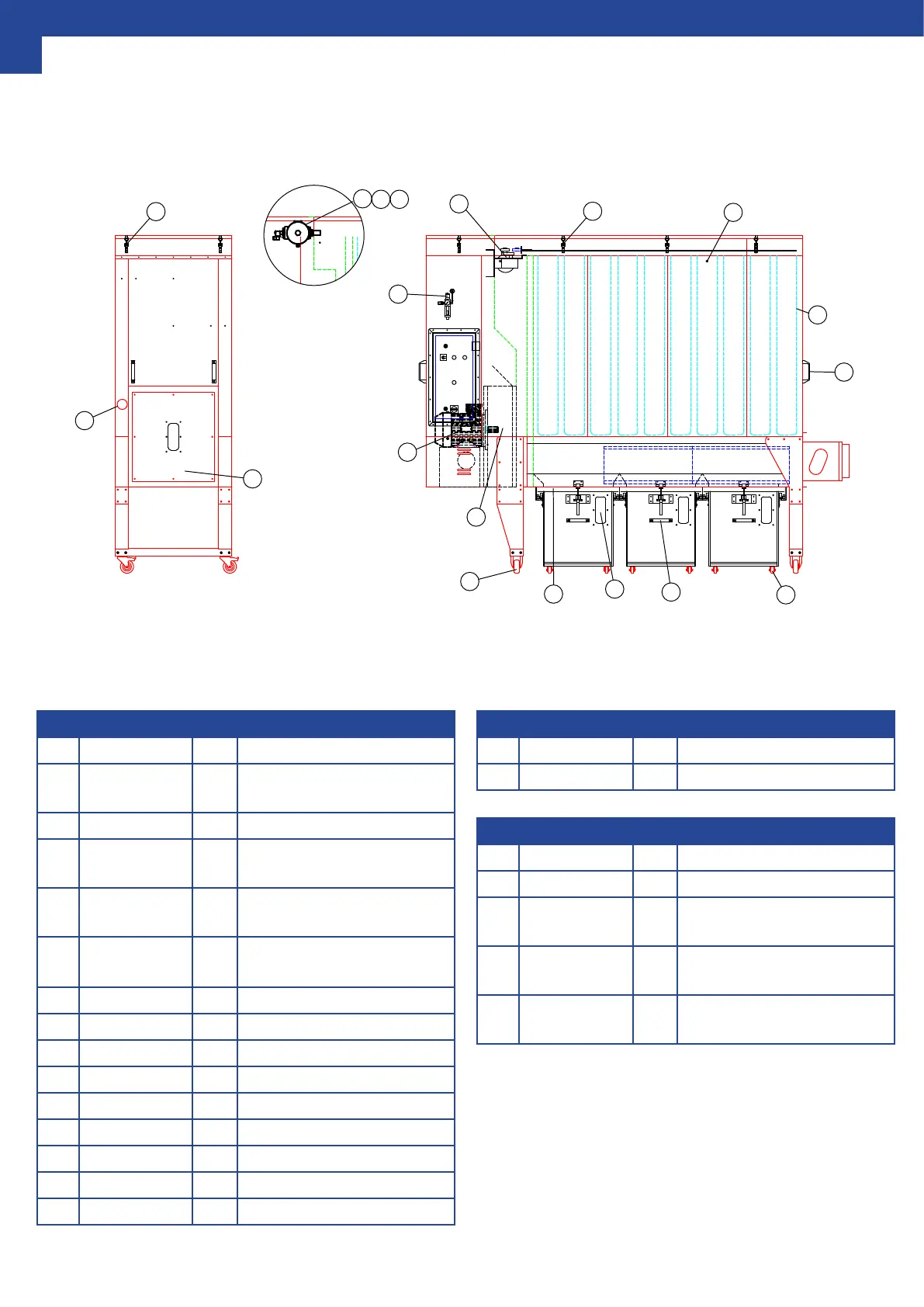

Onderdelentekening DM-250
10
4
10
12
13
15
19
16
17 18
All versions
Pos Item no. Pce. Description
01 F 160.370
1 2-pin three-phase motor
7,5 kW B5/1/2 M
02 F 161.380 1 RRD-250 Fan
03 B 134.020
40 PE/PE 354/90 PZZ DN 155
x 1050 Filter sleeve
04 F 162.100
1 Dwyer ADPS-05-2-N die-
rential pressure switch
05 F 160.250
12 Ø 50x19/40 kg wheel for
collection bin
06 F 160.251 2 Ø 80 braked swivel wheel
07 F 160.252 2 Ø 80 xed wheel
08 F 168.999 3 Viewing window
09 C 460.041 3 Edge softener
10 F 161.400 12 Locking mechanism
11 F 161.320 7 Plastic handle
12 F 161.321 40 Spiral spring
13 F 161.325 1 Inspection cover
20 F 161.326 3 Handle
Only for DM 250/M
Pos Item no. Pce. Description
15 F 169.500 1 Vibration motor
Only for DM 250/P
Pos Item no. Pce. Description
16 F 169.600 1 Compressed air tank 6"
17 F 169.601
2 Solenoid valve 1/2"
(not depicted)
18 F 169.602
2 Bobbin for valve
(not depicted)
19
F 169.603
1 Filter pressure regulator
LFR-1/2-D
7.0 spare parTs
sparE parts
