annEx 2: pnEumatIc schEdulE comprEssEd aIr clEanIng

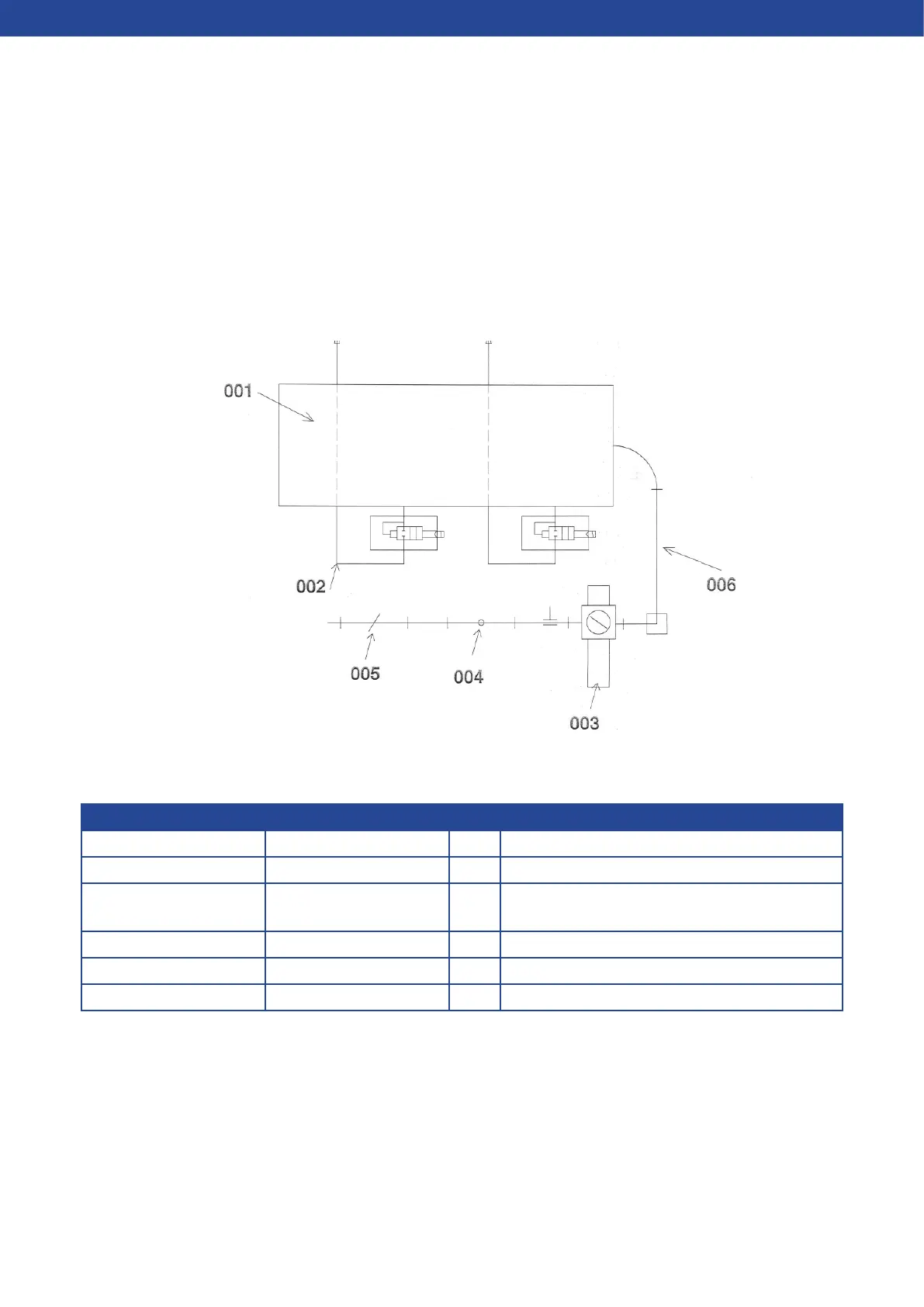

Pneumatic schedule compressed air cleaning (only for DM-250/P)
Compressed air tank
Contents: 9,4 liter
Max. Boundary pressure: 8 bar
Operational pressure: 6 bar
Depressurizing compressed air cleaning
1. Close the ball valve.
2. Loosen the vent screw until compressed air escapes.
3. When the pressure gauge is at 0 and no more compressed air
escapes, the system (tank, valve and pipe) is completely empty.
4. Close the vent screw.
Pos. Item no. Pce. Description
001 F200.001 1 Compressed air tank
002 F200.002 2 C25DD 1" 224 VD MECAIR solenoid valve
003 F200.003 1 NL G½" lter pressure regulator with
pressure gauge
004 F200.004 1 Ball valve ½"
005 F200.005 1 ½" brass check valve
006 F200.006 Nylon hose 6 mm
