Riello 40 FS5 - Securing Burner to Boiler; Probe and Electrode Positioning

20147064
14
GB
Installation

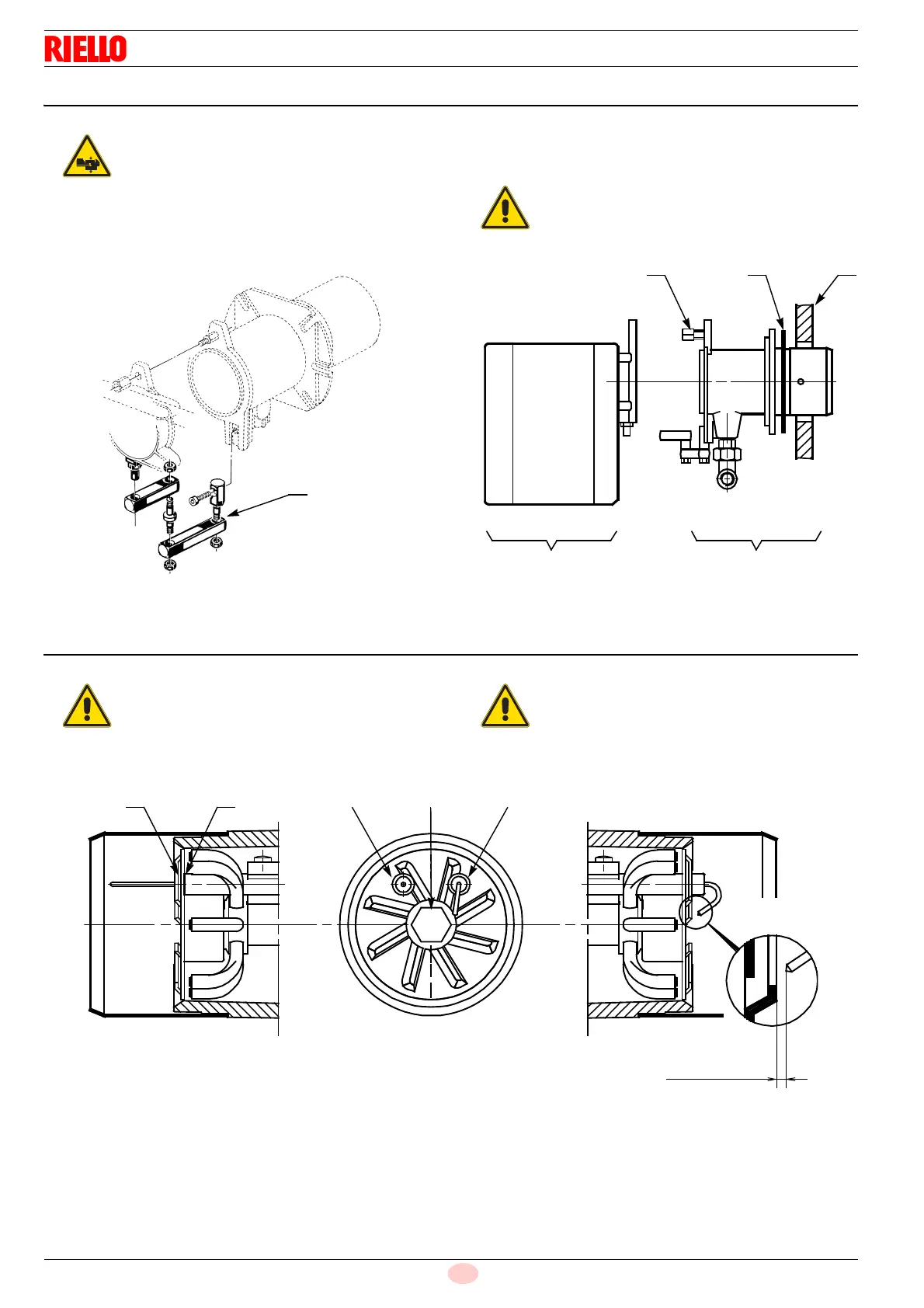

5.6 Securing the burner to the boiler
5.6.1 Hinge installation
Install the hinge 4), supplied as standard, as shown in Fig. 8.
 Separate the combustion head assembly from the burner
body by removing nut 1) and removing the group A)(Fig. 9).
 Fix the group B)(Fig. 9) to the boiler plate 2), inserting the
supplied insulating gasket 3).
5.7 Positioning the probe - electrode
Provide an adequate lifting system of the burner.
S7392
Fig. 8
4
WARNING
The seal between burner and boiler must be
airtight.
D5067
Fig. 9
AB
1 3 2
WARNING
Do not turn the ignition electrode but leave it as
shown in Fig. 10.
if the ignition electrode is put near the ionisation
probe, the control box amplifier might be dam-
aged.
WARNING
Place the ceramic part of the electrode A) against
the diffuser disc B)(Fig. 10).
Fig. 10
D5033
ElectrodeDiffuser
2.5 - 3.5 mm
Probe
Probe
Electrode
2.0
B A
