PRODUCT DESCRIPTION
WATER PRESSURE DROP ARRAY AR 500 SE
0 1000 2000 3000 4000 5000 6000
0
200
400
600
800
1000
1200
0
5
10
15
20
25
30
35
40
45
50
0 5 10 15 20 25 30
Q [l/h]
H [fr]
H [mbar]
Q [US gpm]

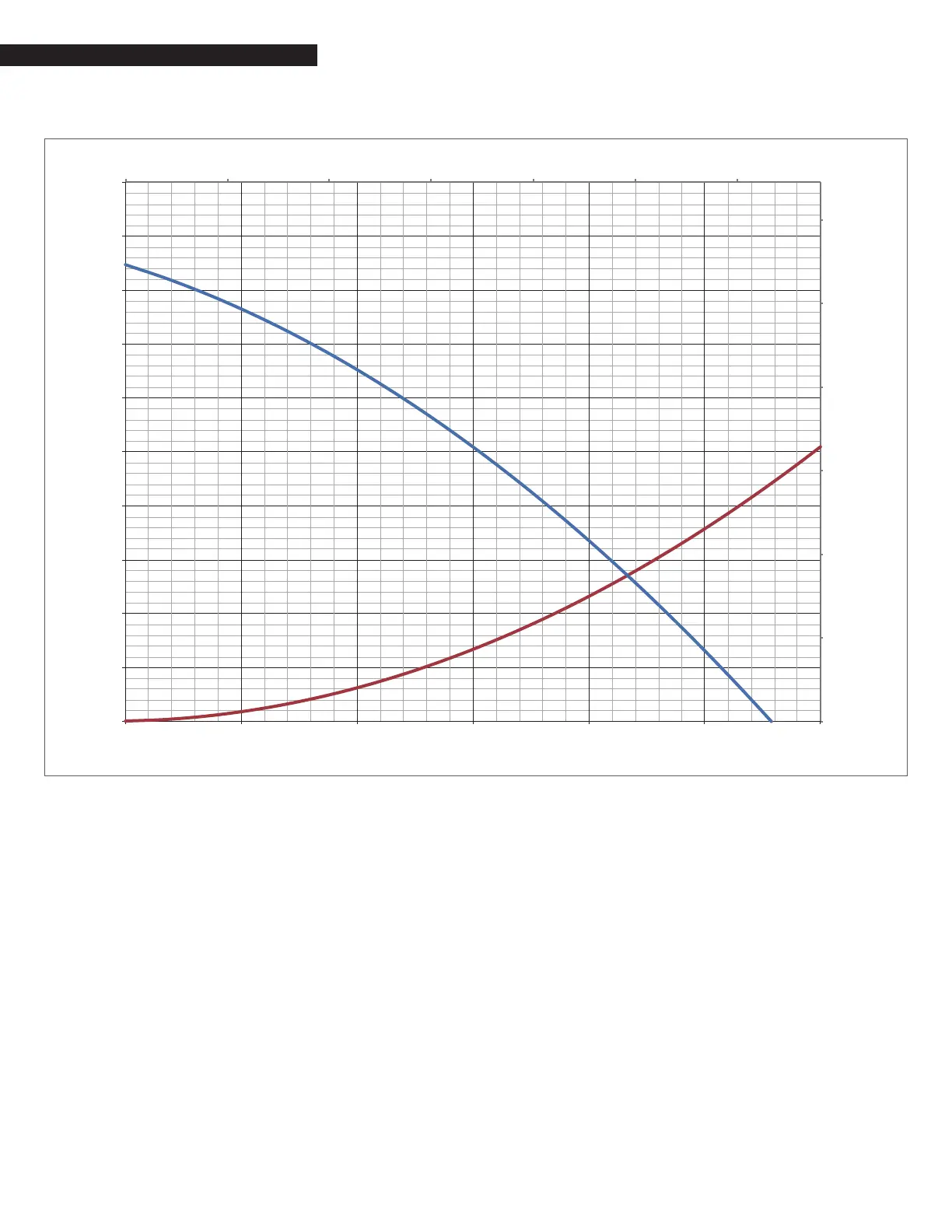

Fig. 8 Water pressure drop Array AR 500 SE
