RECYCLING AND DISPOSAL
67
APPENDIX
APPENDIX

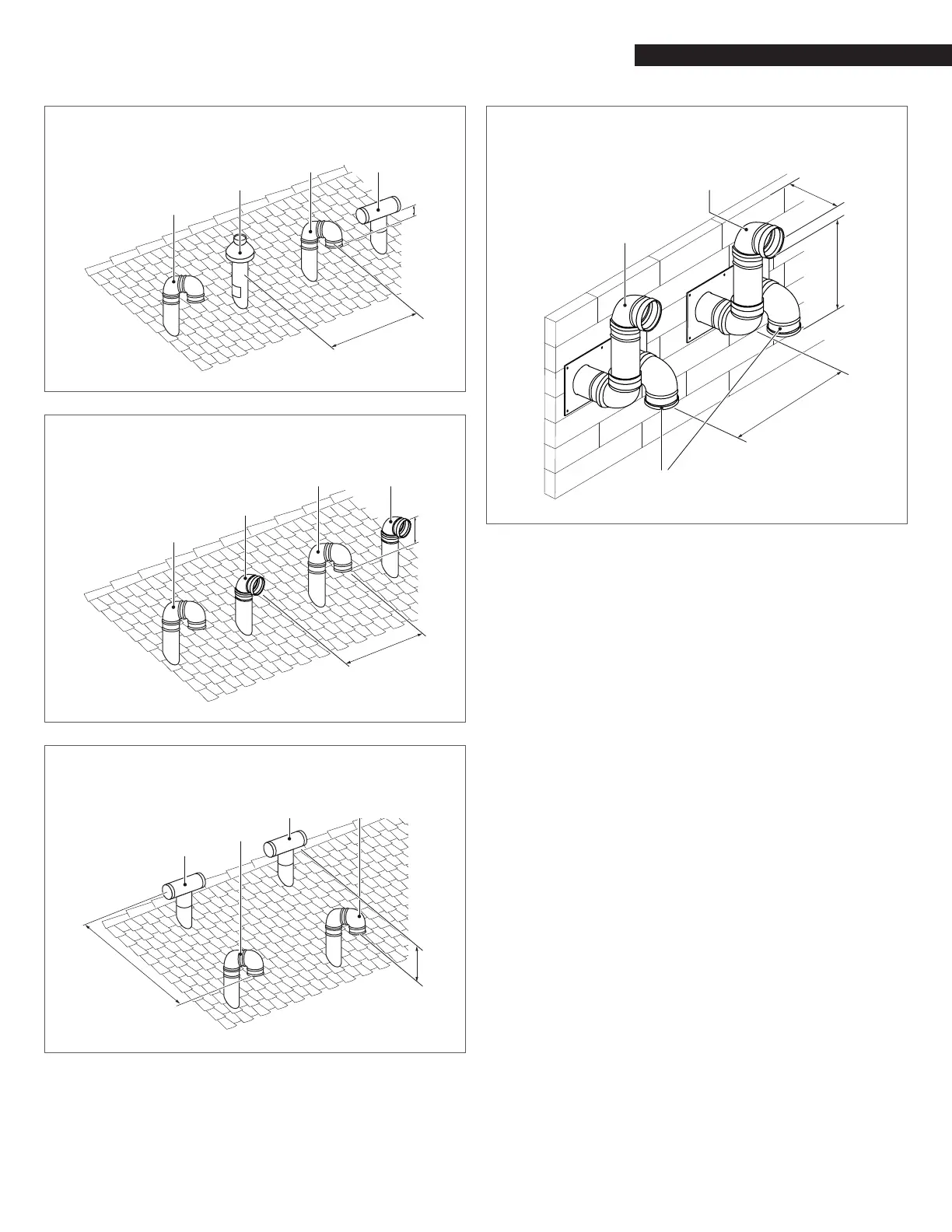

Multiple air and vent vertical terminations; X ≥ 12" (305 mm);
Y≥ 12" (305 mm)
X
Air intake
Air intake Vent
Y
Vent
Multiple air and vent vertical termination; X≥ 12" (305 mm);
Y≥ 12" (305 mm)
Air intake
Vent
Air intake Vent
X
Y
Multiple air and vent vertical termination; X ≥ 12" (305 mm);
Y≥ 12" (305 mm)
Air intake
Y
Vent
Air intake
Vent
X
Multiple air and vent vertical termination ; X≥ 12" (305 mm);
Y≤ 25" (635 mm); Z = 12" (305 mm) to 16" (406 mm)
Vent terminals
Z
Y
Vent terminals
X
Air intake
