Riello F3 - TECHNICAL DATA - Model F3; Specifications

C6501010 STANDARD F3-5 MANUAL Rev. 3-2 10/12/2006
3
B
A
E
E1
F
C
D

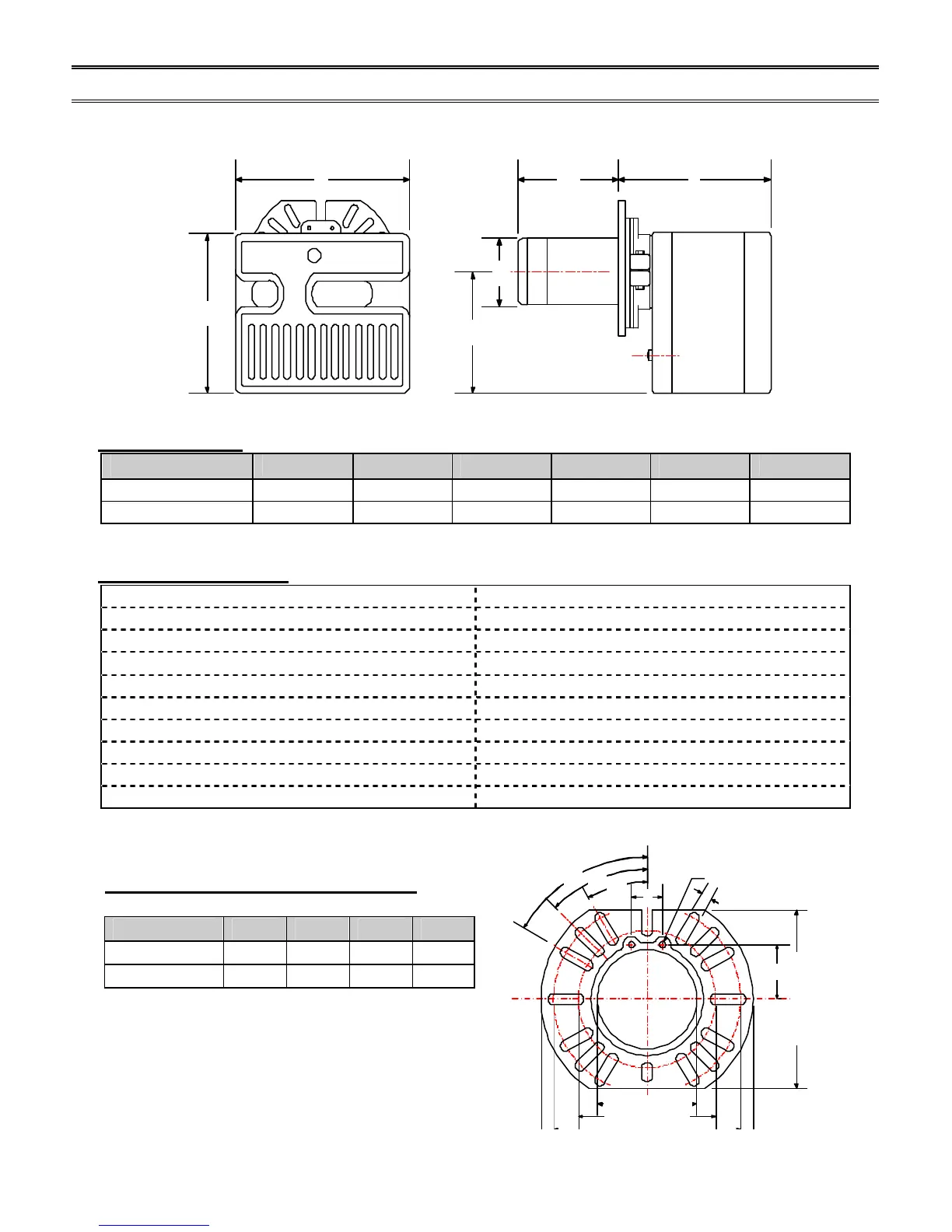

RIELLO 40 F3 TECHNICAL DATA
DIMENSIONS
MODEL F3 A B C D E F
Inches
8 15/32 9 59/64 6 15/32 3 1/2 6 8 29/32
mm
215 252 164 89 152 226
E1: 10-inch long (254mm) tubes are also available.
SPECIFICATIONS
FUEL: No. 2 Fuel Oil
FIRING RATE: 0.50 to 0.95 US GPH
EFFECTIVE OUTPUT: 70,000 to 133,000 BTU/h
VOLTAGE (Single Phase): 120V 60Hz (+ 10% - 15%)
ABSORBED ELECTRICAL POWER: 264 Watts
MOTOR (rated): 3250 rpm Run Current 2.2 AMP
CAPACITOR: 12.5 Microfarads
PUMP PRESSURE: 130 to 200 psig
PRIMARY CONTROL: RIELLO 530 SE/C
IGNITION TRANSFORMER: 8kV 16mA
MOUNTING FLANGE DIMENSIONS
MODEL F3 A B C D
Inch
1 1/4 1/4 7/16 2 3/16
mm
32 6 11 56
30º
45º
60º B
C
3 31/32" - 101mm
5 1/2" - 140mm
7 1/2" - 190mm
D
7 3/32" - 180mm
A
