Riello F3 - INITIAL SET-UP

C6501010 STANDARD F3-5 MANUAL Rev. 3-2 10/12/2006
5

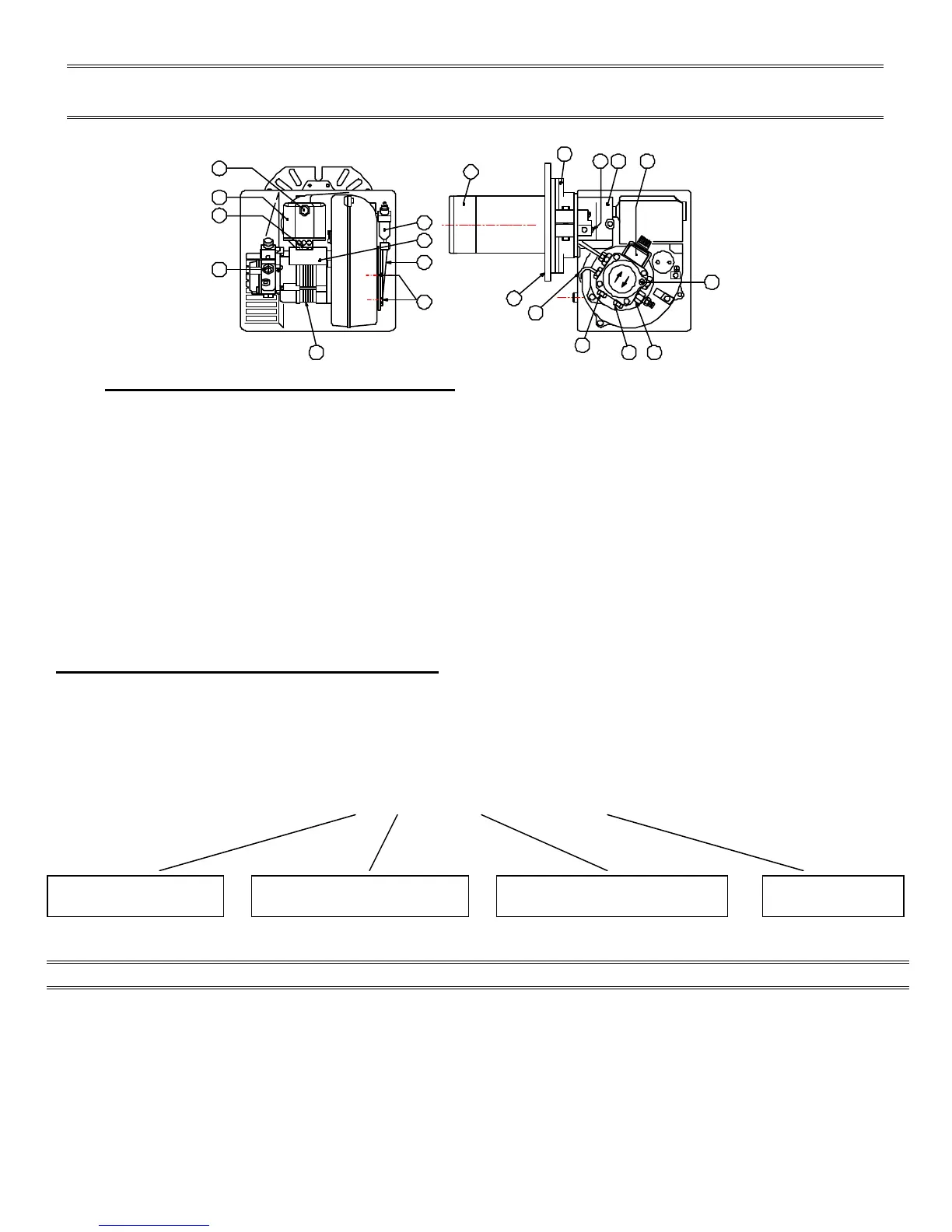

OIL BURNER COMPONENTS IDENTIFICATION
RIELLO 40 SERIES
F3 & F5 BURNER COMPONENTS
1. Lockout indicator lamp and reset button 11. Semi Flange
2. Primary control 12. Turbulator adjustment screw
3. Primary control sub-base 13. Air tube cover
4. Pump pressure regulator 14. Coil
5. Motor 15. Vacuum gauge port
6. Air adjustment fixing screws 16. Pressure gauge and bleeder port
7. Hydraulic air shutter 17. Return fuel line port
8. Capacitor 18. Supply fuel line port
9. Hydraulic Jack (optional) 19. Capillary tube
10. Combustion Head 20. Mounting flange with gasket
SERIAL NUMBER IDENTIFICATION
The Riello 15 character serial number, example, 99 A 8511111 00025, is identified as follows:
99 = last two digits of the year of manufacture; A = BI-week of manufacture; 8511111 = burner product code;
00025 = increment of 1 for each burner produced – specific to product code – reset to zero each January 1
st
.
(99) (A) (811111) (00025)
Year of manufacture BI-week of manufacture Burner product code Increment
INITIAL SET-UP
A) Remove burner and air tube from cartons. Check parts list (inside cover) to ensure all parts are present.
B) Remove burner cover by loosing the three screws securing it. Remove control box and air tube cover (see
page 8).
C) Remove drawer assembly from air tube, insert nozzle and set Turbulator adjustment for specific input
required (see pages 8 & 9), then set aside.
D) Mount air tube to burner chassis (see next page).
1
2
3
4
5
6
7
8
9
20
19
18
17 16
15
141312
11
10
