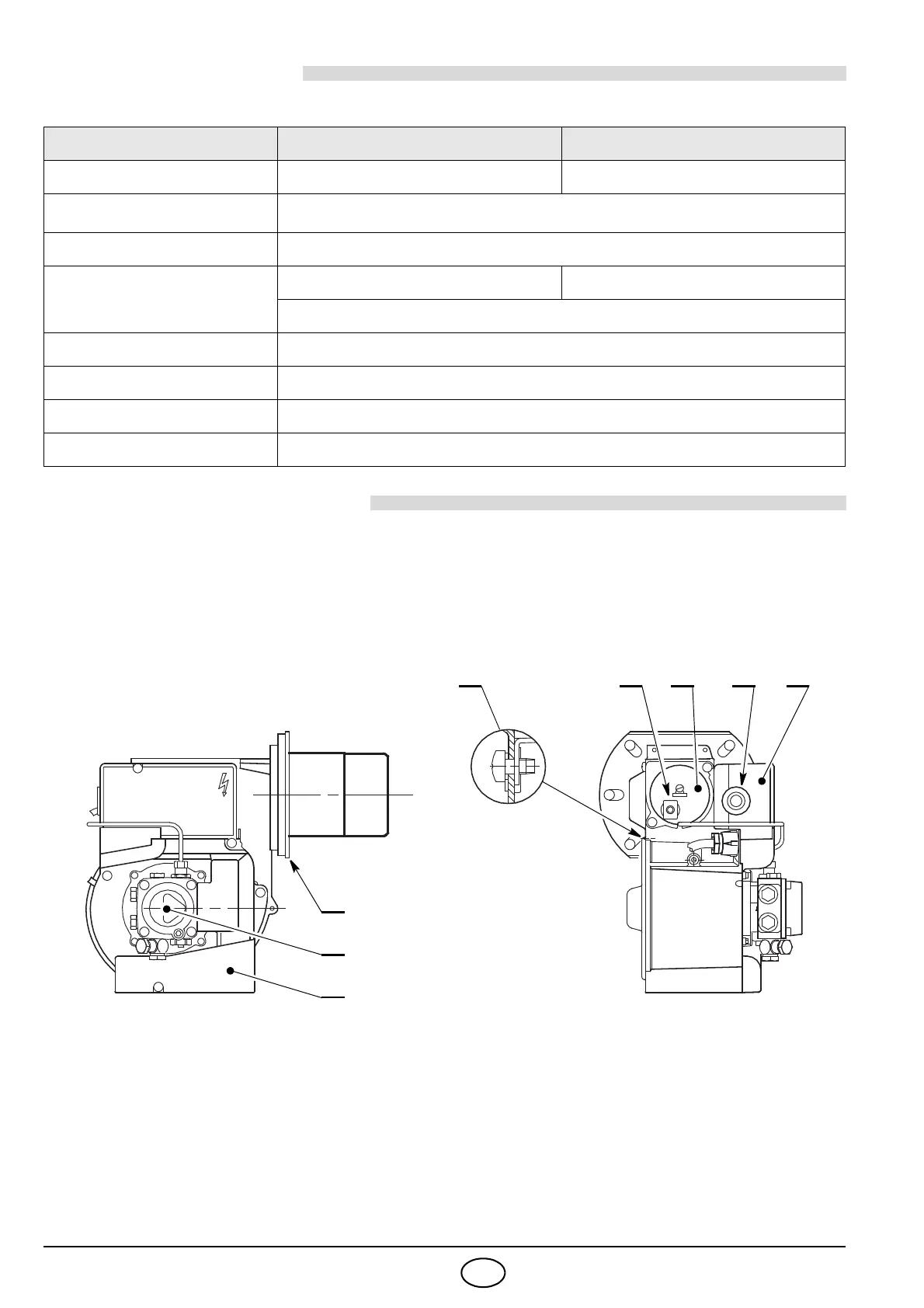

1. TECHNICAL DATA
1.1 TECHNICAL DATA
2. BURNER DESCRIPTION
One stage light oil burner.
O
Burner with CE marking in conformity with EEC directives: EMC 2004/108/EC, Low Voltage 2006/95/EC,
Machines 2006/42/EC and Efficiency 92/42/EC.
O
The burner meets protection level of IP X0D (IP 40), EN 60529.
O
CE Certification No.: 0036 0342/03 as 92/42/EEC.
2.1 BURNER EQUIPMENT
Flexible pipes with nipples. . . . . . . . No. 2 Flange with insulating gasket. . . . . . . . . . . . . . . . . No. 1
TYPE 721T 722T
Output - Thermal power 1.8 – 3.2 kg/h - 21 – 38 kW 2.3 – 5 kg/h - 27 – 60 kW
Fuel
Light oil, viscosity 4 –
6 mm
2
/s at 20 °C
Electrical supply Single phase 230V ± 10%
~
50Hz
Motor Run current 0.7A Run current 0.75A
2750 rpm – 289 rad/s
Capacitor 4 F
Ignition transformer Secondary 8 kV - 16 mA
Pump Pressure: 8 – 15 bar – min. output 22 kg/h
Absorbed electrical power 0.17 kW
1 – Flange with insulating gasket
2 – Air damper
3 – Photoresistance
4 – Nozzle holder assembly
5 – Reset button with lock-out lamp
6 – Control box
7 – Oil pump
8 – Protection crankcase
Fig. 1
2 3 4 5 6
8
D6308
7
1
