Riello RS 300/E LN - Opening the Burner; Closing the Burner

20008423
34
GB
Maintenance
6.3 Opening the burner
Disconnect the electrical supply from the burner
 Remove the tie rod 1) (Fig. 42) of the head movement lever,
loosening nut 2).
 Disconnect the gas servomotor test point 3).
 Disconnect the gas pressure switch test point 4).
 Remove screws 5).
At this point it is possible to open the burner at the hinge.
6.4 Closing the burner
 Close the burner at the hinge.
 Apply screw 5).
 Connect the gas pressure switch test point 4)..
 Connect the gas servomotor test point 3).
 Apply the tire rod 1) (Fig. 42) of the head movement lever,
loosening nut 2).
Connect the electrical supply from the burner.
DANGER
5
5
1
2
5
5
3 4

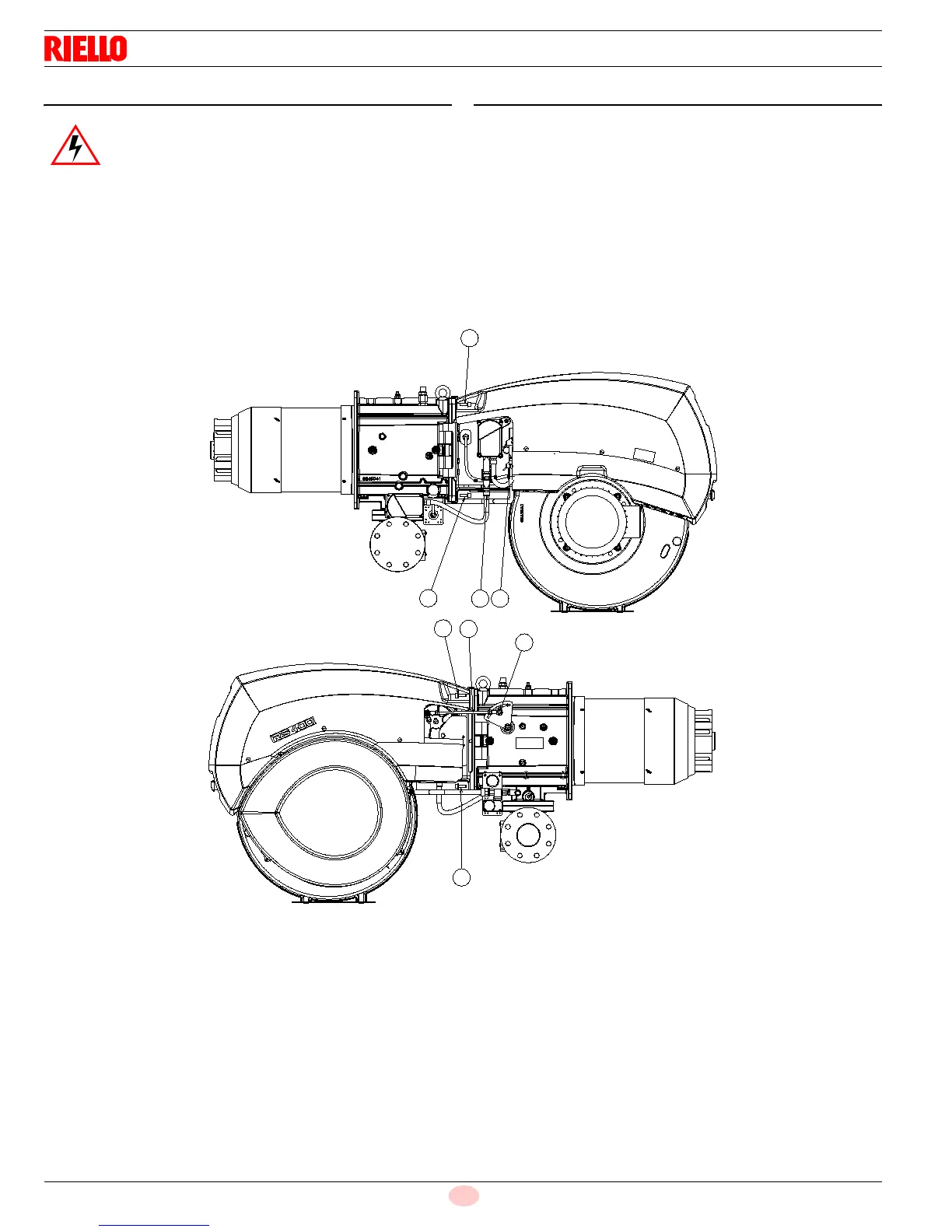

Fig. 42
D3818
